Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | Transmission Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Containers |
Delivery Time: | 30-35 days after deposit |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 50000 Metric Ton/Metric Tons Per Year |
Material: | Steel Q235,Q345 Or Others | Name: | Lattice Steel Towers Power Transmission Line |
---|---|---|---|
Usage: | Transmission Line Tower | Application: | Construction Works |
Life: | At Least 30 Years | Voltage Capacity: | 10KV-700KV |
High Light: | 500KV Lattice Steel Tower,130KV Lattice Steel Tower,Power Transmission 33KV Tower |

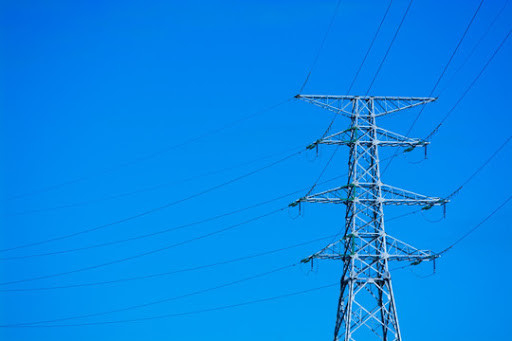

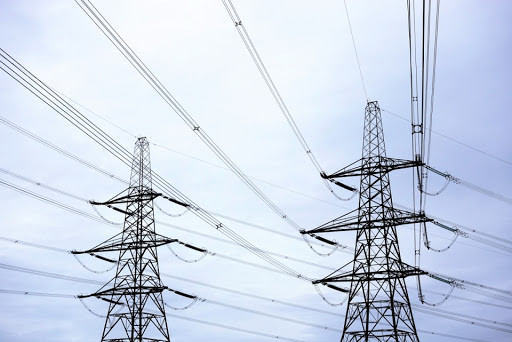

33kv 130kv 500kv Lattice Steel Towers Power Transmission Line
Fabrication Shop
Based on the Customer Drawing, we can fabricate all kind of good quality steel structure product with full of equipment: Welding; Punching; Pushing; Drilling; Rolling; Cutting; CNC; Auto Robot...machine and experienced worker
Hot dip galvanized Shop
Cooperate with Japan Company, we controled the Hot dipped galvanizing Technology with high capacity (200-300 MT/day) and really good quality in accordance with international standards: ASTM A123; JIS H8641
We are leading Chinese Tower manufacturer which have 15 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 20 countries over the decades.
Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
Product | Steel Structure Tower |
Height | 5m to 30m or other height customer requirement |
Suit for | Electric Power Distribution Transmission Steel Tower |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52 |
Strength | 2.5KN,5KN,8KN,10KN,12KN |
Torlance of the dimenstion | +- 2% |
Optical assembly of lighting fixture | IP 65 |
Electroshock resistant protective grade | Grade I |
The casing anti-corrosion performance | Class II |
Working atmosphere of lighting fixture | -40 ºC~+45 ºC |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160km/hour |
Minimum yield strength | 335mpa |
Minimum ultimate tensile strength | 400mpa |
Max ultimate tensile strength | 620mpa |
Standard | ISO9001 |
Length of per section | Within 14m once forming without slip joint |
Welding | We have passed flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard : AWS ( American Welding Society ) D 1.1 |
Thickness | 1mm to 30mm |
Production Process | Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages |
Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can follow by client required, each 40HC or OT can loading how many pics will calculation base on the client actually specification and data. |
Style | Size and styles are variable as per customer request |
