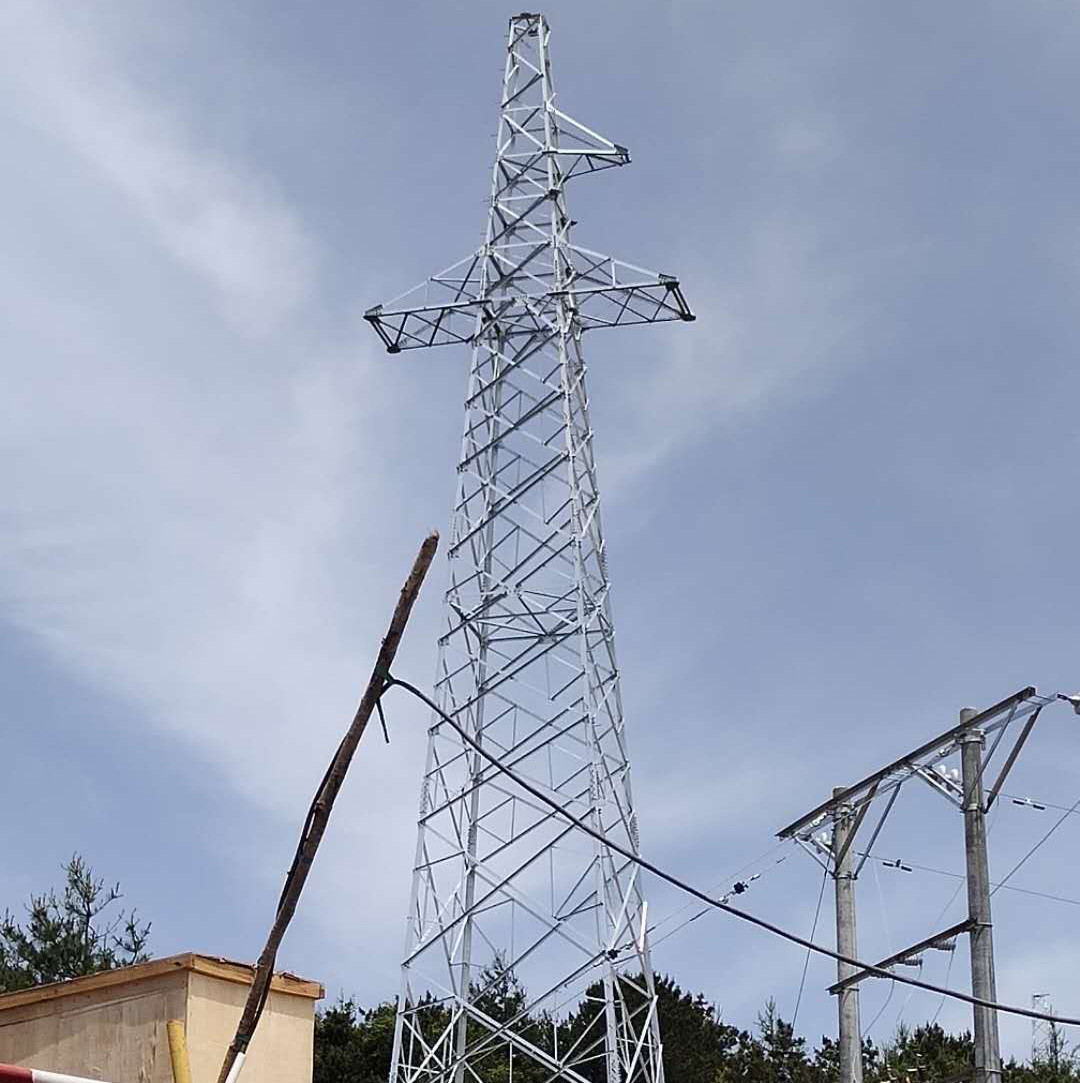

110kV 132kV 4 Legged Angular Steel Cellular Transmission Tower

110kV 132kV 4 Legged Angular Steel Cellular Transmission Tower

  • 110kV 132kV 4 Legged Angular Steel Cellular Transmission Tower
  • 110kV 132kV 4 Legged Angular Steel Cellular Transmission Tower
110kV 132kV 4 Legged Angular Steel Cellular Transmission Tower
Product Details:
Place of Origin: China
Brand Name: Suntech
Model Number: Cellular Transmission Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the newest price
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Certification: ISO Material: Steel Q355/Q255
Name: Steel Tower Cellular Transmission Tower Voltage: 10KV-1000KV
Surface Treatment: Hot Dip Galvanised Application: Electric Tower Site
High Light:

Angular Steel Cellular Transmission Tower

,

4 Legged Cellular Transmission Tower

,

132kV 4 Legged Tower

110kV/132kV Electric 4 Legged Angular Steel Tower Cellular Transmission Tower



Suspension Towers
Mainly the Suspension towers are on the way of that straight line of transmission line . It may also vary maximum to degree of 5 angle . The high voltage suspension towers are design to carry the only weight of the conductor in straight line position.Most of towers in any transmission line is fall into this type of tower category and construction cost of suspension type transmission lines are much cheaper compare to other types of transmission lines.These type of towers are used on the lines for straight run or for small angle of deviation up to 2° or 5° . Conductor on suspension towers may be supported by means of I-string, V- string or the combination of I & V strings.



Tension Towers (Angle)
Electrical Tension towers are used at locations where the angel of deviation is more than degree of 5. These towers are also known as angle towers and the tower are designed to take the tension load of the cable. Tension towers are mostly use for turning points and for the section isolate locations.



Product Parameters
Material Steel Q235B/Q345B/Q420
Quality Control ISO/GB
Voltage Grade Normally 35KV, 66KV, 110KV, 220KV
Surface Treatment Hot Dip Galvanization
Color Sliver
Connection Bolts and Nuts
Usage Power transmission and distribution
Quality Standard ISO9001:2008
Welding Standard AWSD1.1
Galvanization Standard ASTM123
Available Height 5-80 m
Wind Pressure 5-180KM/H



110kV 132kV 4 Legged Angular Steel Cellular Transmission Tower 0
