Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | Power Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Get the lastest price |
Packaging Details: | Exported Containers |
Delivery Time: | 20-30 days after deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 90000 Metric Ton/Metric Tons Per Year |
Material: | Steel Q345/Q245 | Name: | Steel Tower Lattice Transmission Tower |
---|---|---|---|
Voltage Capacity: | 10KV-1000KV | Usage: | Overhead Line |
Line: | High Voltage | Application: | Transmission Line |
High Light: | Angular Steel Lattice Transmission Tower,132kV Lattice Transmission Tower,110kV 4 Legged Tower |

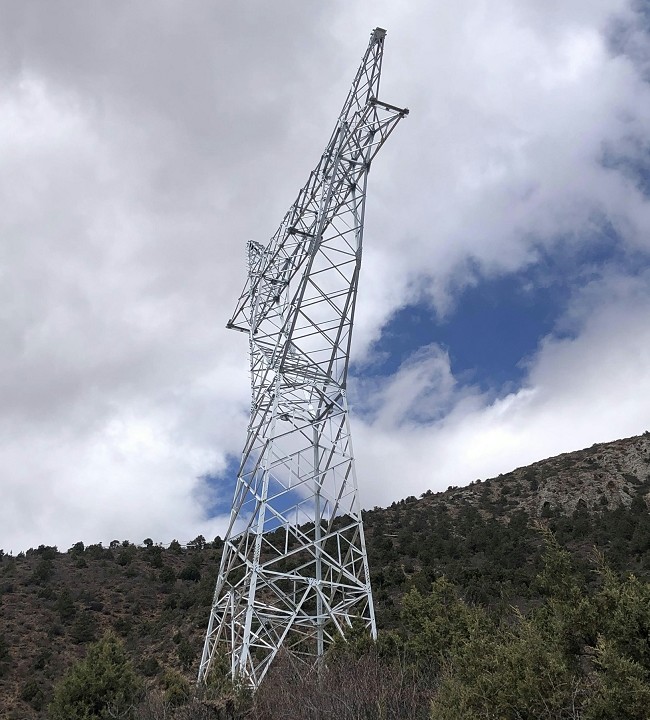

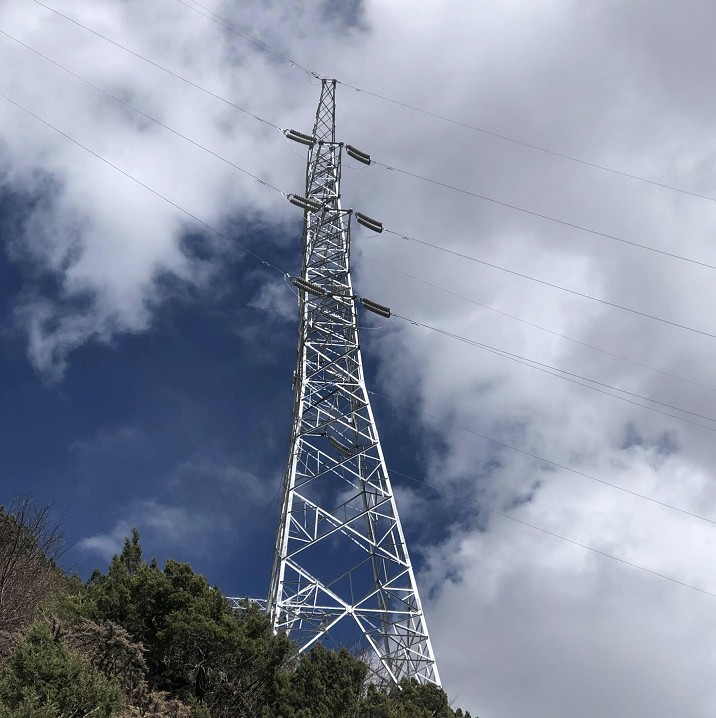

110KV/132KV 4 Legged Electric Angular Steel Tower Lattice Transmission Tower
Transmission lines tower are either monopolar or bipolar systems. With bipolar systems, a conductor arrangement with one conductor on each side of the tower is used. On some schemes, the ground conductor is used as electrode line or ground return. In this case, it had to be installed with insulators equipped with surge arrestors on the pylons in order to prevent electrochemical corrosion of the pylons. For single-pole Suntech transmission with ground return, towers with only one conductor can be used. In many cases, however, the towers are designed for later conversion to a two-pole system. In these cases, often conductors on both sides of the tower are installed for mechanical reasons. Until the second pole is needed, it is either used as electrode line or joined in parallel with the pole in use. In the latter case, the line from the converter station to the earthing (grounding) electrode is built as underground cable, as overhead line on a separate right of way or by using the ground conductors.
Electrode line towers are used in some Suntech schemes to carry the power line from the converter station to the grounding electrode. They are similar to structures used for lines with voltages of 10–30 kV, but normally carry only one or two conductors.
AC transmission towers may be converted to full or mixed Suntech use, to increase power transmission levels at a lower cost than building a new transmission line.
Height | From 10M-100M or according to client’s requirement |
Suit for | Electric Power Transmission and Distribution |
Shape | Polygonal or Conical |
Material | Normally Q235B/A36,Yeild Strength≥235MPa |
Q345B/A572,Yeild Strength≥345MPa | |
As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 | |
Voltage level | 10kV to 750kV |
Tolerance of the dimension | According to client’s requirement |
Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement |
Joint of Poles | Slip joint, flanged connected |
Standard | ISO9001:2015 |
Length of per section | Within 13M once forming |
Welding Standard | AWS(American Welding Society)D 1.1 |
Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages |
Packages | Packing with plastic paper or according to client’s requirement |
Life Period | More than 30 years, it is according to installing environment |
Contact Person: Peter
Tel: 86-13958364836
