Features

Specifications

Usage: Tightenning

Name: Aluminum Alloy Conductor Gripper For ACSR Come Along Clamp

Material: Aluminum Wire

Rated Load: 7-80KN

Weight: 1.0-18KG

Warranty: At Least One Year

Highlight:

ACSR Cable Conductor Gripper

80KN Conductor Gripper

Aluminum Conductor Gripper

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Newart

Certification: ISO and CE

Model Number: LGJ

Payment & Shipping Terms

Packaging Details: Exported Carton or Package

Delivery Time: Shipped in 7 days after payment

Payment Terms: L/C, T/T

Supply Ability: 2000pcs per month

Gallery

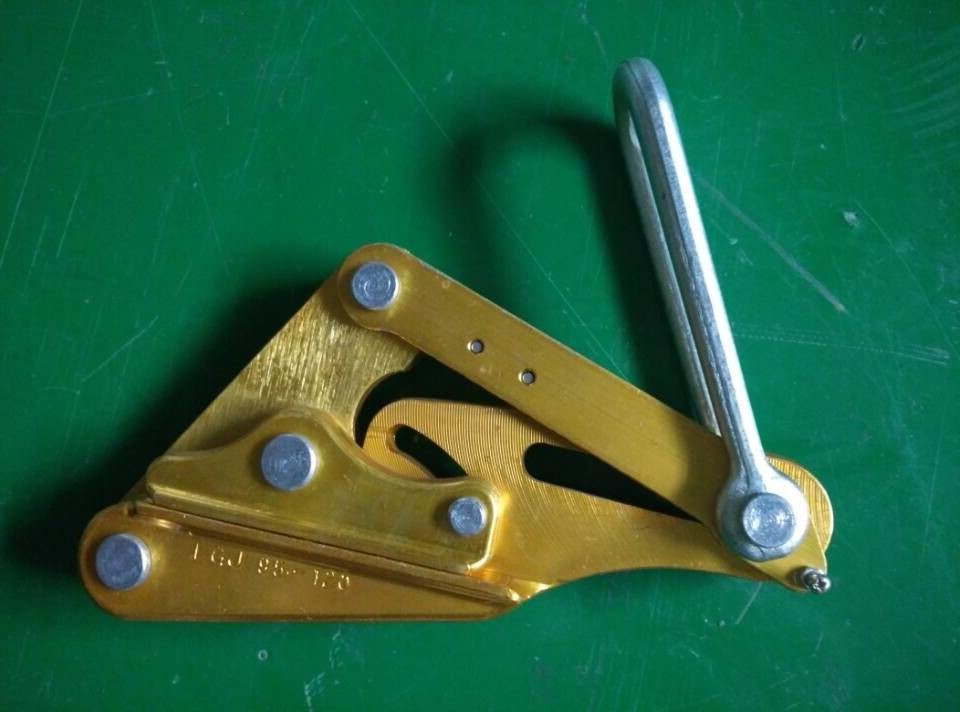

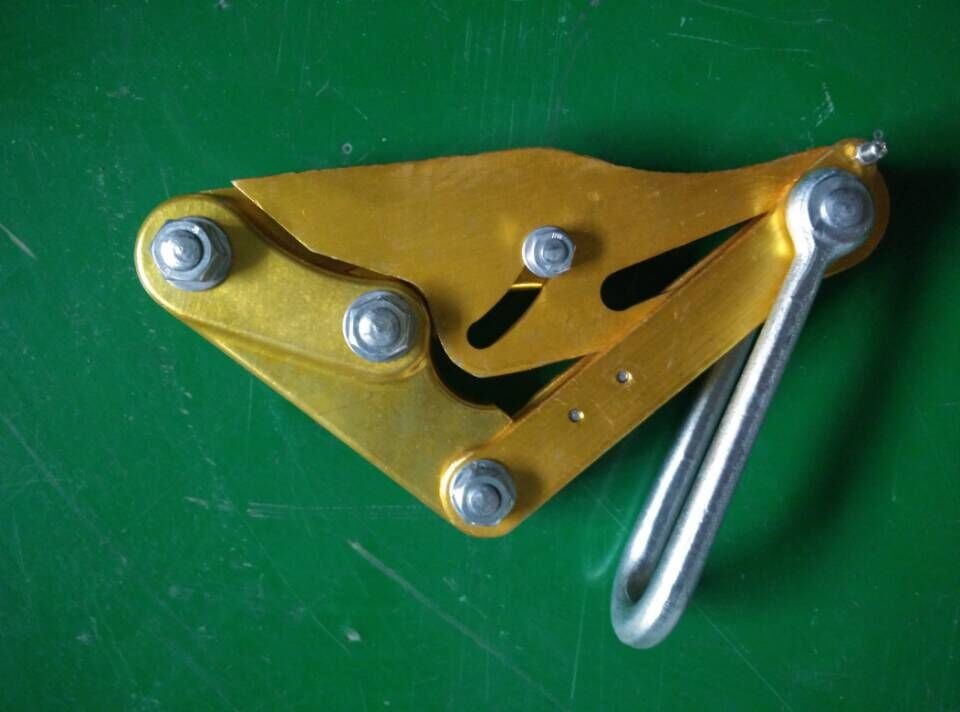

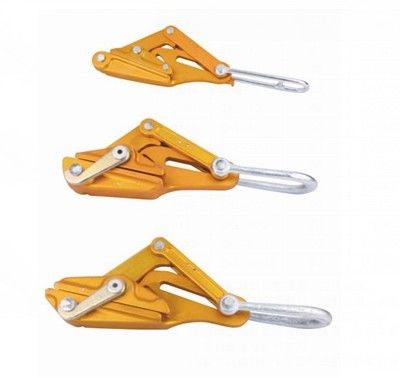

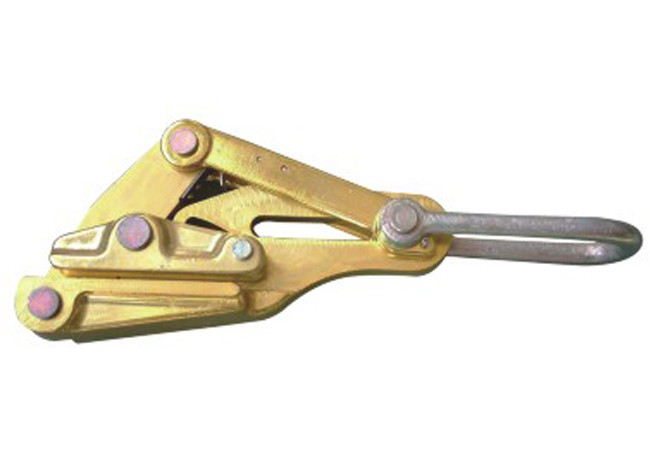

ACSR Cable Conductor Gripper

Product Description

Aluminum Alloy Conductor Gripper for ACSR Come Along Clamp


Conductor Gripper Feature
1. HIT TOOL wire and cable grips are the lightest and most versatile grips available.

2. All wire rope grips feature a safety latch to prevent cable from unintentionally exiting the gripping jaws.

3. Convenient sized and special shaped pulling eyes to suit all brands of wire and strap hoists.

4. All gripping jaws are produced with new technology to increase jaw life.

5. Grips are designed to be used over a wider range of cable diameters
6.Product is forged of high strenth aluminum alloy with smal size and light weight.

Conductor Gripper Applicatoin
Apply to adjusting the sag and tensioning the conductor wire in power lines constructions

Conductor Gripper Specifications










			Item number
			Model
			Rated Load(KN)
			Applicable Conductor
			Max Open(MM)
			Weight(KG)


			13221
			SKL-7
			7
			LGJ25-70
			14
			1


			13222
			SKL-15
			15
			LGJ95-120
			18
			1.4


			13223
			SKL-25
			25
			LGJ150-240
			24
			3


			13224
			SKL-40
			40
			LGJ300-400
			32
			4


			13225A
			SKL-50C
			50
			LGJ500-630
			36
			6.6


			13224A
			SKL-40A
			40
			LGJ400
			32
			4.3


			13225
			SKL-50A
			50
			LGJ500
			34
			7


			13226
			SKL-50B
			50
			LGJ630
			36
			7.3


			13227
			SKL-60
			60
			LGJ720
			38
			9.2


			13228
			SKL-70
			70
			LGJ900
			42
			14


			13229
			SKL-80
			80
			LGJ1000
			45
			18


			13229A
			SKL-80A
			80
			LGJ1120
			48
			18
