Name: IEC 60227 Electrical Grounding Wire
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: Double Tongue Tension or Spriral Compaction
Price: 285,715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Electrical Grounding Wire

Type: Transmission Line Type Or Substation Type, Insulated

Application: Transmission Lines,pwer Plants

Conductor Material: Aluminum Alloy

Conductor Type: High Strength,Good Conductivity

Insulation Material: Plastic Handle,Glass Fiber

Rated Voltage: 10KV 35KV 100KV 200KV 400KV 500KV

Conductor: Solid

Material: PVC Copper

Usage: Security Earth

Feature: Personal Safety

Standard: IEC 60227

Insulation: PVC Insulation Cable

Highlight:

PVC Copper plug earth wire

500KV Electrical Grounding Wire

IEC 60227 Electrical Grounding Wire

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: DongHuan

Certification: ISO

Model Number: Double Tongue Tension or Spriral Compaction

Payment & Shipping Terms

Packaging Details: Exported cartons or cases

Delivery Time: 5-7days after payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300pcs per month

Gallery

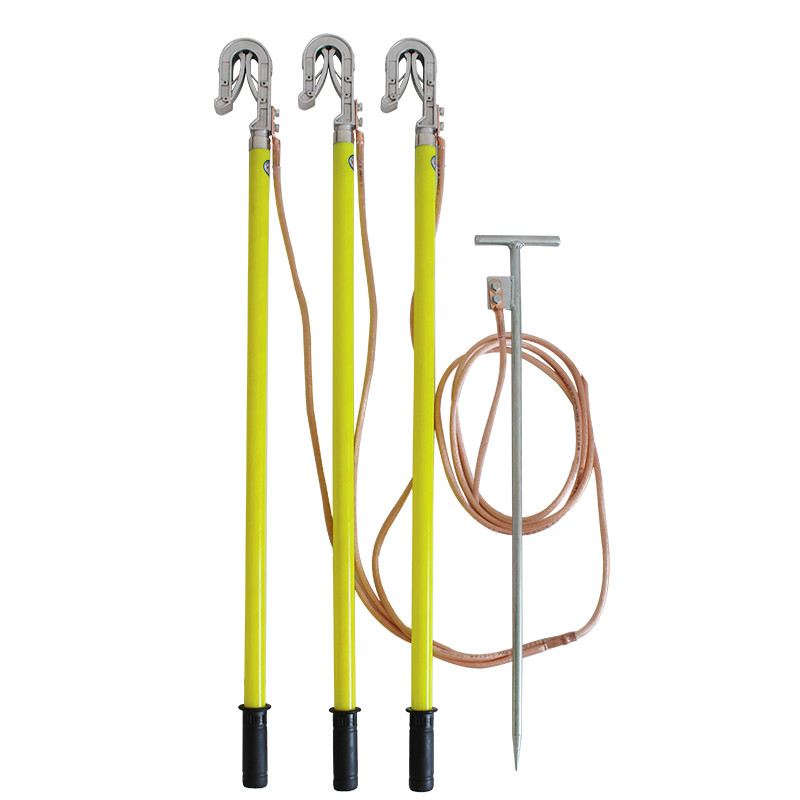

IEC 60227 Electrical Grounding Wire

Product Description

Personal Safety Grounding Equipment Security Earth Wire

It is suitable for transmission lines,power plants and substation equipment,short circuit grounding for power outage maintenance.

Feature

1.Wire clamper with aluminum alloy casting,high strength,good conductivity.

2.The portable short-circuit grounding wire is packed in canvas bag with exported wooden boxes,which is easy to carry and transport

Item No.23012

Double tongue tension(Transmission line type)

Item No.23011

Spiral compaction(Transmission line type)

Item No.23001

Spiral compaction(Substation type)

Grounding Wire Configuration Table:

Voltage class	Ground soft copper wire		Length of Ground Operation Rod (mm)
	(mm2)	(m)	Length of Ground Operation Rod (mm)
	(mm2)	(m)	Insulating	Handheld	Total length
10KV	25	13+7~1.53+20	700	300	1000
35KV	25	1.5*3+18	900	600	1500
68KV	25	1.5*3+20	1000	600	1600
110KV	25,35	9*3	1300	700	2000
110KV	25,35	2*3+20	1300	700	2000
220KV	25,35	9*3	2100	900	3000
220KV	25,35	3*3+25	2100	900	3000
330KV	35,50	123 43+25	3000	1100	4100
500KV	35,50	133~203	4100	1400	5500
220-500KV Overhead ground wire	25	13+7~1.53+20	700	300	1000
High pressure test equipment	35,50	53~103	700	300	1000

The rated value of the copper wire per meter:

Sectional area(mm)	10	16	25	35	50	70	95	120
Wire diameter(mm)	4.2	5.7	7.5	8.78	11	12	16	17
Sheath diameter(MΩ)	7.3	7.8	9.6	11.2	12.6	16.5	21	22
Resistance value(A)	1.98	1.24	0.79	0.56	0.4	0.28	0.21	0.16
Safety current	90	100	123	150	210	238	300	300

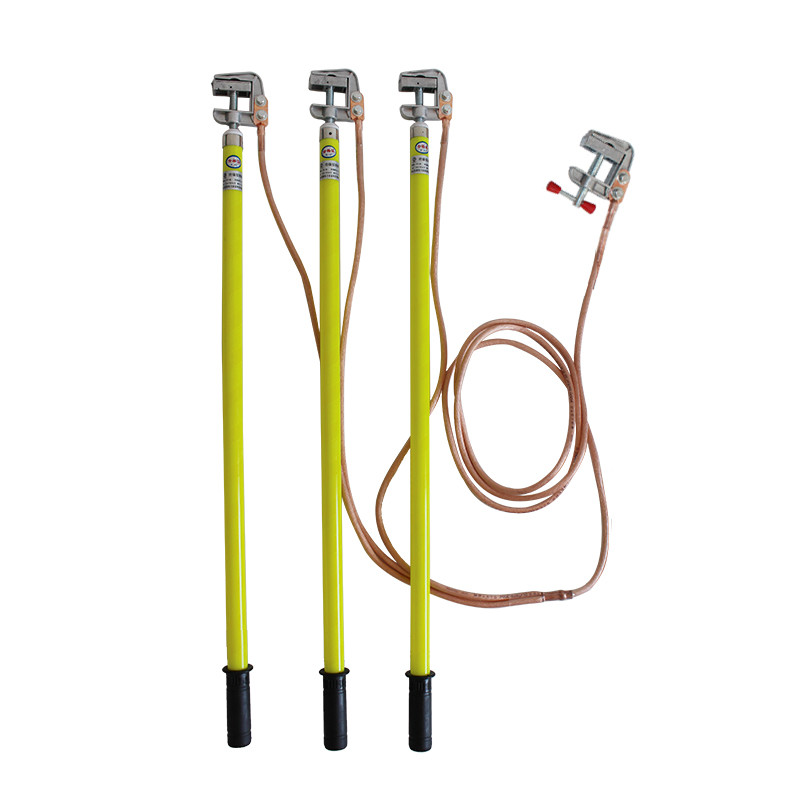

IEC 60227 Electrical Grounding Wire 0

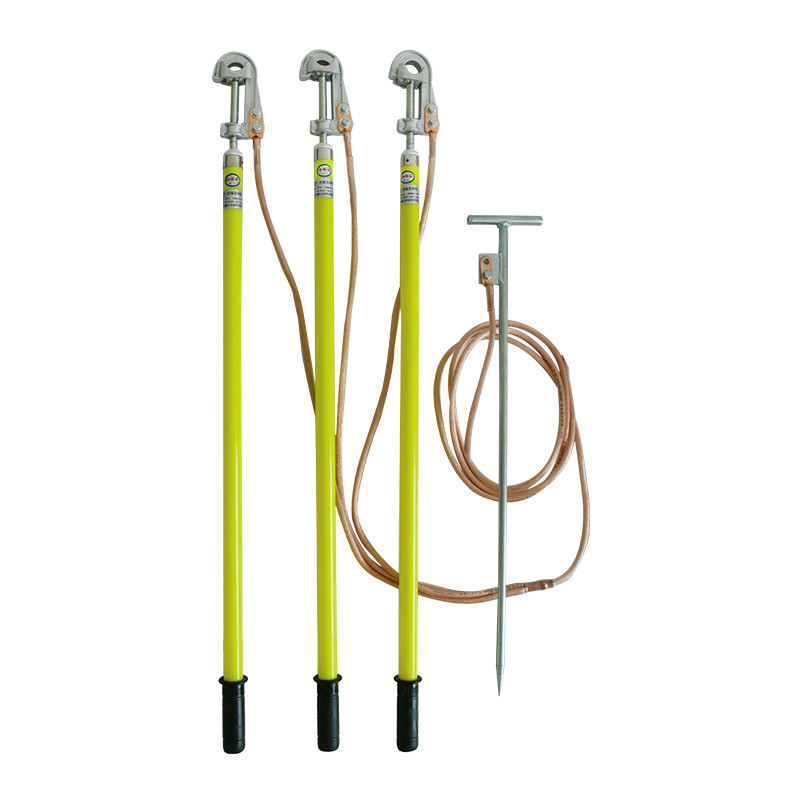

IEC 60227 Electrical Grounding Wire 1

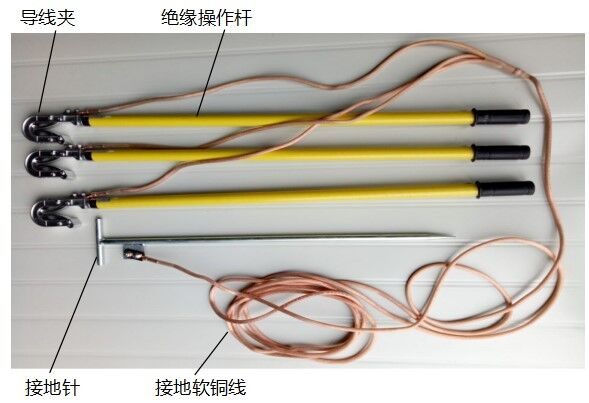

IEC 60227 Electrical Grounding Wire 3
