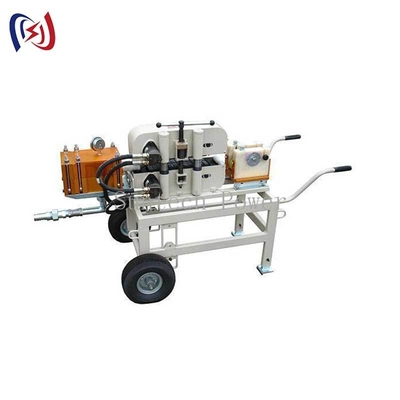

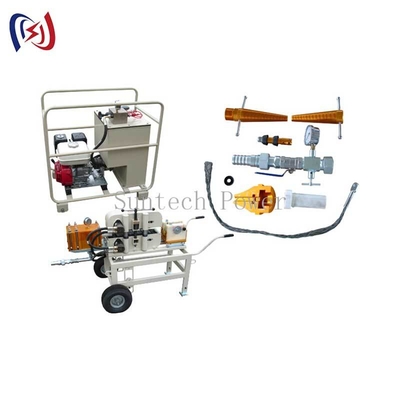

Professional Cable Blower Set for Fiber Optic Installation 700N Force

1 PCS
MOQ
Get the lastest price
Price
Professional Cable Blower Set for Fiber Optic Installation 700N Force
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Cable Blower Set
Item No.: 20401
Maximum Transportation Force: 700N
Warranty: 1 Year
Highlight:

132kv High Voltage Tower

,

10kv Electrical Towers

,

60kv Electrical Towers
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Cable
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 80000 PCS/Month
Product Description
Professional Cable Blower Set For Efficient Fiber Optic Installation
Name Cable Blower Set
Item No. 20401
Maximum transportation force 700N
Warranty 1 year
Professional Cable Installation Performance
  • Blows cables up to 3000 meters in one pass
  • Works with fiber optic, copper, and hybrid cables
  • Speed adjustable from 10-100 meters per minute
Industrial-Grade Construction
  • Heavy-duty steel frame with vibration damping
  • High-pressure resistant air hoses
  • Corrosion-resistant components
Advanced Control Features
  • Digital speed and pressure display
  • Automatic overload protection
  • Emergency stop button
Technical Specifications
Item No. 20401
Maximum transportation force (N) 700 (consecutive adjustable)
Transportation speed (m/min) 8-80 (consecutive adjustable)
Applicable cable diameter (mm) Φ10~11.7, Φ11.8~13.5, 13.6~15.3, Φ15.4~17.1
Applicable silicon core pipe (out diameter/inner diameter) (mm) Φ33/Φ40
Dimension (mm) 1390x700x850
Weight (kg) 125

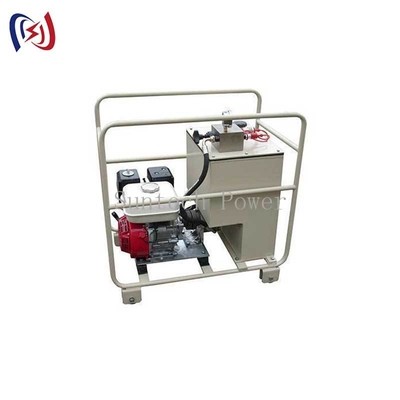

Pump Station Essential Technical Parameters
Maximum pressure (MPa) 15
Hydraulic flux (1/min) 10
Gasoline (hp/rpm) 6/1800
Length of tube (1/min) 10
Dimension (mm) 780x470x780
Weight (kg) 87.5
Comprehensive Applications
  • Fiber optic communication cables
  • Power distribution cables
  • Underground conduit systems
  • Telecom backbone networks
  • Industrial control cables
Performance Advantages
  • Handles cables from 5mm to 50mm diameter
  • Works in conduits up to 150mm
  • Maintains consistent air pressure
  • 50% faster than traditional pulling methods
  • Reduces cable installation time
  • Minimizes cable damage risks
Tag:

transmission tools and equipment

cable pulling tools

transmission line tool
