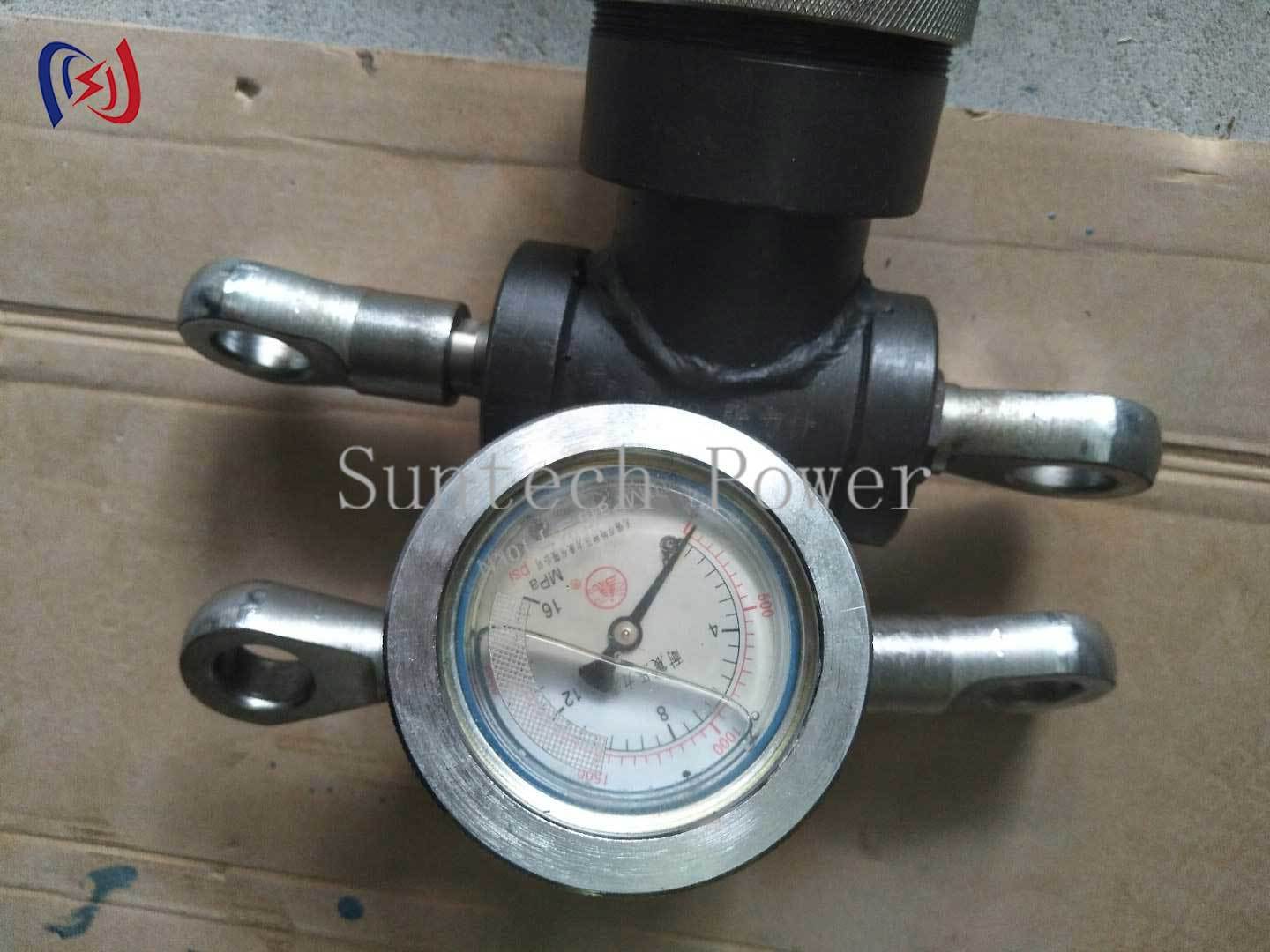

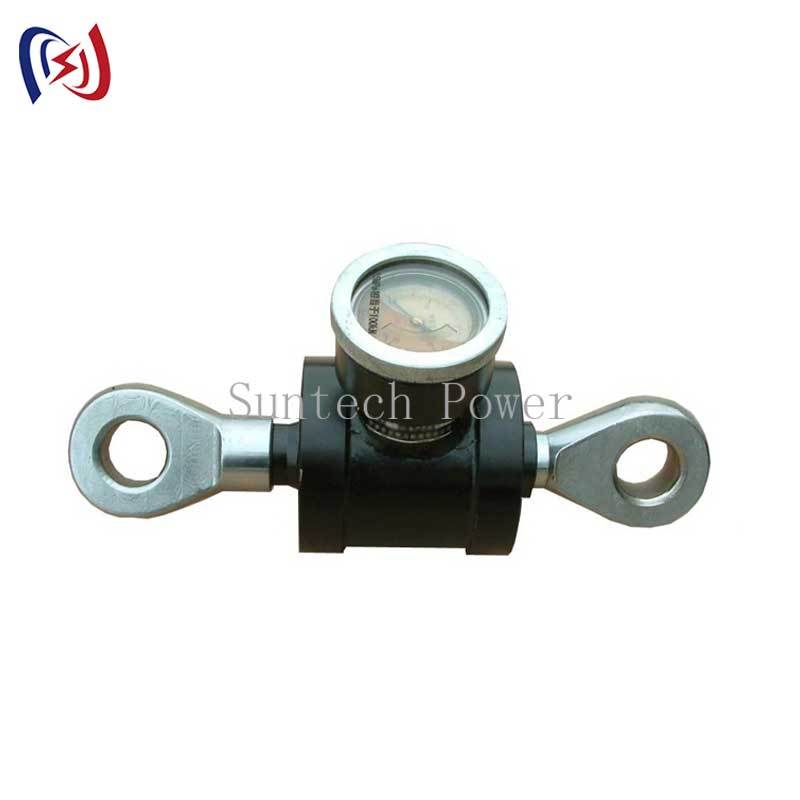

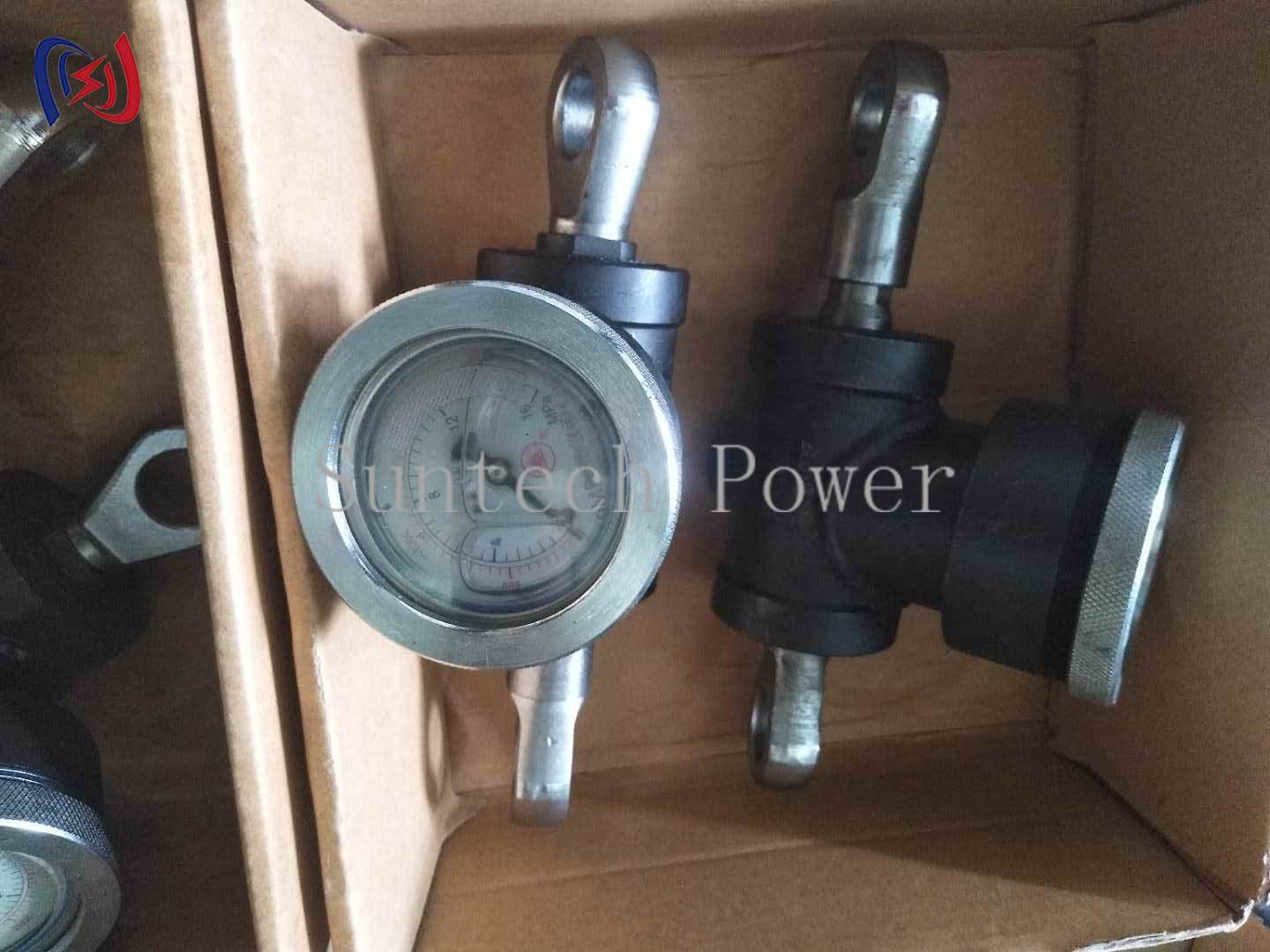

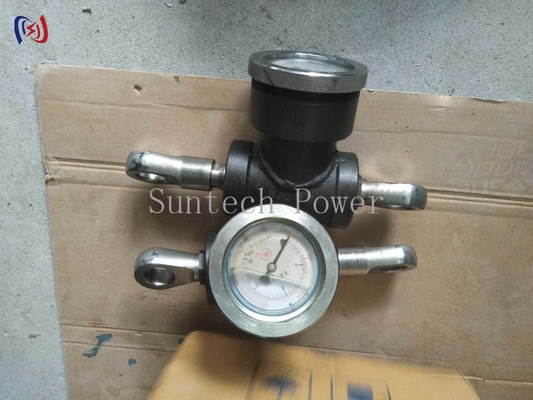

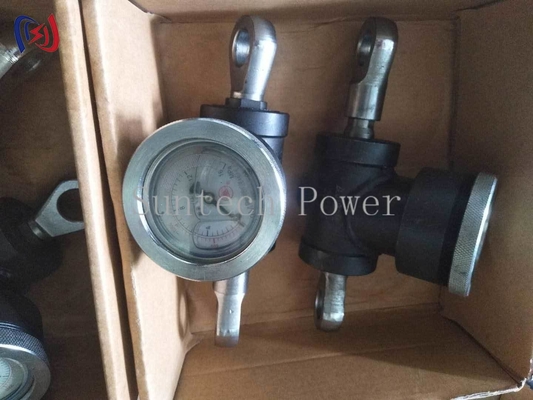

Hydraulic Dynamometer ZLJ10 10-100KN for Conductor Stringing

1 PCS
MOQ
Get newest price
Price
Hydraulic Dynamometer ZLJ10 10-100KN for Conductor Stringing
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Hydraulic Dynamometer
Item No.: 22301-22304
Model: ZLJ10
Maximum Testtension: 10-100KN
Connect Hole Dia: 22-32mm
Weight: 2.8-8.1KG
Highlight:

Cross Arm Transmission Line Tower

,

Galvanized Angle Steel Transmission Line Tower

,

Galvanized Electric Power Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: ZLJ10
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 70000 PCS/Month
Product Description
High Power Hydraulic Dynamometer With Precision Control
Product Specifications
Attribute Value
Name Hydraulic Dynamometer
Item No. 22301-22304
Model ZLJ10
Maximum test tension 10-100KN
Connect hole diameter 22-32mm
Weight 2.8-8.1KG
Key Features
  • Professional Power Measurement: Measures up to 10,000 HP with ±0.25% accuracy, torque range from 100 Nm to 50,000 Nm, speed measurement up to 10,000 RPM
  • Industrial-Grade Construction: Heavy-duty cast iron housing, precision-machined stainless steel rotor, corrosion-resistant hydraulic components
  • Advanced Control Features: Real-time data acquisition system, automated load control algorithms, remote monitoring capability
  • Ergonomic Design: Low vibration operation, balanced weight distribution, easy-access service points
  • Comprehensive Applications: Ideal for testing automotive engines, marine propulsion systems, industrial power units, aircraft auxiliary engines, and generator sets
Performance Advantages
  • 50% faster than mechanical dynamometers with reduced testing time
  • Maintains accuracy under full load with smooth power absorption
  • Wide operating range with 20,000+ hour service life
  • Patented rotor design with smart cooling system and advanced vibration damping
Technical Specifications by Model
Item No. 22301 22302 22303 22304
Model ZLJ10 ZLJ30 ZLJ50 ZLJ100
Maximum test tension (KN) 10 30 50 100
Dimension (mm) 232*80*133 232*80*133 256*80*152 330*100*170
Connect Hole Dia. (mm) Φ22 Φ22 Φ24 Φ32
Weight (KG) 2.8 2.8 4.4 8.1
Quality Assurance
  • ISO 9001 manufacturing standards and CE safety certified
  • Meets SAE J1349 standards
  • Each unit performance tested with traceable calibration
  • 1-year warranty included
