Home /Products/Conductor Stringing Tools/10-500KV Switch Rod for Live Line Maintenance

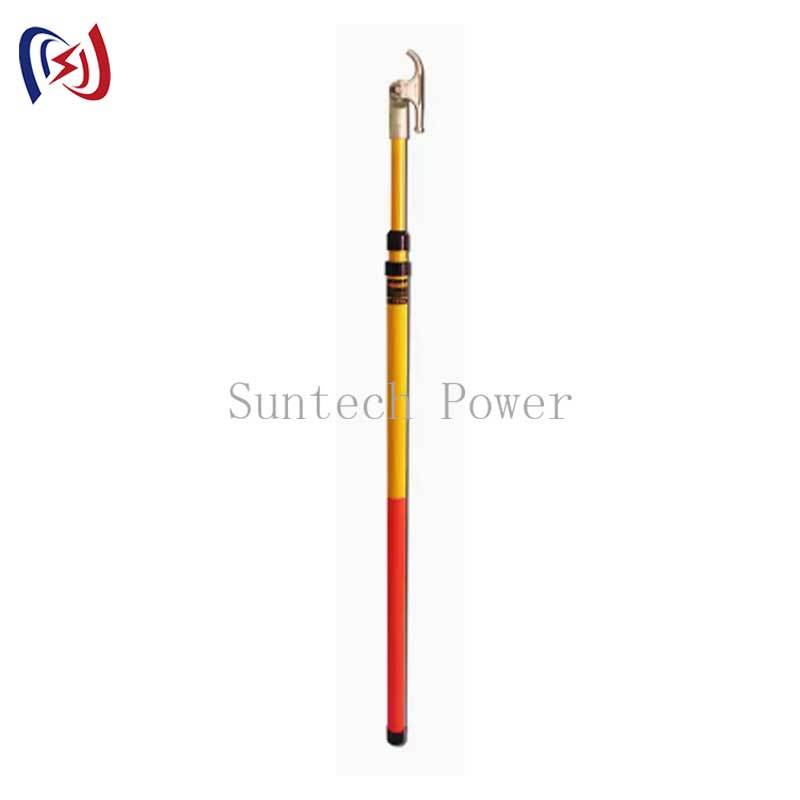

10-500KV Switch Rod for Live Line Maintenance

1 PCS
MOQ
Get the newest price
Price
10-500KV Switch Rod for Live Line Maintenance
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Switch Rod
Rated Voltage: 10-500KV
Total Length: 3M-10M
Node Number: 3-5
Combining Ways: Flat Mouth Spiral And Telescopic
Warranty: 1 Year
Highlight:

Telecommunication Steel Tower Q345

,

Q235B Carbon Telecommunication Steel Tower

,

Lighthouse Monopole Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: 500KV
Payment & Shipping Terms

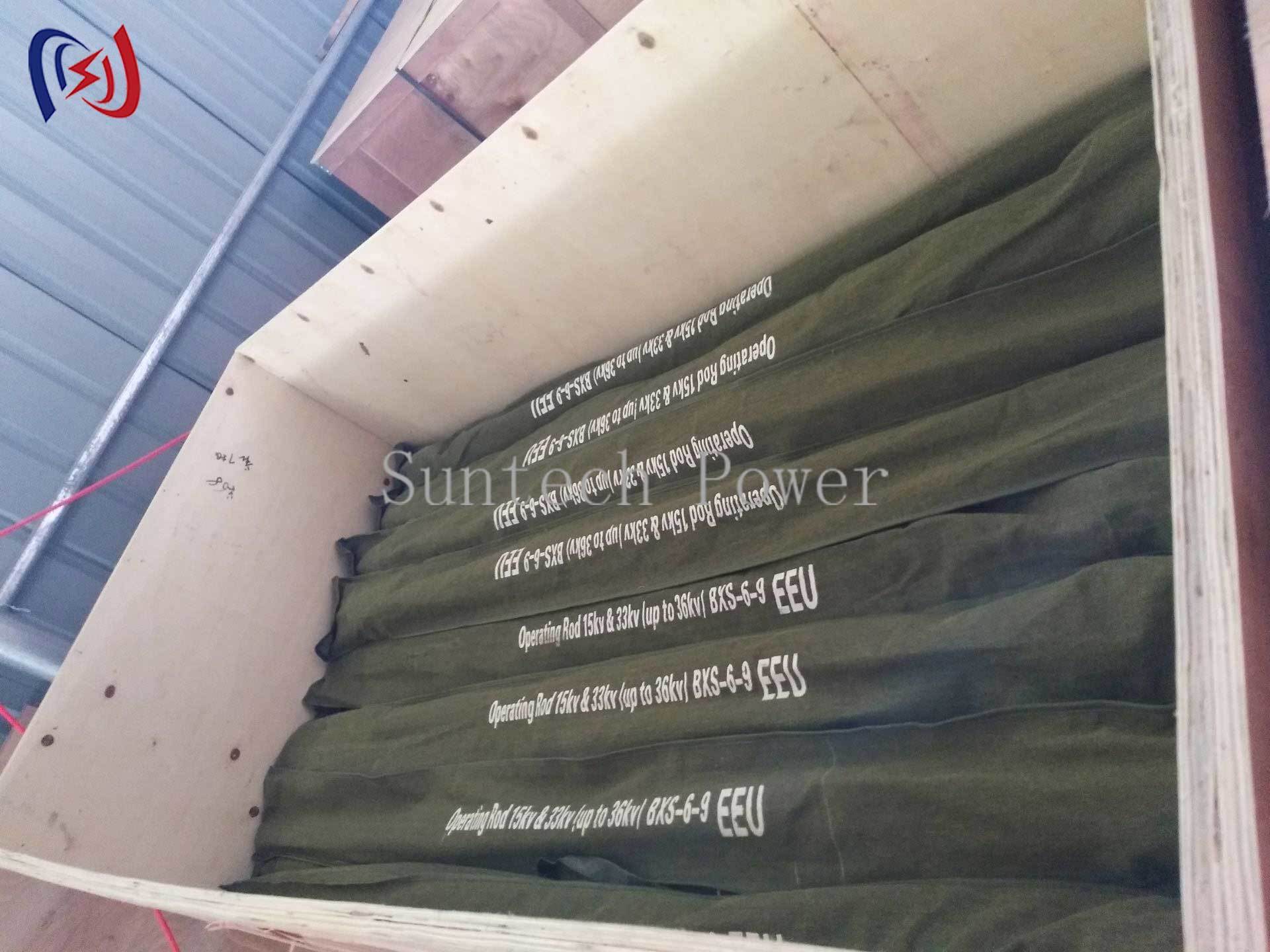

Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 1000 PCS/Month
Product Description
Professional Switch Rod For Live Line Maintenance Work
Attribute Value
Name Switch Rod
Rated Voltage 10-500KV
Total length 3M-10M
Node Number 3-5

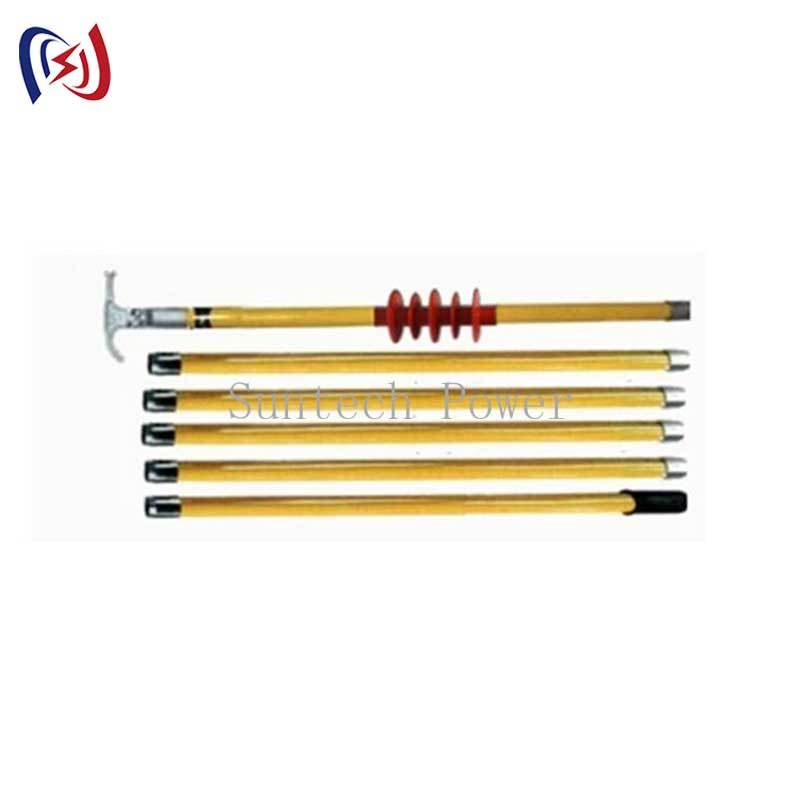

Combining ways Flat mouth spiral and Telescopic
Warranty 1 year
Professional Switching Performance
  • Rated for 10kV to 500kV operations

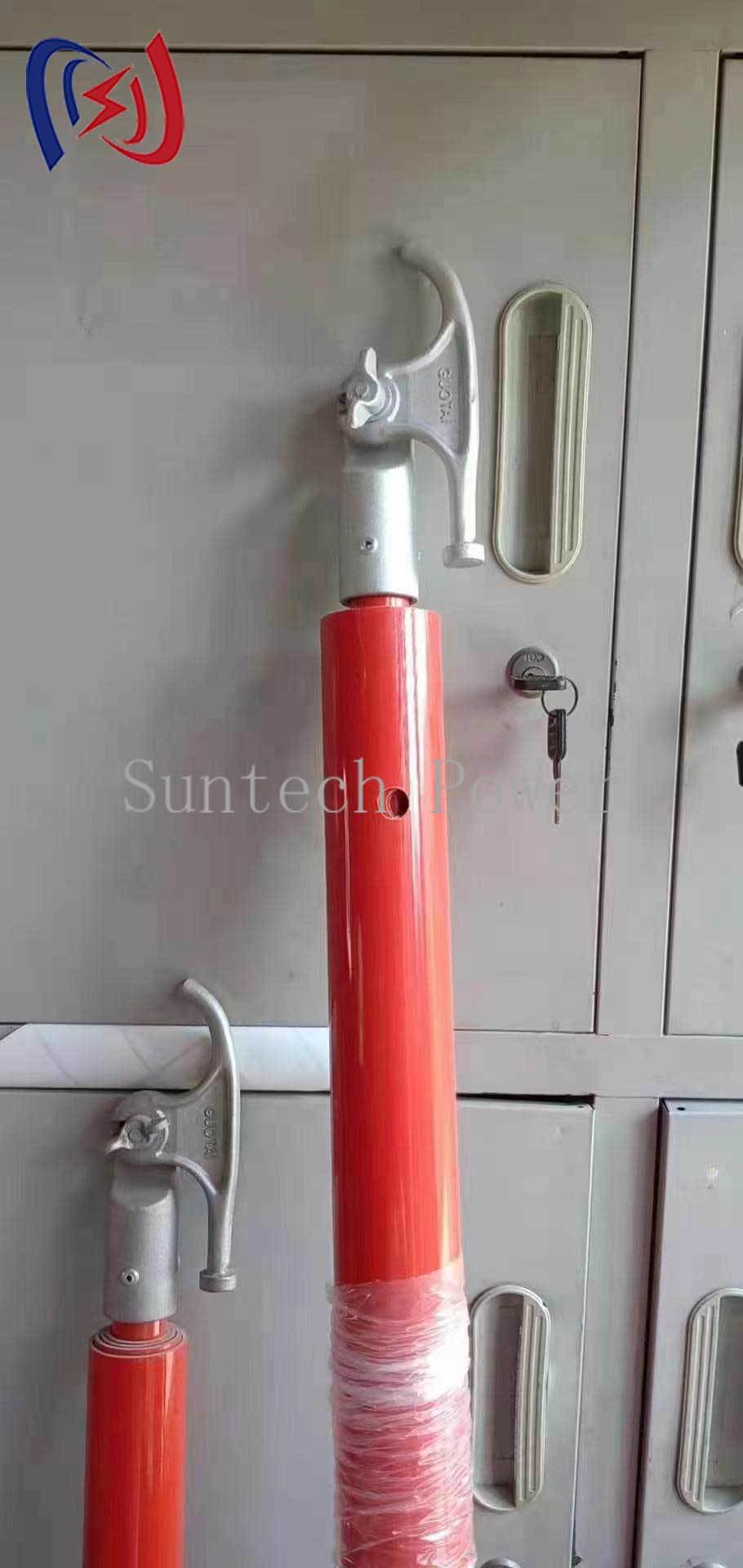

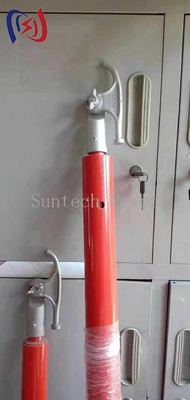

  • 360° rotating operation head
  • Positive locking mechanism
Industrial-Grade Construction
  • Fiberglass epoxy resin core
  • Rubberized insulation coating
  • Corrosion-resistant metal components
Advanced Safety Features
  • 100kV/ft dielectric strength
  • Visual insulation condition indicators
  • Audible operation confirmation
Ergonomic Design Advantages
  • Telescopic length adjustment (1-6m)
  • Comfortable non-slip EVA grip
  • Balanced weight distribution
Comprehensive Applications
  • Ideal for:
    • Substation switching operations
    • Live line maintenance
    • Emergency power isolation
    • Transformer servicing
    • High voltage testing
Technical Specifications
Rated voltage Total length Node number Retraction length Top rod rough Rod rough Combining ways
10KV 3 3 124cm 26mm 38mm Telescopic
10KV 4 3 158cm 26mm 39mm
35KV 4 4 158cm 26mm 44mm
110KV 5 4 159cm 26mm 44mm
110KV 6 4 184cm 26mm 44mm
220KV 7 4 225cm 26mm 44mm
220KV 9 4 232cm 26mm 45mm
500KV 10 5 241cm 26mm 51mm
10-500KV Switch Rod for Live Line Maintenance 0
Performance Advantages
  • Withstands 300kV impulse voltage
  • <0.5mA leakage current
  • 500N mechanical strength
Quality Assurance
  • Each unit dielectric tested
  • Serial number traceability
  • 1-year warranty
