Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO900 |
| Model Number: | JKD,GKB |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Get newest price |
| Packaging Details: | Packed With Export Case |
| Delivery Time: | In Stock |
| Payment Terms: | L/C, T/T, D/A, Western Union, |
| Supply Ability: | 500pcs per month |
| Material: | Aluminum,Steel | Type: | Cable Bend Board |
|---|---|---|---|
| Max Diameter: | 80-150mm | Weight: | 3.2-6.5kg |
| Bend Radius: | R400-R500 | Application: | Construction Site |
| High Light: | Underground Cable Protection Bend Board,150mm Cable Protection Bend Board,Underground Cable Stringing Tools |
||
GKB JKD Cable Protection Bend Board Underground Cable Stringing Tools
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
This cable protection bend plat plays a vital role in safeguarding the cable and pulling rope at the cable pithead. It is constructed
from galvanized steel

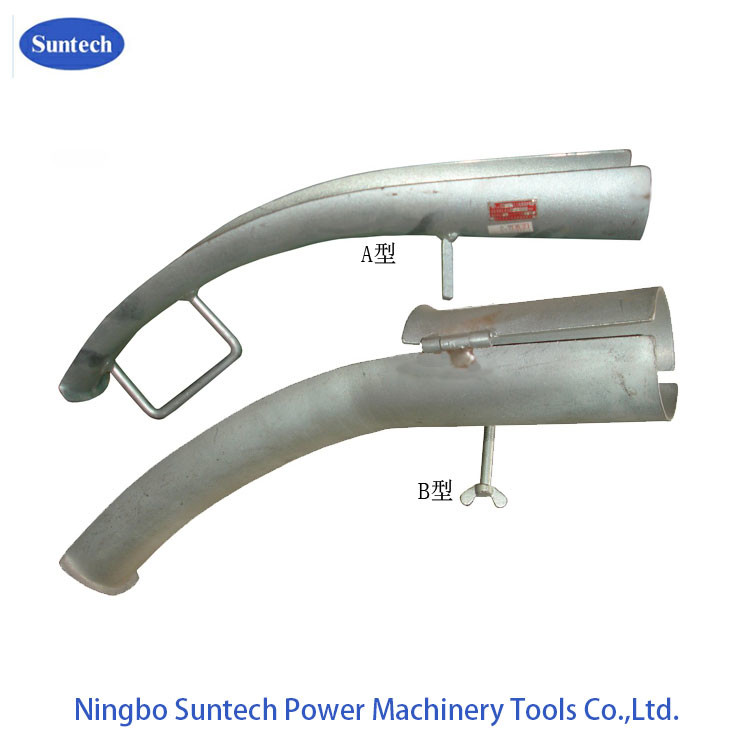

1.Protect cable and pulling rope at pipe mouth pithead.
2.Cambered surface 45 or 60 wrap angle
| Item number | Model | Tube Diameter(MM) | Curvature diameter(mm) | Weight (kg) |
| 21321 | GKB100A | Φ100 | R 400 | 3.2 |
| 21322 | GKB130A | Φ130 | R 450 | 5.2 |
| 21322A | GKB150A | Φ150 | R 450 | 5.9 |
| 21325 | GKB100B | Φ100 | R 450 | 3.4 |
| 21326 | GKB130B | Φ130 | R 450 | 6 |

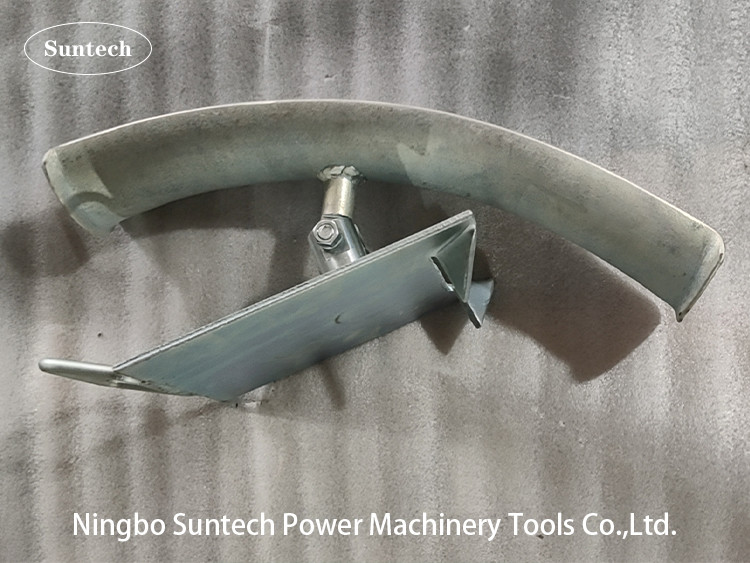

| Item number | Model | Max. Cable Diameter(mm) | Curvature diameter(mm) | Weight (kg) |
| 21305 | JKD80 | Φ80 | R400 | 5 |
| 21307 | JKD100 | Φ100 | R400 | 5.2 |
| 21306 | JKD130 | Φ130 | R500 | 6 |
| 21308 | JKD150 | Φ150 | R500 | 6.5 |
