Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Fenghua,,China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHR-2.5 and SHRN-2.5 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Get the new prices |
| Packaging Details: | Containers and Cartons |
| Delivery Time: | 7-10 workdays after deposit |
| Payment Terms: | L/C, T/T, D/A, Western Union, MoneyGram |
| Supply Ability: | 800pcs per month |
| Model: | 10211 And 10212 | Type: | Double Sheave Conductor Stringing Block |
|---|---|---|---|
| Application: | Transmission Line Stringing Blocks | Applicable Conductor: | LGJ300-500 |
| Rated Load: | 25kn | Material: | Nylon Or Aluminum Sheaves |
| High Light: | Front And Rear Wheels Stringing Block,Tandem Sheave Stringing Block,Nylon Sheave Galvanized Frame Pulley Block |
||

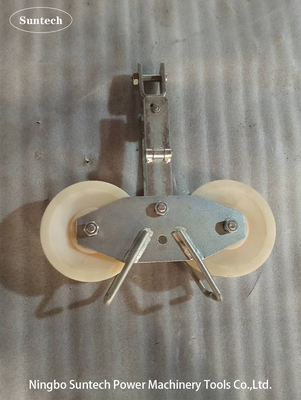

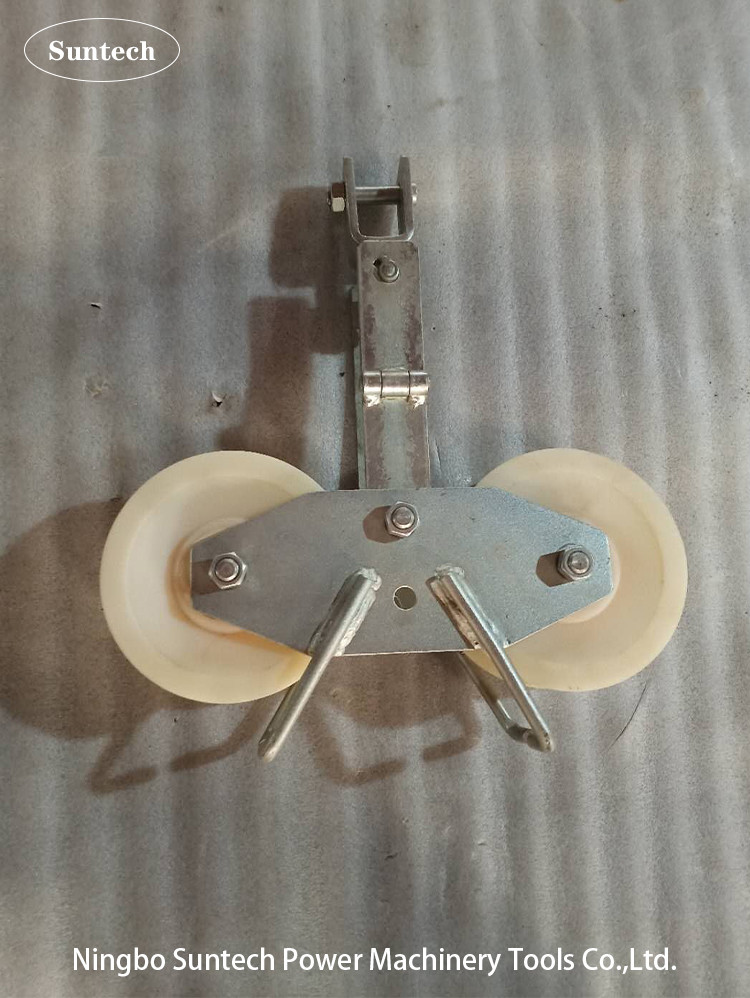

Nylon Sheave Galvanized Front And Rear Wheels Tandem Sheave Stringing Block
Model SHR-2.5 tandem sheave stringing blockare made of aluminium alloy/ MC nylon mounted on ball bearings; the groove is lined by a neoprene ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel. The pulleys can be supplied with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D). Grounding device orcomplete conductive sheaves can be supplied on demand.
50KN SHR-2.5 Tandem Sheave Overhead Stringing Blocks With Nylon Wheel
Rated load is 25kn,breaking force is 50kn, weight is very light and convenient to operate, besides, it has aluminum sheave and nylon sheave.
| Item Number | Rated Load(KN) | Breaking Load(KN) | Weight(kg) | Remark |
| 10211 | 25 | 50 | 9.8 | Aluminum sheave |
| 10212 | 25 | 50 | 8 | Nylon sheave |
