Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Fenghua,Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHCS-2 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Wooden Boxes and Pallets |
| Delivery Time: | 7-15 days after deposit |
| Payment Terms: | L/C, T/T, D/A, Western Union |
| Supply Ability: | 2000pcs per month |
| Name: | Dual Use Stringing Block | Item: | 10291,10292 |
|---|---|---|---|
| Performance: | Skyward Purpose Stringing Block | Usage: | Transmission Line |
| Rated Load: | 20KN | Weight: | 4.1kg -4.7kg |
| High Light: | Transmission Line Stringing Blocks,Sitting And Hanging Type Stringing Block,Nylon Sheave Wire Stringing Blocks |
||

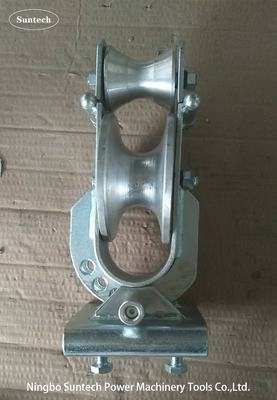

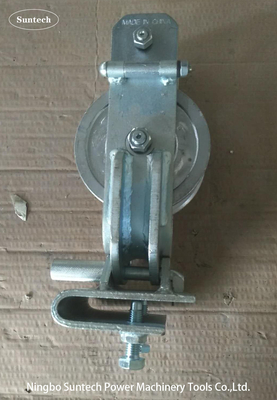

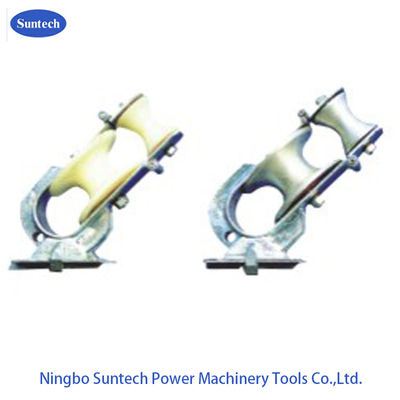

SHCN Series Nylon Sheave Sitting and Hanging Type Dual - Use Stringing Block
It can be used in three direction :straight, left and right.
| Item number | Modle | Applicableconductor | Rated load (kN) | Weight (kg) | Remark |
| 10291 | SHCS-2L | ≤ACSR240 | 20 | 4.5 | Aluminium sheave |
| 10292 | SHCS-2N | 20 | 4.0 | Nylon sheave |
The stringing roller is suitable to string single stranded aluminum and ACSR conductors on tangent structures in overhead
transmission line.All the sheaves are mounted on ball bearings. The frame of block is made of galvanized steel.
