Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Fenghua,Zhejiang,China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHG,SHGN |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get the update prices |
| Packaging Details: | Exported Wooden Boxes and pallets |
| Delivery Time: | 5-7days after deposit |
| Payment Terms: | L/C, T/T, D/A, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per month |
| Name: | Single Stringing Blocks | Item: | 10261-10274 |
|---|---|---|---|
| Usage: | Transmission Line Skyward Stringing Blocks | Type: | Conductor Stringing Block |
| Sheave: | Nylon Or Aluminum | Weight: | 2.1-3.7kg |
| High Light: | Aerial Cable Rope Pulley Block,2T Conductor Stringing Blocks,Dual Purpose Wire Rope Pulley Block |
||

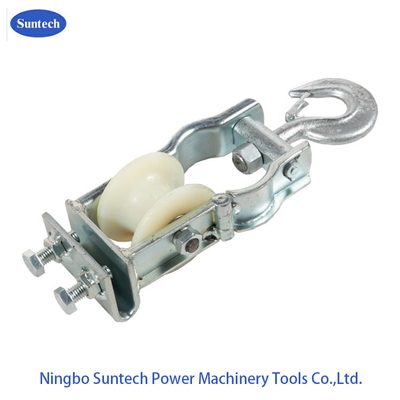

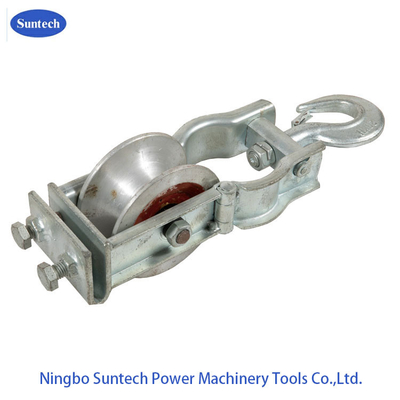

0.5T- 2T Dual Purpose Wire Rope Pulley Block , Aerial Cable Rope Pulley Block
They have are used to support conductors,OPGW,ADSS, communicatio lines. The sheave of the pulley blocks
are made from higth strength nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.
All kinds of pulley blocks can be manufactured according to the customers's requirements. Product can be used in
hanging type stringing block or skyward stringing block.
| Item number | Model | Rated load (kN) | Outside diameter×width (mm) | Weight (kg) | Remark |
| 10261 | SHG-0.5 | 5 | φ80x50 | 2.1 | Aluminium sheave |
| 10263 | SHG-1 | 10 | φ160x40 | 3.2 | |
| 10264 | SHG-2 | 20 | φ120x58 | 3.6 | |

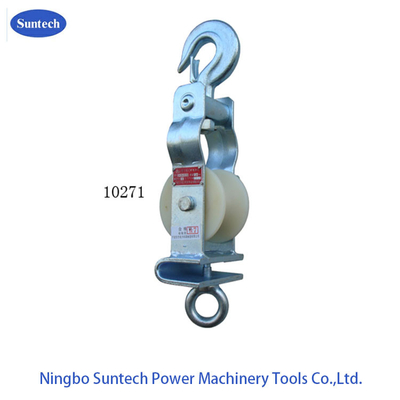

| 10271 | SHGN-0.5 | 5 | φ80x50 | 1.9 | Nylon sheave |
| 10272 | SHGN/0.5 | 5 | φ120x30 | 1.8 | |
| 10273 | SHGN-1 | 10 | φ160x40 | 2.6 | |
| 10274 | SHGN-2 | 20 | φ120x58 | 3.4 |
Contact Person: Peter
Tel: 86-13958364836
