916X125mm Nylon Sheaves Conductor Transmission Line Stringing Blocks

916X125mm Nylon Sheaves Conductor Transmission Line Stringing Blocks

  • 916X125mm Nylon Sheaves Conductor Transmission Line Stringing Blocks
  • 916X125mm Nylon Sheaves Conductor Transmission Line Stringing Blocks
916X125mm Nylon Sheaves Conductor Transmission Line Stringing Blocks
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: SHDN916
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Get Latest Price
Packaging Details: Exported Cases and Containers
Delivery Time: 7-15 DAYS AFTER DEPOSIT
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 Sets per Month
Contact Now
Detailed Product Description
Material: MC Nylon Sheaves: 1,3,5,7,
Item: Stringing Blocks Application: Transmission Line
Suitable Conductor: ACSR720 Size: 916mm
High Light:

Conductor Transmission Line Stringing Blocks

,

Nylon Sheaves Stringing Pulley Blocks

916X125mm Nylon Sheaves Conductor Transmission Line Stringing Blocks



916mm Large Diameter Stringing Block has the maximum suitable conductor LGJ720. In detail, the aluminum of this conducting

wire can possess the largest cross section of up to 720 square millimeters. The dimension of block (outside diameter*root

diameter*sheave width) is Φ916× Φ 800× 110 (mm).



1.Maximum suitable conductor ACSR720.

2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ916×Φ800×110(mm).

3.The middle sheave can be customized as cast steel sheave



916mm Main Specifications

Item Number Model Number of Sheave Rated Load (KN) Weight (kg) Sheave Feature
10151 SHDN916 1 50 51 MC nylon sheave
10152 SHSQN916 3 75 120
10153 SHWQN916 5 150 200
10151A SHDN916-125 1 50 60

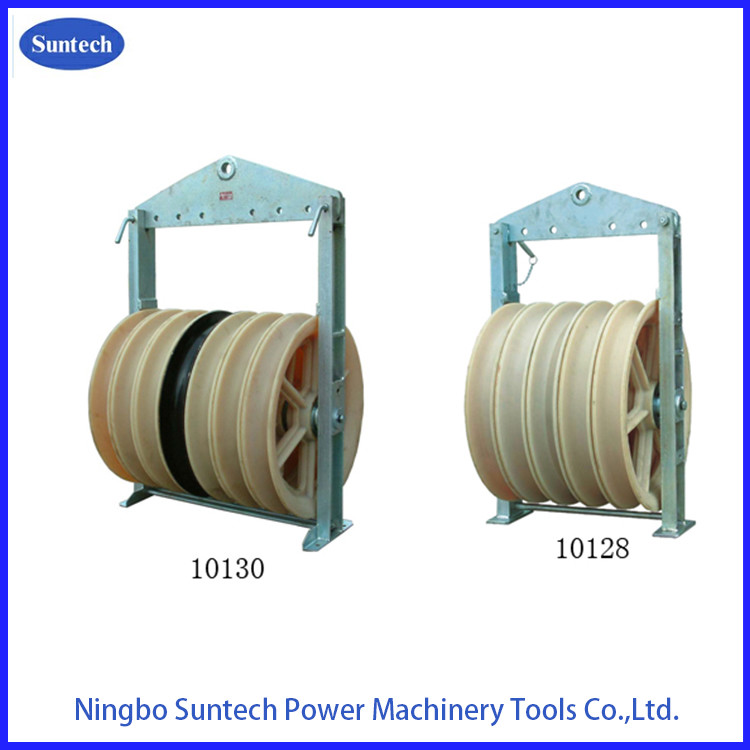

916X125mm Nylon Sheaves Conductor Transmission Line Stringing Blocks 0

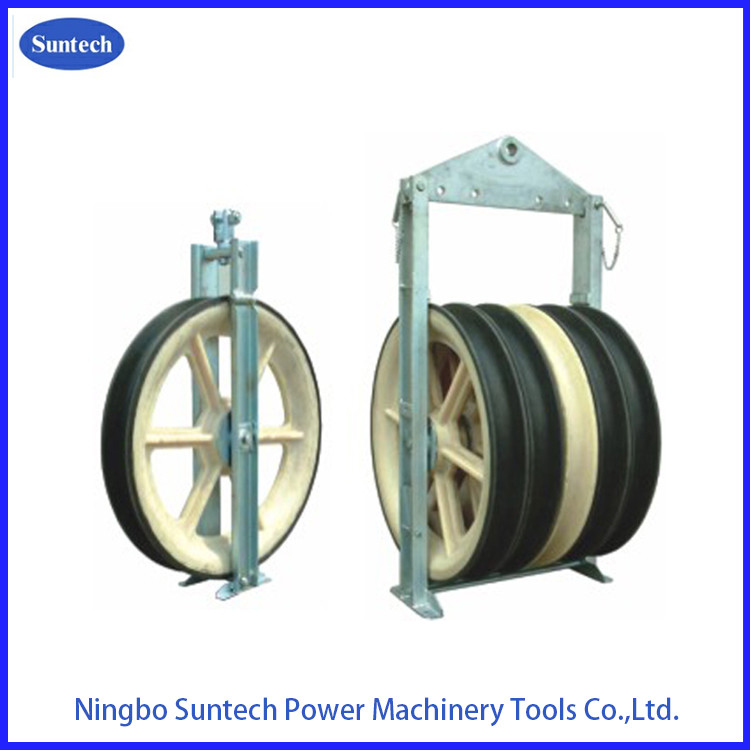

916X125mm Nylon Sheaves Conductor Transmission Line Stringing Blocks 1
