660X100mm Nylon Wheels Bundled Overhead Conductor Stringing Block For Transmission Line

660X100mm Single Nylon Wheel Bundled Overhead Conductor Stringing Block

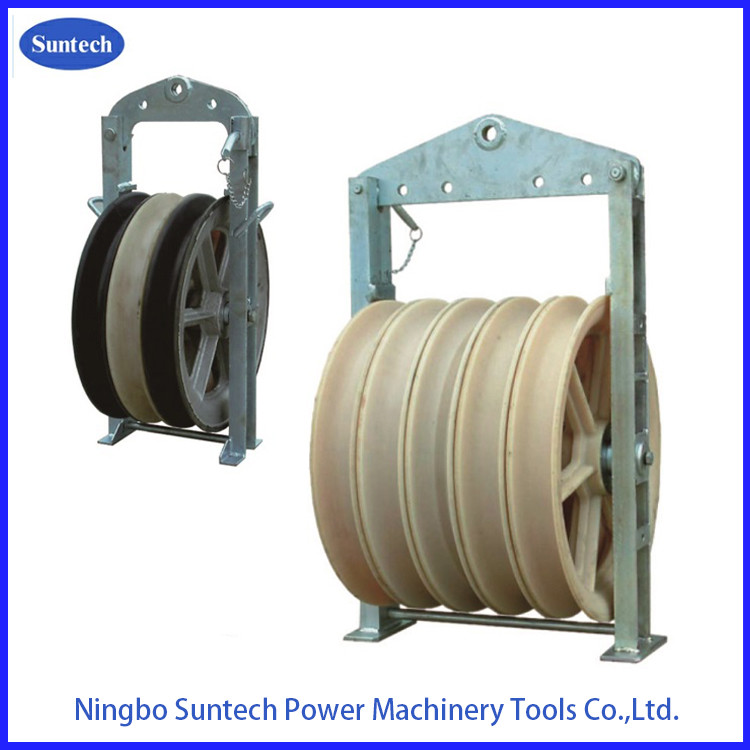

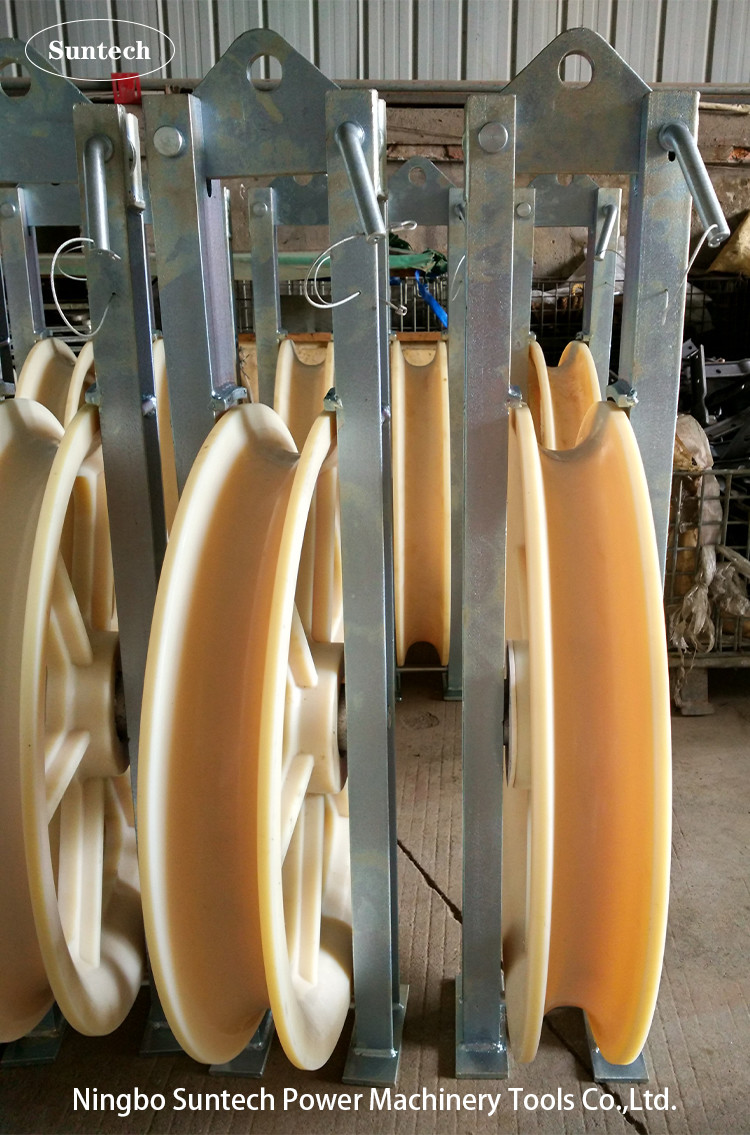

This 660*100mm Large Diameter Stringing Block possesses the dimension (outside diameter × groove bottom diameter × sheave width) of Φ660 × Φ560 × 100 (mm). Under normal circumstances,its maximum suitable conductor is ACSR500, which means that the aluminum of our conducting wire has the maximum cross section of 500 square millimeters. The maximum diameter through which the sheave passes is 75mm. Under normal circumstances, the model of the maximum Splicing Sleeve Protector is J500B. This Stringing Block can be divided into single sheave, three sheaves, five sheaves and seven sheaves according to the number of sheaves. Correspondingly, the number of conductors passing through the Stringing Block is: single conductor, double bundle conductor, four bundle conductor and six bundle conductor. According to the sheave material, it can be divided into MC nylon material, aluminum alloy material, nylon sheave coated rubber and aluminum sheave coated rubber. The intermediate sheave can also be steel sheave.
MC nylon sheave of the Stringing Block also has a wheel width of 110mm, Under normal circumstances,its maximum suitable conductor is ACSR630, which means that the aluminum of our conducting wire has the maximum cross section of 630 square millimeters. The maximum diameter through which the sheave passes is 85mm. Under normal circumstances, the model of the maximum Splicing Sleeve Protector is J630B
