Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | 508X100mm |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Get the lastest price |
| Packaging Details: | Exported Wooden Case or Containers |
| Delivery Time: | 10-15 days after Payment |
| Payment Terms: | L/C , T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |
| Name: | Conductor Pulley Block | Sheaves: | 1,3,5 |
|---|---|---|---|
| Material: | MC Nylon Sheave | Usage: | Overhead Line |
| Sheave Dimension:: | 508X408X75mm | Customize: | Rubber Line Or Aluminum Wheels |
| High Light: | Pilot Bundled Conductor Stringing Blocks,Transmission Line Stringing Pulley Blocks,Aluminum Wheels Conductor Stringing Blocks |
||

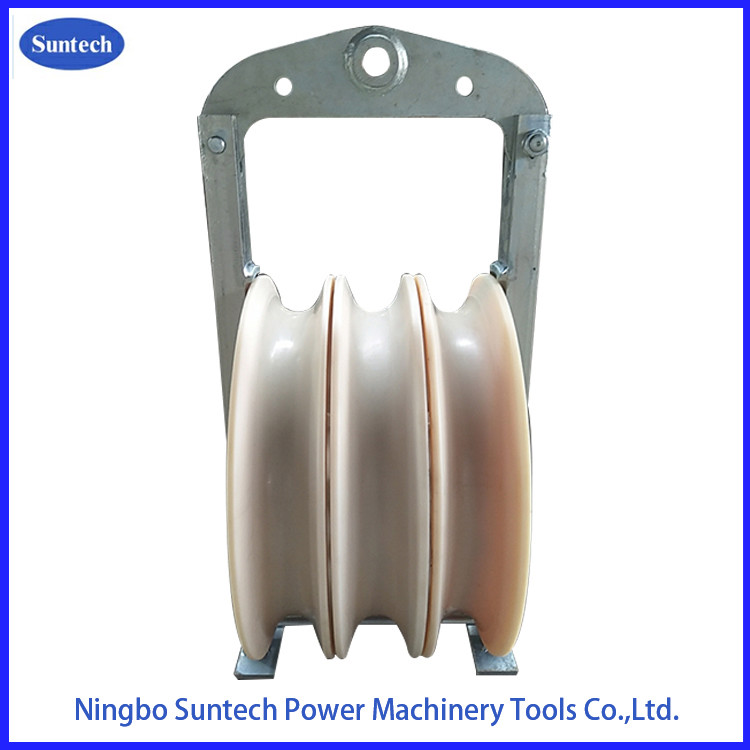

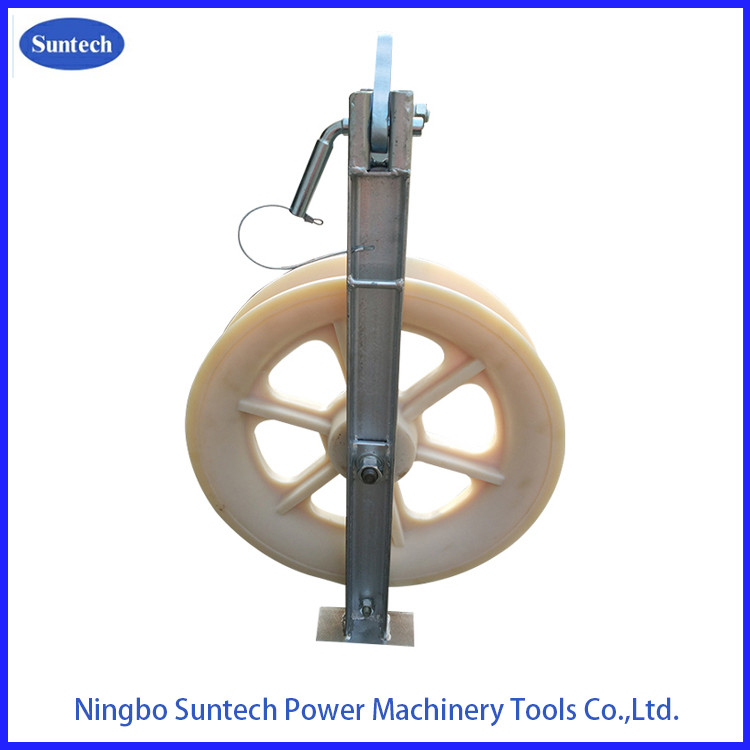

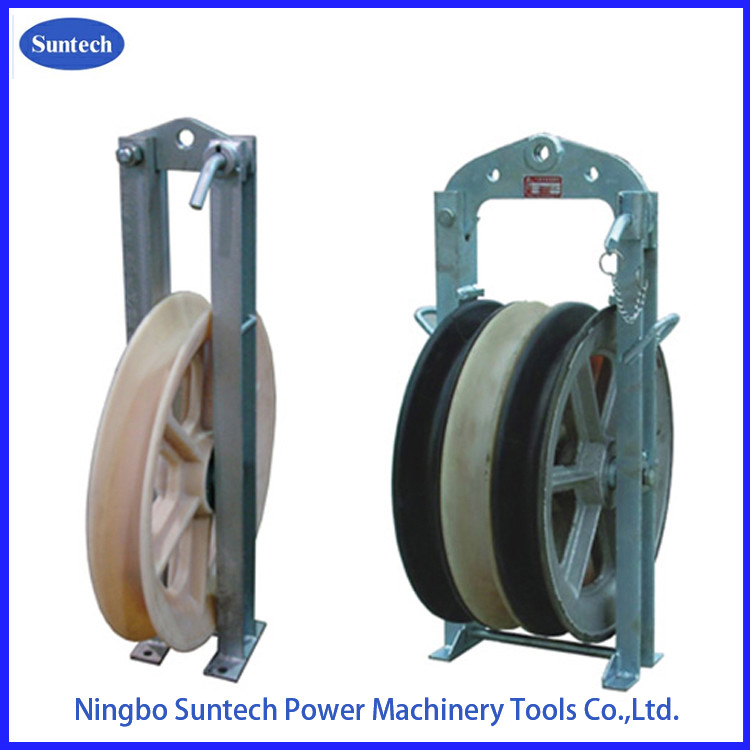

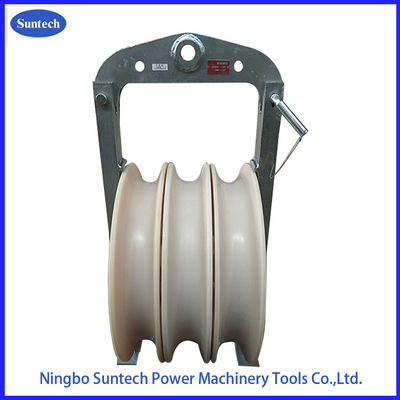

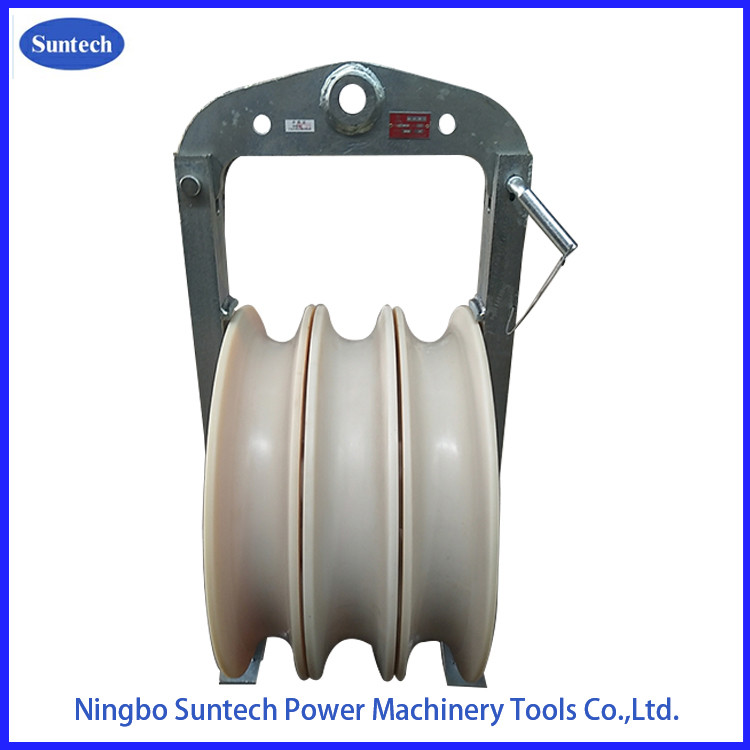

508x100mm Pilot Bundled Conductor Stringing Blocks For Transmission Line
This 508mm Large Diameter Stringing Block ,large diameter stringing pulley block and stringing conductor block comes with the maximum suitable conductor LGJ400. In other words, our product is adaptable to the conducting wire which has the aluminum's nominal cross section of up to 400 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ508×Φ408×75 (mm).
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber lined aluminium sheave |
| 10102 | SHS508 | 3 | 40 | 61 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104/10104A | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107/10107A | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| 10108/10108A | SHWQN508 | 5 | 60 | 70 |
