Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Zhejiang, China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | JJM5Q |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Exporting Cases |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T |
| Supply Ability: | 200pcs per month |
| Model: | JJM5Q | Name: | Cable Pulling Winch |
|---|---|---|---|
| Weight: | 130KG | Power: | 9HP |
| Usage: | Power Site | Application: | Electric Power Line Construction |
| High Light: | Cylindrical Steel Rope Come Along Winch,Stringing Wire Powered High Speed Winch,High Speed Cable Winch Puller |
||

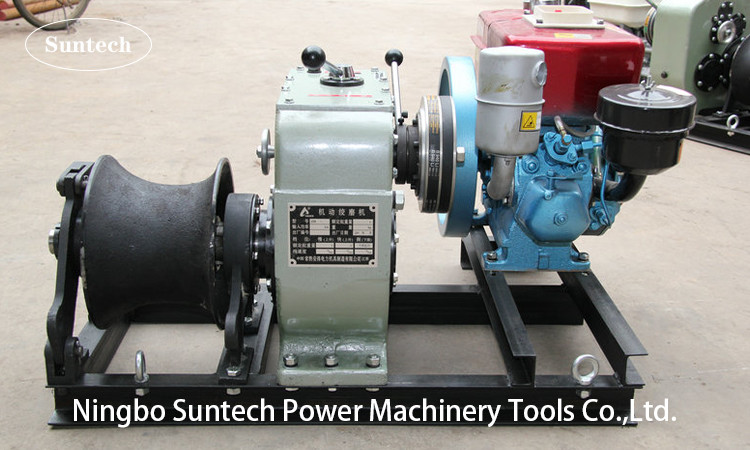

5 Ton Double Capstan Electric Engine Cabel Winch For Power Construction
Mortor winch is set up high-voltage transmission lines and laying of aerial construction machinery underground cables, smooth, convenient for Tower Group legislature, set up guide (land) lines, lifting, pulling in a variety of complex conditions.The wich owns the small volume & compact structure.light weight,easy to transport.high efficiency,save labor.widely used,pulling,hoisting,lifting and so on.safe & reliable,interlock brakes system.
The double capstan electric engine cable winch is used to erecting pylon and sagging operation in line construction .
Technical Data 5 Ton Double Capstan Electric Engine Cabel Winch For Power Construction
| Model | JJM-5SD | |||||
| Engine | Electric | |||||
| Power | 6.3KW,3600rmp | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No.of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| SlowⅠ | SlowⅡ | FastⅠ | FastⅡ | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(kg) | 280/300 | |||||
| Dimension(mm) | 1330*800*600 |
|||||
Contact Person: Peter
Tel: 86-13958364836
