Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Zhejiang, China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SHDN |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Exporting Containers and Cases |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs per month |
| Name: | Conductor Stringing Blocks | Material: | Steel And Nylon |
|---|---|---|---|
| Model: | SHDN660 SHSQN750 SHSQN822 SHWQN916 | Inner Size: | 408,560, 640, 710, 800 Mm |
| Outside Dia: | 508,660,750, 822, 916 Mm | Application: | Construction Site |
| High Light: | 660mm Conductor Pulley,Nylon Rollers Conductor Stringing Blocks,Overhead Bundled Cable Conductor Stringing Blocks |
||
Conductor Stringing Blocks With Nylon Sheave Rollers For Installation Of Overhead Bundled Cables
Product Description
Overhead Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing. We have produced sheave rollers with nylon or aluminum alloy, both kinds of rollers could be lined with neoprene, to protect some special kind of conductors.
Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120x30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160x40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200x40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200x60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250x40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250x60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270x60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320x60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400x80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
Note:
1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.
The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

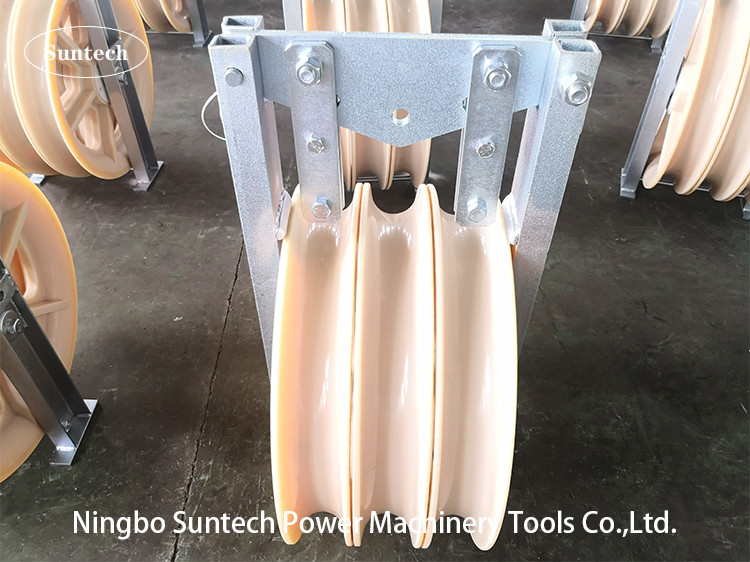

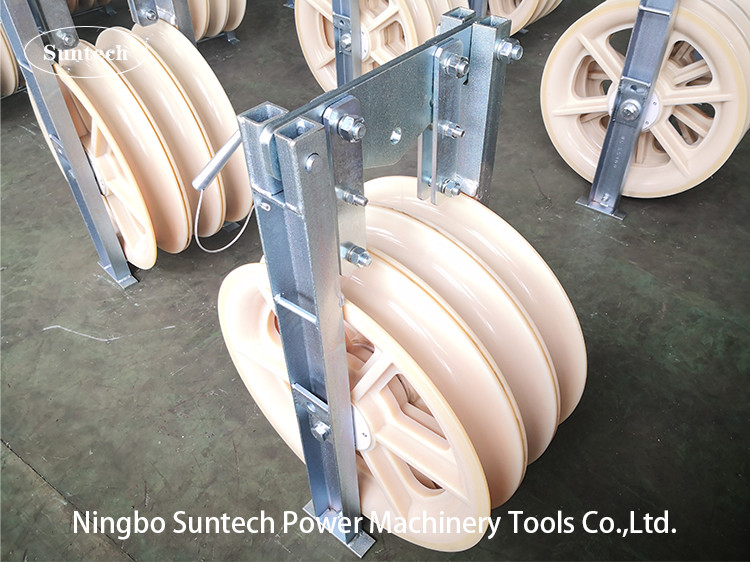

Three sheaves Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10107 | SHSQN508 | 300-400 | 40 | 43 | Nylon, optional can be lined with neoprene |
| 10127 | SHSQN660 | 400-500 | 40 | 76 | |
| 10132 | SHSQN750 | 500-600 | 60 | 98 | |
| 10142 | SHSQN822 | 600-700 | 60 | 110 | |
| 10152 | SHSQN916 | 700-800 | 75 | 126 | |
| 10166 | SHSQN1040 | 800-900 | 105 | 200 |
Application: It is suitable to string two or three stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
Note:
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
