| Product Name: | Cable Winch Puller | Rated Load: | 3 Ton |
|---|---|---|---|
| Engine: | Electric,Diesel Or Petrol | Weight: | 110kg |
| Application: | Overhead Line | Usage: | Transmission Line |
| High Light: | 3 Tons Cable Winch Puller,Power Line Construction Cable Winch Puller,Electric Engine Cable Pulling Winch |
||

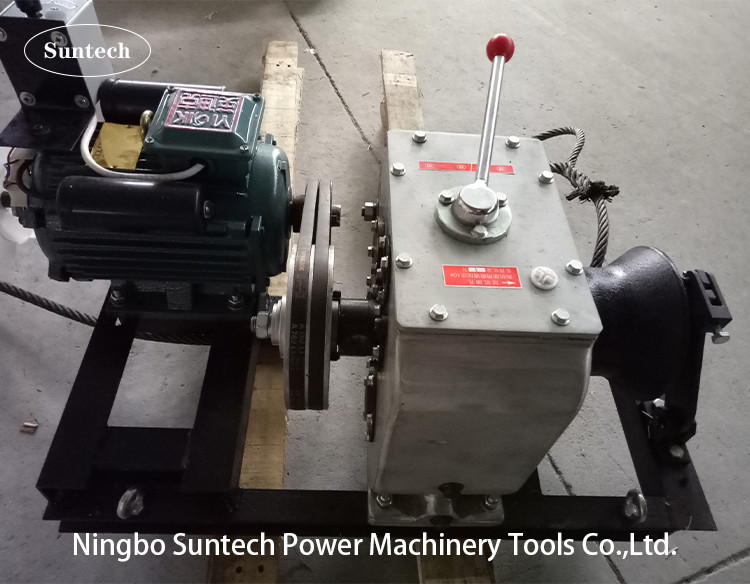

3 Tons Portable Power Cable Pulling Winch with Electric Engine in Power Line Construction
Uses:suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:Power can be configured according to used requirements.
1. 3Ton with 220V Standard Voltage it can suit to 240V highest voltage, it with 3 KW electrical machine, has the lone time life.
2. We can refit the cable pulling winch. it can has one phase and three phase voltage, per youe site applicaiton.
3. There is alos be a 380V 3T Electric Engine Towing Winch For Cable Pulling
| Item number | Model | Rotation direction |
Gear | (RPM) rotational speed |
(M/MIN) Traction speed |
(T) Tractive force |
(KW) Power |
(MM) Outline size |
(KG) Weight |
| 09121 | JJQ-3Q 6HP Gasoline engine |
corotation | ⅠSlow | 9.0 | 4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
| ⅡFast | 16.0 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
| reversal | Reverse | 7.5 | 3.3 | No lifting | |||||
| 09121A | JJC-30 170F Diesel engine |
corotation | ⅠSlow | 11.5 | 5.0 | 3.0 | 2.94 | 840x600x500 | 108 |
| ⅡFast | 21.0 | 9.0 | 1.8 | ||||||
| reversal | Reverse | 10.0 | 4.5 | No lifting | |||||
| 09121B | JJD-30 3KWElectromotor |
corotation | ⅠSlow | 8.5 | 4.0 | 3.0 | 3.00 | 770x600x460 | 108 |
| ⅡFast | 10.5 | 6.5 | 1.8 | ||||||
| reversal | Reverse | 7.0 | 3.0 | No lifting | |||||
| 09123 | JJQ-50 9HP Gasoline engine |
corotation | ⅠSlow | 6.5 | 4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
| ⅡFast | 16.0 | 9.0 | 2.2 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09123A | JJC-50 6.6HPDiesel engine |
corotation | ⅠSlow | 8.0 | 4.5 | 5.0 | 4.41 | 1000x750x600 | 168 |
| ⅡFast | 19.0 | 11.0 | 2.3 | ||||||
| reversal | Reverse | 10.0 | 5.5 | No lifting | |||||
| 09123B | JJD-50 4KW Electromotor |
corotation | ⅠSlow | 5.5 | 3.5 | 5.0 | 4.00 | 1000x850x520 | 160 |
| ⅡFast | 14.0 | 8.0 | 3.0 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09125 | JJQ-80 13HP Gasoline engine |
corotation | ⅠSlow | 5 | 3 | 8 | 9.60 | 1000x550x520 | 168 |
| ⅡFast | 9 | 5 | 4.5 | ||||||
| reversal | Reverse | 5 | 3 | No lifting | |||||
| 09125A | JJC-80 10.5HP Diesel engine |
corotation | ⅠSlow | 7 | 4 | 8 | 7.86 |
1000x750x630 | 230 |
| ⅡFast | 13 | 7.5 | 4 | ||||||
| reversal | Reverse | 6.5 | 3.7 | No lifting |
