Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | JJM5Q |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get the latest price |
| Packaging Details: | Exported Wooden Cases |
| Delivery Time: | 7-9 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 sets per month |
| Rated Load: | 5Ton Capacity | Item: | Cable Powered Winch |
|---|---|---|---|
| Power: | Diesel Or Petrol | Usage: | Overhead Line |
| Drive: | Belt Drive Or Shaft Drive | Warranty: | One Year |
| High Light: | Petrol Engine Cable Winch Puller,Belt Driven Portable Cable Winch Puller,5Ton Portable Cable Winch Puller |
||

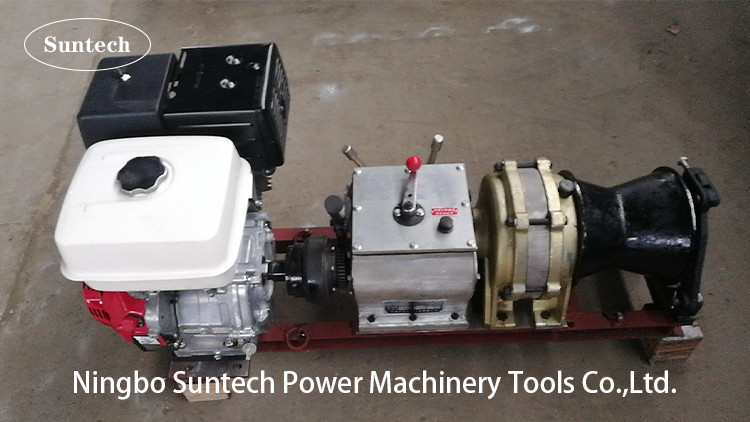

5Ton HONDA Petrol Engine Cable Powered Winch Driven By Belt in Line Construciton
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.
We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All can
accept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,
and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can
customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Small Winch Yamaha With Petrol Engine Powered Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
| Item number | Model | Rotation direction |
Gear | (RPM) rotational speed |
(M/MIN) Traction speed |
(T) Tractive force |
(KW) Power |
(MM) Outline size |
(KG) Weight |
| 09121 | JJQ-3Q 6HP Gasoline engine |
corotation | Ⅰ Slow |
9.0 | 4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
| Ⅱ Fast |
16.0 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
| reversal | Reverse | 7.5 | 3.3 | No lifting | |||||
| 09121A | JJC-30 170F Diesel engine |
corotation | ⅠSlow | 11.5 | 5.0 | 3.0 | 2.94 | 840x600x500 | 108 |
| ⅡFast | 21.0 | 9.0 | 1.8 | ||||||
| reversal | Reverse | 10.0 | 4.5 | No lifting | |||||
| 09121B | JJD-30 3KW Electromotor |
corotation | Ⅰ Slow |
8.5 | 4.0 | 3.0 | 3.00 | 770x600x460 | 108 |
| Ⅱ Fast |
10.5 | 6.5 | 1.8 | ||||||
| reversal | Reverse | 7.0 | 3.0 | No lifting | |||||
| 09123 | JJQ-50 9HP Gasoline engine |
corotation | Ⅰ) Slow |
6.5 | 4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
| Ⅱ Fast |
16.0 | 9.0 | 2.2 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09123A | JJC-50 6.6HP Diesel engine |
corotation | Ⅰ Slow |
8.0 | 4.5 | 5.0 | 4.41 | 1000x750x600 | 168 |
| Ⅱ Fast |
19.0 | 11.0 | 2.3 | ||||||
| reversal | Reverse | 10.0 | 5.5 | No lifting | |||||
| 09123B | JJD-50 4KWElectromotor |
corotation | Ⅰ Slow |
5.5 | 3.5 | 5.0 | 4.00 | 1000x850x520 | 160 |
| Ⅱ Fast |
14.0 | 8.0 | 3.0 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09125 | JJQ-80 13HP Gasoline engine |
corotation | Ⅰ Slow |
5 | 3 | 8 | 9.60 | 1000x550x520 | 168 |
| Ⅱ Fast |
9 | 5 | 4.5 | ||||||
| reversal | Reverse | 5 | 3 | No lifting | |||||
| 09125A | JJC-80 10.5HP Diesel engine |
corotation | Ⅰ Slow |
7 | 4 | 8 | 7.86 |
1000x750x630 | 230 |
| Ⅱ Fast |
13 | 7.5 | 4 | ||||||
| Reversal | Reverse | 6.5 | 3.7 | No lifting |
Uses:suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:Power can be configured according to used requirements.
