Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SKG70N |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Get the lastest Price |
| Packaging Details: | Exported Cartons |
| Delivery Time: | 3days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000pcs per month |
| Name: | Rope Gripper | Model: | SKG70N |
|---|---|---|---|
| Weight: | 8.5KG | Max Diam: | 16~18mm |
| Application: | Power Transmission | Advantage: | Light Weight |
| High Light: | Cable Come Along Clamp,Come Along Pulling Clamp 70KN,18mm Come Along Clamp |
||

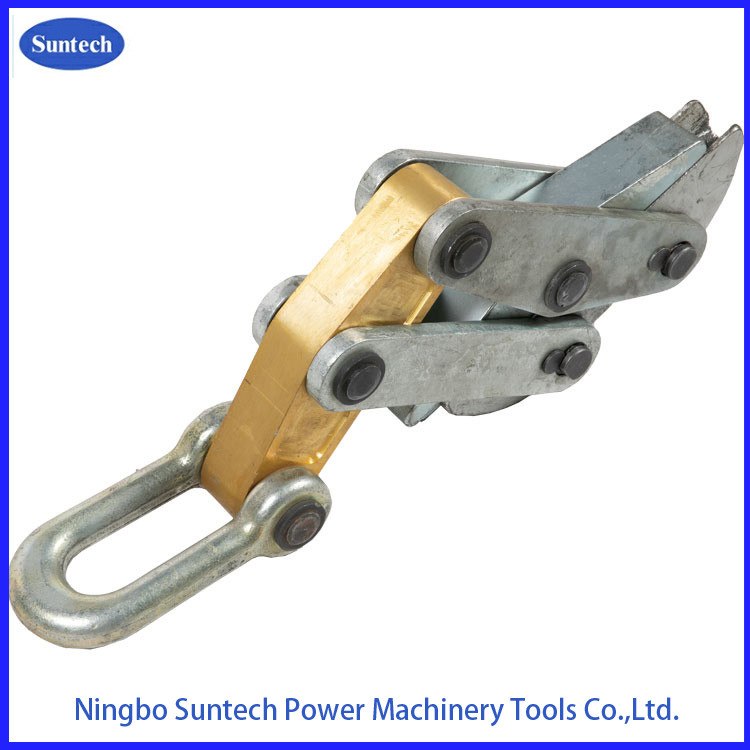

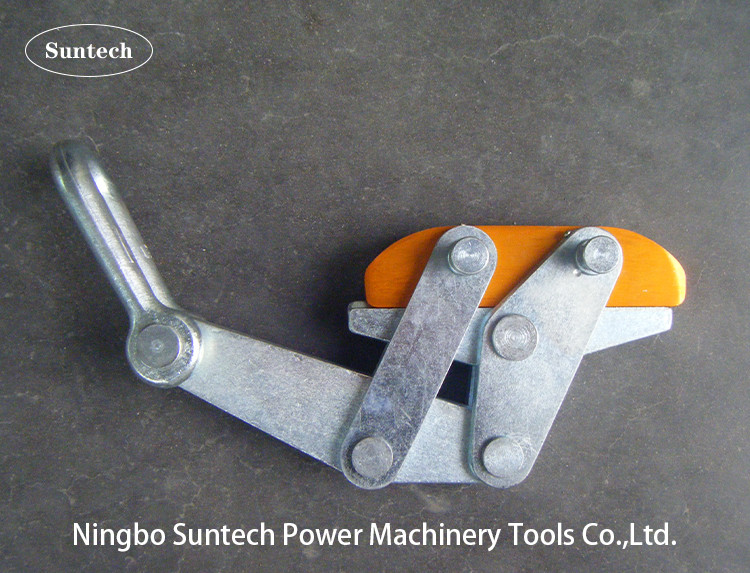

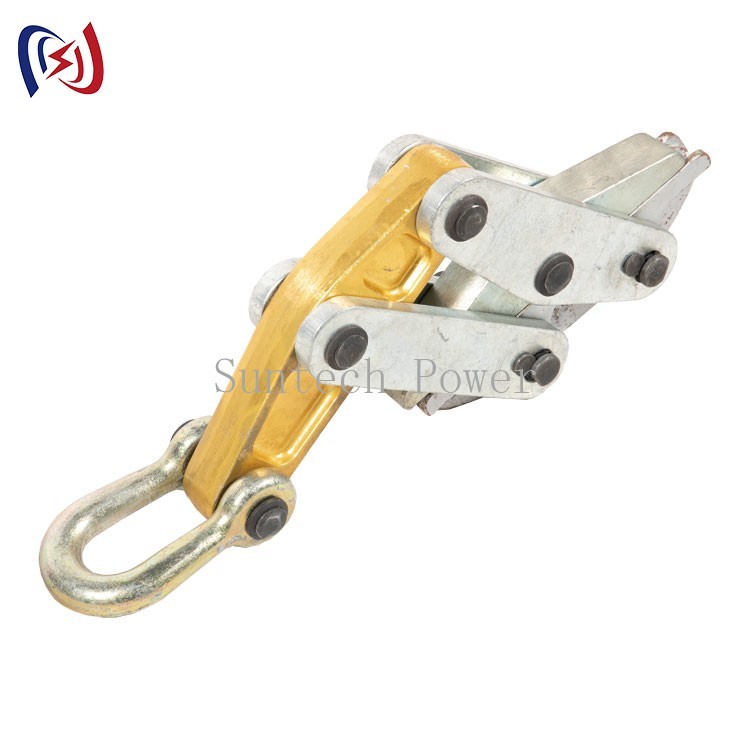

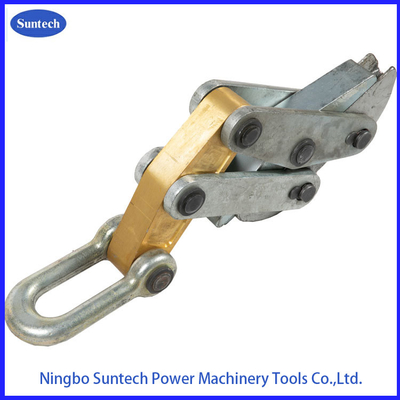

70Kn Cable Pulling Clamp SKG70N Gripping Anti Twisting Steel Wire Rope
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
| Item number | Model | Rated load (kN) | Applicable wire rope(mm) | Weight (kg) |
| 13154 | SKG30N | 30 | 9~11 | 4.6 |
| 13155 | SKG50N | 50 | 11~15 | 6.5 |
| 13156 | SKG70N | 70 | 16~18 | 8.5 |
| 13157 | SKG120N | 120 | 19~21 OR 22~24 | 13.6 |
| 13158 | SKG200N | 200 | 26~30 | 32.5 |
Usage:70Kn Cable Pulling Clamp SKG70N Gripping Anti Twisting Steel Wire Rope,it is applied to grip anti-twist steel rope.
Feature:70Kn Cable Pulling Clamp SKG70N Gripping Anti Twisting Steel Wire Rope
Single V type clipper gap. two side load symmetry acting force ,lighten weight .
Notes:70Kn Cable Pulling Clamp SKG70N Gripping Anti Twisting Steel Wire Rope
please writing clearly the detail specification of anti-twist wire rope.
