| Name: | Conductor Cable Pulling Clamp | Apply: | ACSR |
|---|---|---|---|
| Weight: | 1.0~18kg | Max Open: | 48mm |
| Model: | SKL | Max Load: | 80KN |
| High Light: | ACSR Conductor Come Along Clamp,80kN Self Gripping Clamps,Transmission Line Wire Grip Clamp |
||

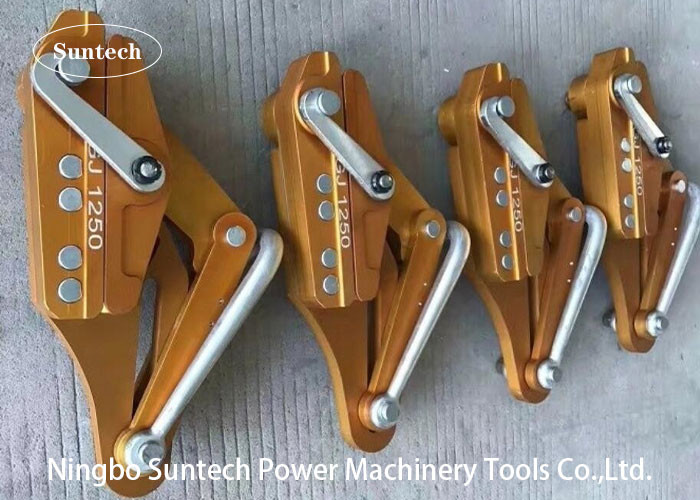

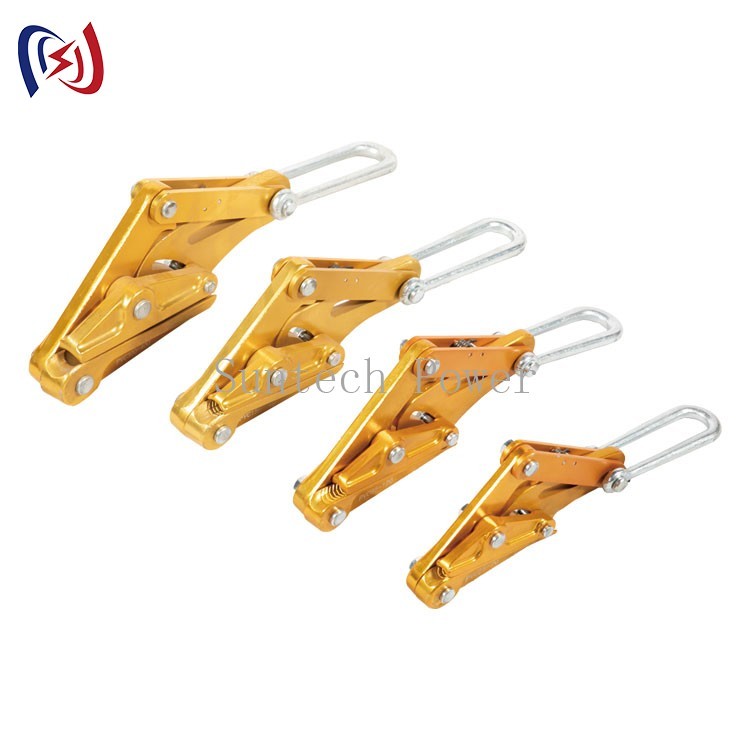

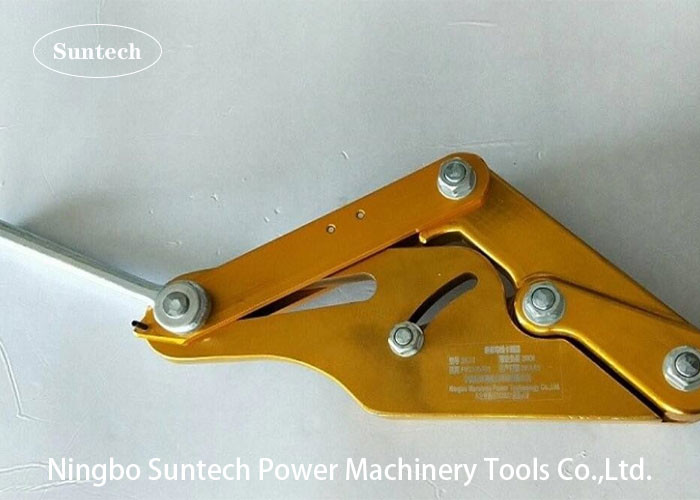

ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips
Brief Introduciton ACSR Conductor Cable Pulling Clamp , Automatic Aluminum Wire Pulling Grips
The conductor cable pulling clamp is made by high tensile forged carbon steel, finished with color zinc planted, after processing the special heat treatment, the wire pulling gripper has strong tension stress, high meshing degree and not easy slip or distort.
Automatic Aluminum Wire Pulling Grips Technical Data
| Item No. | Model No. | Rated Load (KN) |
Applicable Conductor (ACSR-MM2) |
Max Open (MM) |
Unit Weight (KG) |
| 0201 | SKL-7 | 7 | 25~70 | 14 | 1.0 |
| 0202 | SKL-15 | 15 | 95~120 | 18 | 1.4 |
| 0203 | SKL-25 | 25 | 150~240 | 24 | 3.0 |
| 0204 | SKL-40 | 40 | 300~400 | 32 | 4.0 |
| 0205 | SKL-50 | 50 | 500~630 | 36 | 6.6 |
| 0206 | SKL-40G | 40 | 400 | 32 | 4.3 |
| 0207 | SKL-50G | 50 | 500 | 34 | 7.0 |
| 0208 | SKL-50GA | 50 | 630 | 36 | 7.3 |
| 0209 | SKL-60G | 60 | 720 | 38 | 9.2 |
| 0210 | SKL-70G | 70 | 900 | 42 | 14.0 |
| 0211 | SKL-80G | 80 | 1000 | 45 | 18.0 |
| 0212 | SKL-80GA | 80 | 1200 | 48 | 18.0 |
FAQ:
1. Are you a manufacturer or a trading company?
We are a professiona stringing tools and equipment manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
