Place of Origin: | Ningbo,China |
Brand Name: | Suntech Power |
Certification: | ISO9001,CCC |
Model Number: | ACSR |
Minimum Order Quantity: | 5000m |
---|---|
Price: | Get the newest price |
Packaging Details: | Iro-wooden Drum |
Delivery Time: | 15 workdays |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3000Ton/Month |
Name: | Low Voltage Electric Power Cable | Model Number: | BS 215 |
---|---|---|---|
Application: | Overhead | Type: | High Voltage |
Conductor: | Aluminum Conductor Steel Reinforcrd | Standard: | IEC61089 |
High Light: | Overhead ACSR Aluminum Conductor Cable,Aluminum Conductor Cable 175mm2,Power Transmission Overhead Aluminum Wire |

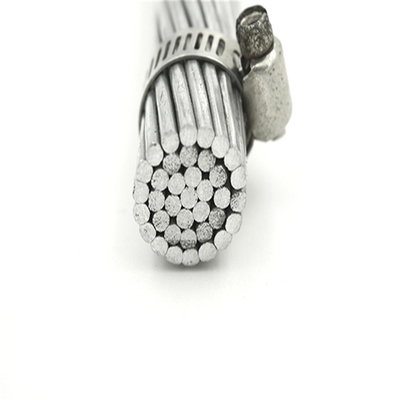

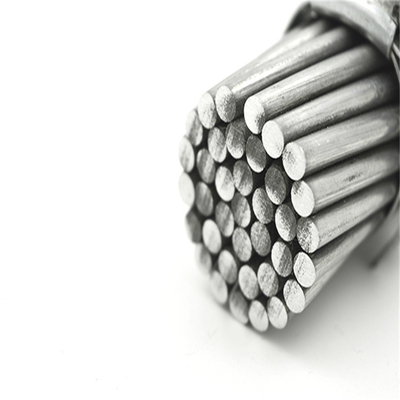

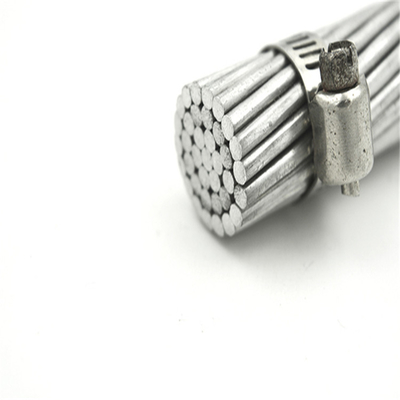

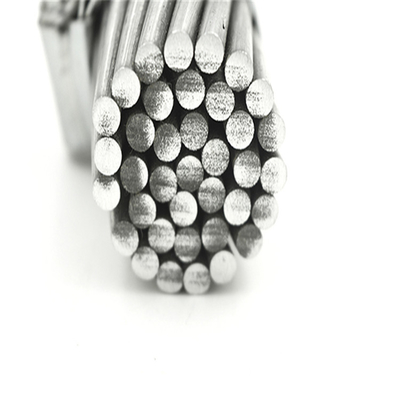

High voltage overhead cable aluminum conductor steel reinforced lynx 175mm2 ACSR conductor for power transmission
1.Product Description
ACSR (Aluminum Conductor Steel Reinforced) Cable consisting of galvanized steel core, which surrounded by concentric layers of aluminum wire, and grease if necessary.
2.Application
ACSR, AAC, AAAC,ASCSR&ACAR conductor widely used in power transmission lines with various voltage levels. Since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys etc aerial line.
3.Standard
IEC61089, BS215, ASTMB232, CSA C49, DIN48204, JIS C3110, and customers’ special Specifications
4.Characteristics
1. high tensile strength, allowing larger spans runs.
2. better sag properties, allowing longer span lengths.
3. economic design.
4. best suited for transmission lines with long spans.
PACKAGING&SHIPPING
Different package for customer choose !
For the Overhead Conductor(AAC AAAC ACSR ACAR ACSR/AW)/ABC/Concentric cable (aluminum or copper),we usually use the standard wooden drum to package as the belowing picture.We can design the different package types according to the customer's requirements.
BEST SERVICES!
1.Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM /ODM
2.Own Factory: Reliable source of raw materials,we can offer you the factory price.
3.Free sample: Free Sample to provide ,but the sample freight must be paied by customers;
4.Speed Delivery: 15-30 days,Professional transport team.
5.All type test: Professional technical equipment ensure the high quality.
6.Warranty period: Free product warranty period is usual 3-5 years.
