Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SCO35 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Box with Pattets For Shipping |
| Delivery Time: | 7 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 90000PCS Per Month |
| Product Name: | 35kv Cutout Switch Fuse | Safety Standards:: | IEC |
|---|---|---|---|
| OEM: | Available | Rated Voltage: | 33KV |
| Material: | Composite Polymer | Rated Current: | 100A |
| High Light: | 35kv High Voltage Fuse Cutout,Ceramic Dropout Fuse,Outdoor Fuse Cutout |
||

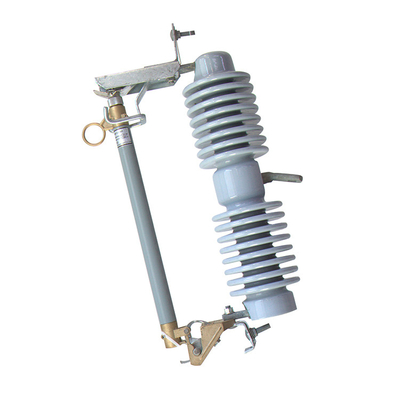

High Voltage Outdoor Ceramic Dropout Fuse 35kv Cutout Switch Fuse
The drop fuse is composed of two parts:
An insulating bracket and a fuse tube. The static contact is installed at two ends of the insulating bracket, the movable contact is installed at both ends of the fuse tube, and the fuse tube is composed of an inner arc extinguishing tube and an outer layer.
It consists of a phenolic paper tube or an epoxy glass tube. The load drop fuse enhances the elastic auxiliary contact and the arc extinguishing cover to divide and combine the load current.
1. Small size,Light weight,resistance to impact,no collision damage during transportation,flexible installation,suitable for use in the switch cabin.
2. Special structure,the overall compression molding,no air gap,good sealing performance,moisture-proof and explosion-proof 3. Large creepage distance,good hydrophobicity,strong stain resistance,stable performance and reduce operation maintenance. 4. Unique formula of zinc oxide varistor, small leakage current,slow aging,long service life.
5. With DC reference voltage,rectangular flow capacity and high current and large current withstand capacity are higher than standard requirement.
| porcelain drop out fuse product parameters | ||||||||
| Type | Rated voltage (KV) |
Rated current (A) |
Breaking current (A) |
Lightning Impulse voltage(BIL) |
Power frequency wihstand voltage |
Creepage distance |
Weight (kg) |
Dimensions (cm) |
| ST3-24/100 | 24-27 | 100 | 10000 | 150 | 65 | 540 | 11 | 51×38×16 |
| ST3-24/200 | 24-27 | 200 | 12000 | 150 | 65 | 540 | 11.5 | 51×38×16 |
| ST3-24/100F | 24-27 | 100 | 10000 | 150 | 65 | 540 | 11.5 | 51×38×16 |
| ST3-24/200F | 24-27 | 200 | 12000 | 150 | 65 | 540 | 12 | 51×38×16 |
| ST4-33/100 | 33-36 | 100 | 10000 | 170 | 72 | 680 | 12 | 60×41×14 |
| ST4-33/200 | 33-36 | 200 | 12000 | 170 | 72 | 680 | 12.5 | 60×41×14 |
| ST4-33/100F | 33-36 | 100 | 10000 | 170 | 72 | 680 | 12 | 60×41×14 |
| ST4-33/200F | 33-36 | 200 | 12000 | 170 | 72 | 680 | 12.5 | 60×41×14 |
