Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech Tower |
| Certification: | ISO, CE |
| Model Number: | Galvanized Guyed Mast |
| Minimum Order Quantity: | 1 Tower |
|---|---|
| Price: | Get The Newest Prices |
| Packaging Details: | Exported Containers |
| Delivery Time: | 30-35 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 80000 Metric Ton/Metric Tons Per Year |
| Product Name: | Galvanized Guyed Mast | Material List: | Steel Q355 & Q245 |
|---|---|---|---|
| Height: | 0-100m | Surface Treatment: | Hot-dip Galvanized |
| Wind Speed: | 110~160km/h 3 Second Gust | Lifetime: | At Least 30 Years |
| High Light: | Steel Q355 Guyed Mast,Galvanized Guyed Mast |
||
Galvanized Guyed Mast For Telecommunication With Related Accessories
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.
Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.
Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.
Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.
Transmission Line Steel Tower & Substation Structure- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code |
1. Chinese National Standard: a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line 2. American Standard: a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures b. ACI 318-02 Building Code Requirement for Structure Concrete |
| 2 | Design Software | PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc |
| 3 | Design Loading | As per requirement and specification by Clients worldwide. |
| 4 | Load test/destructive test | We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing. |
| 5 | Voltage | 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line |
| 6 | Hot-dip galvanization | ISO 1461-2009, ASTM A123 |
| 7 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 8 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard |
| 9 | Tower Type | Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower |
| 10 | Tower Type | Suspension Tower, Tension Tower, Dead Tower, Substation Structure |
| 11 | Warranty | Tower structures: 10 years |
| 12 | Return Period | 50 Years |
| 13 | Transportation | We are very close to the biggest port in the world which is our advantage for sea transportation. |
| 14 | Quality Control |
Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality We treat the quality first and 100% inspection ratio. |
Production Process
Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical documents from our client.

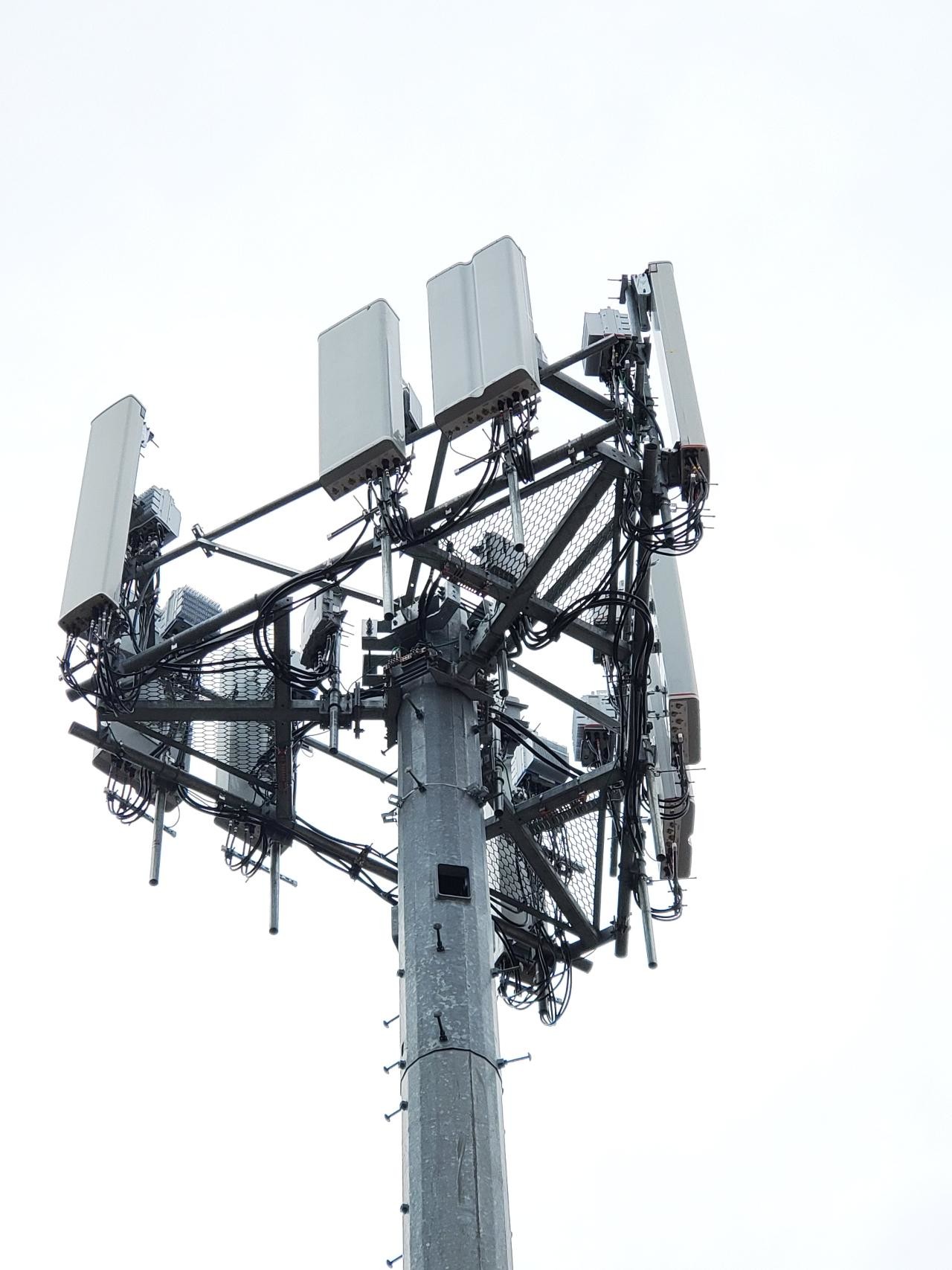

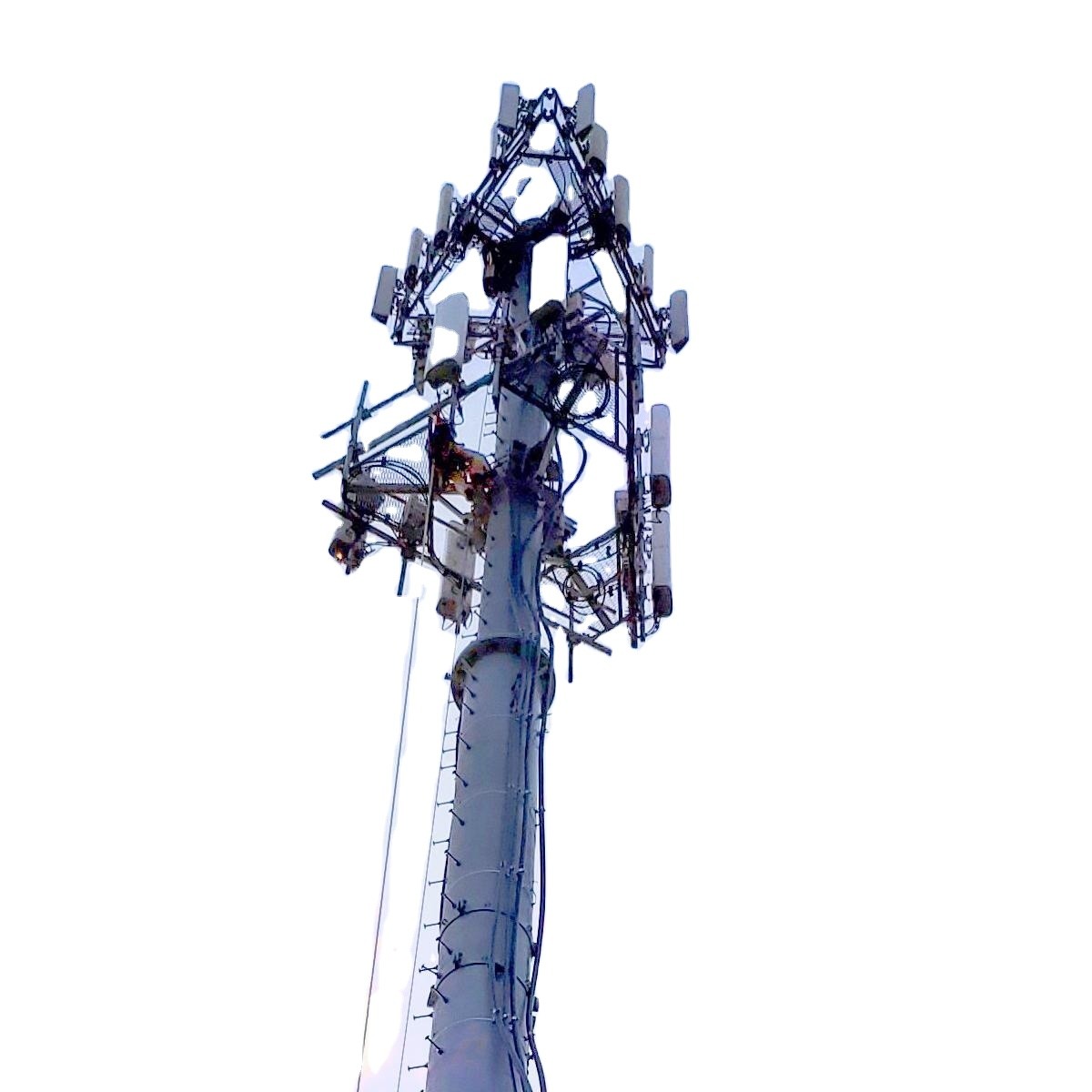

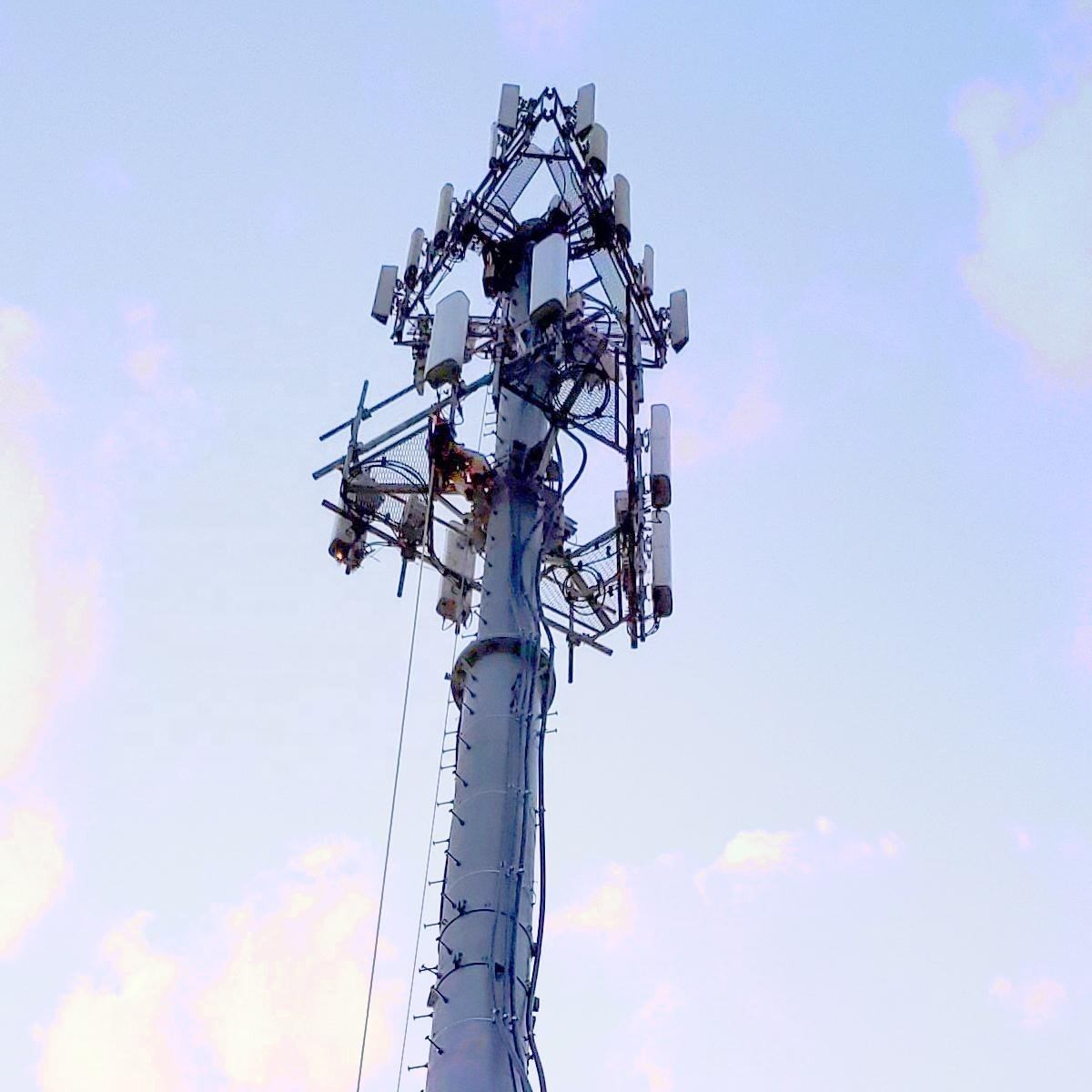

Monopole cell tower telecom toweris a type of signal transmission tower, also called a signal transmission tower or a signal tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole), lifting communication tower, and movable communication tower.
Our Services
Our services include preliminary layouts, writing of contract specifications, bid solicitations, review of bid packages, final designs, inspections, project
management, and professional engineering certification. In addition to the fabrication of monopoles, self-supporting and guyed towers, we also can provide
fabrication and installation details. We provide structural analyses of telecom structures in accordance with applicable codes (Electronic Industries
Association,China Standard, American National Standards Institute, Uniform Building Code, and others).
