Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | MV Insulator |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Get the newest price |
Packaging Details: | Exported Packages |
Delivery Time: | 25 days after deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 8000PCS PER WEEK |
Product Name: | Insulator | Material: | Porcelain |
---|---|---|---|
Application: | Electrice Power | Rate Voltage: | 0.4-36kV |
Tensile Strength:: | 89KN | Color: | Gray Or Brown |
High Light: | MV Transmission Line Ceramic Spool Insulator,89KN Ceramic Spool Insulator,36KV Transmission Line Insulator |

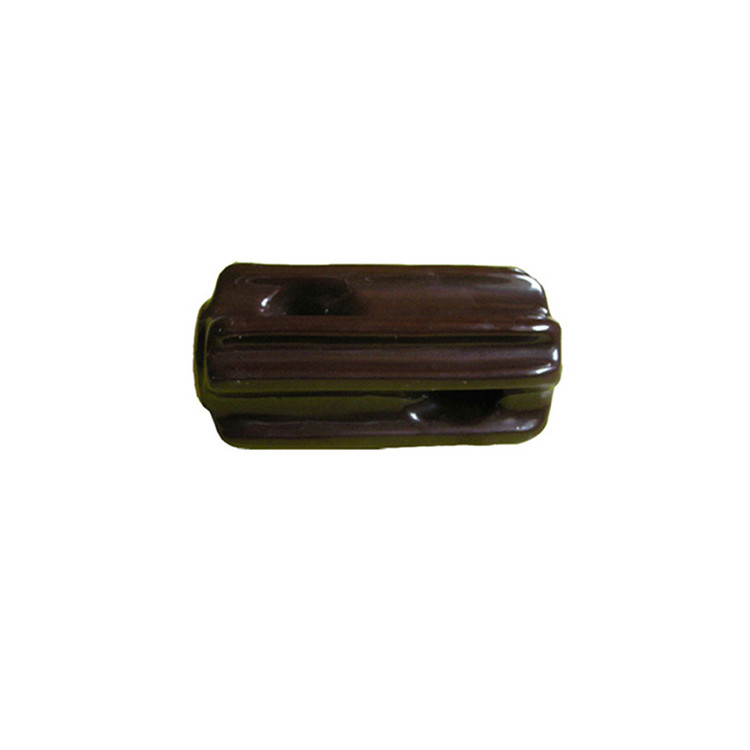

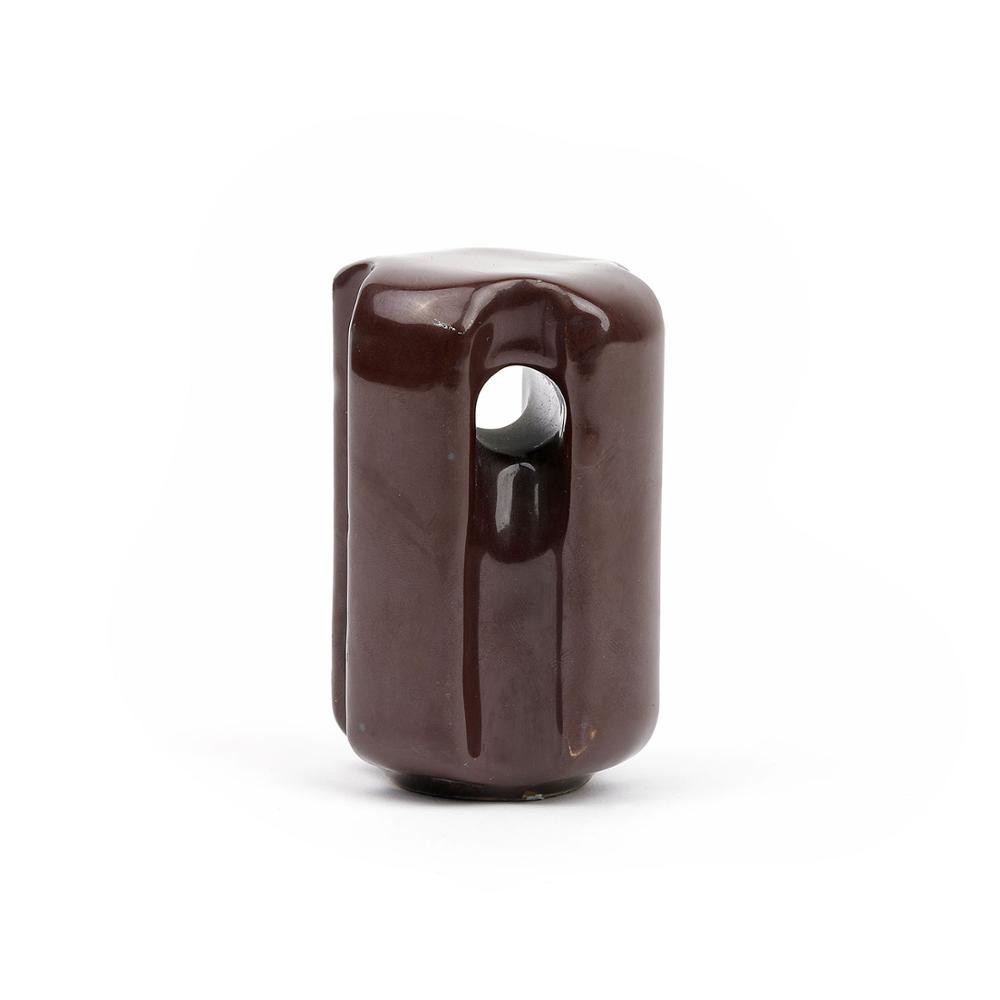

Ceramic Stay Spool Insulator For MV Transmission Line Stain Insulators For Lines
The composite insulator is a composite structure insulator composed of organic silicon rubber synthetic materials, which is mainly composed of hardware, umbrella skirt sheath, core rod, bonding layer and equalizing ring. The umbrella cover made of silicone rubber material is used to ensure the external insulation of the product, and the high-strength epoxy lead rod provides internal insulation of the product and bears the mechanical load. This kind of composite insulator is used to support and fix the bus bar and the live conductor. The specially designed umbrella skirt is used to increase the creepage distance, so that there is sufficient distance and insulation between the live conductor or between the conductor and the earth. It is in the transmission line It plays a major role in ensuring the use and operating life of the entire line. The company’s composite insulators adopt a new process of integral moulding of high-quality silicone rubber umbrella sleeves and integral crimping of core rods and hardware ends. It has superior mechanical properties, good pollution flashover resistance, excellent electrical corrosion resistance, and good aging resistance. High operating efficiency, light weight, and high reliability.
