Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | HLPI-11/12.5C450 |
Minimum Order Quantity: | 100 SETS |
---|---|
Price: | Get the lastest price |
Packaging Details: | Exported Cartons and Container |
Delivery Time: | 25 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3000PCS PER WEEK |
Product Name: | Polymer Horizontal Stand Insulator | Material: | Composite Polymer |
---|---|---|---|
Usage: | High Power Voltage | Rate Voltage: | 11KV |
Tensile Strength:: | 4KV | Type: | Polymer Insulator |
High Light: | 4KN Transmission Line Insulator,IEC 60282-2 Transmission Line Insulator,11KV Polymer Line Post Insulators |

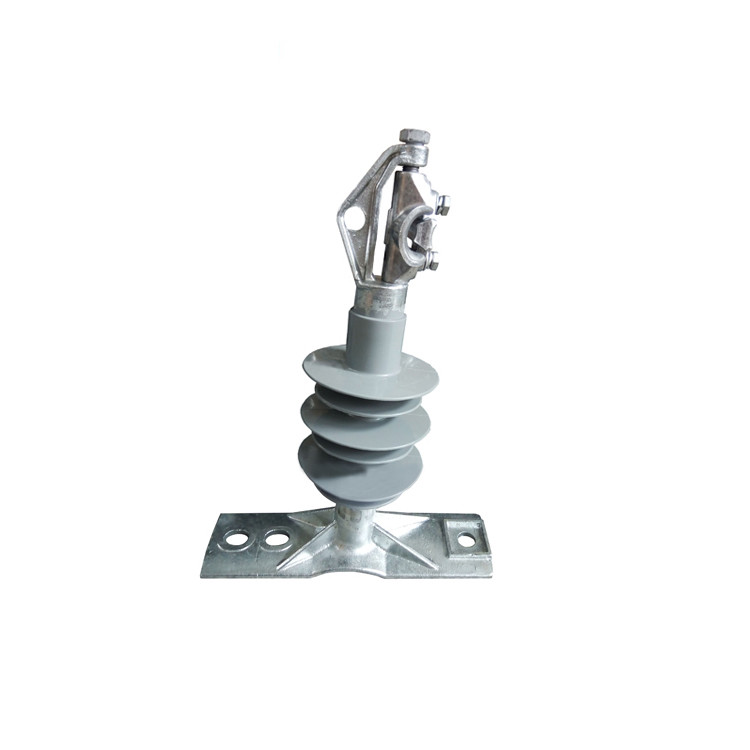

11KV Horizontal type Polymer Line Post stand off Insulator
This insulator is applied to high voltage power line service. It is produced according to IEC 61952 and the installation size of top and base is the same as porcelain type line post insulator. and brittle failure proof, light weight, easy for installation,And it has features of good hydrophobicity,
anti-ageing, anti-leakage trace and electric erode proof, tensile strenght and bending strength, strong mechanical strength, shock resistance, good quake proof They can replace each other.
Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.
SUNTECH has been thrived on supplying the products according to the international standard such as 61952,IEC 61109,IEC 60099-4,IEC 60282-2,etc.With scientific administration,professional engineers,highly trained technicians and skilled workers,SUNTECH is capable to produce more than 2 million units of the main electics in best quality annually,almost all of its products have been made for overseas markets and well sold to USA,South Africa,Vietnam,Korea,South America,South Asia etc.Over 50 countries worldwide.Some of its products have already been granted IEC certificates and have won high reputation around world market.
In order to meet new challenge and satisfy increased customers’ demand on our products and quality,SUNTECH will consistenly keep on updating and developing more products for new and old clients. We are looking forward to your mutual cooperation and support as usual.
Technical Parameters:
Product Model |
Rated Voltage |
Rated mechanical Bending load(KN) |
Overall Height H(mm) |
Insulating Distance L(mm) |
Min Creepaqe Distance (mm) |
Lighting Impulse Withstand Voltage (peak)(kv) |
P.F.Withstand Voltage (virtual value) (kv) |
HLPI-11/12.5C450 | 11 | 12.5 | 425 | 177 | 450 | 110 | 30 |
HLPI-11/8C450 | 11 | 8 | 374 | 169 | 450 | 110 | 30 |
