Place of Origin: | NINGBO CHINA |
Brand Name: | Suntech |
Certification: | ISO,CE |
Model Number: | SHSQN,SHDN |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get the newest price |
Packaging Details: | Exported Wooden Boxes and pallets |
Delivery Time: | 5-7 workdays |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 sets per Month |
Material: | Nylon , Steel Frame | Name: | Pulley Conductor Block |
---|---|---|---|
Use: | Construction Works | Apply: | Pulling Coductor In Site |
Size: | 660X100,660X110 Or Customized | Capacity: | 6T |
High Light: | Bundled Conductor Triple Pulley Block,660mm Triple Pulley Block,6T Cast Steel Triple Sheave Block |

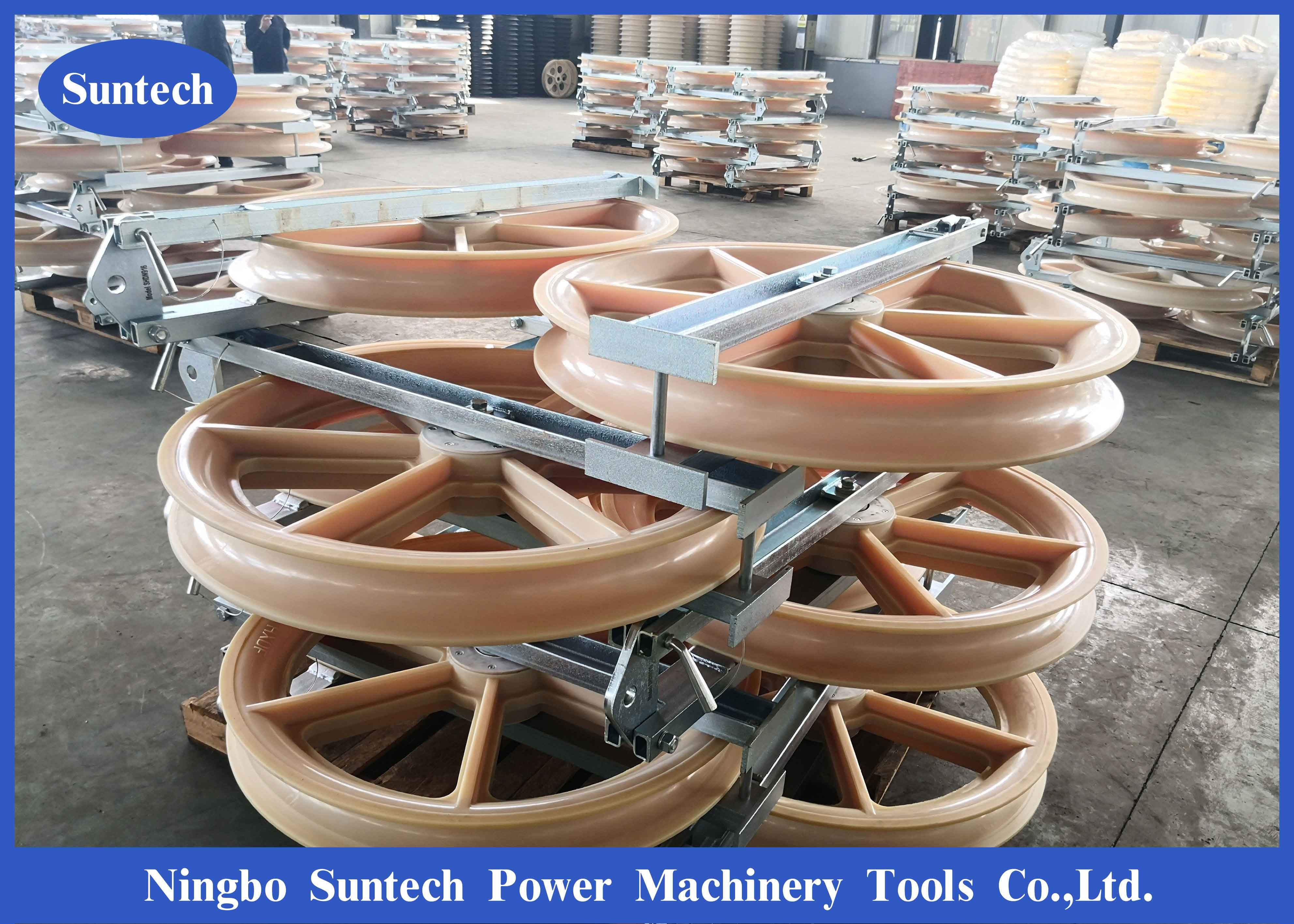

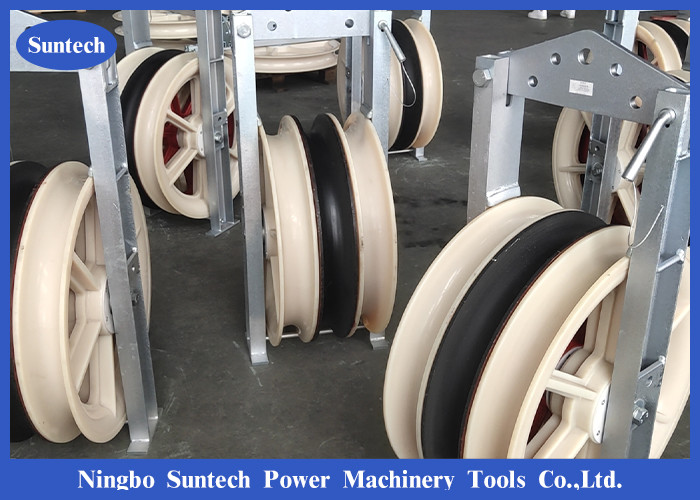

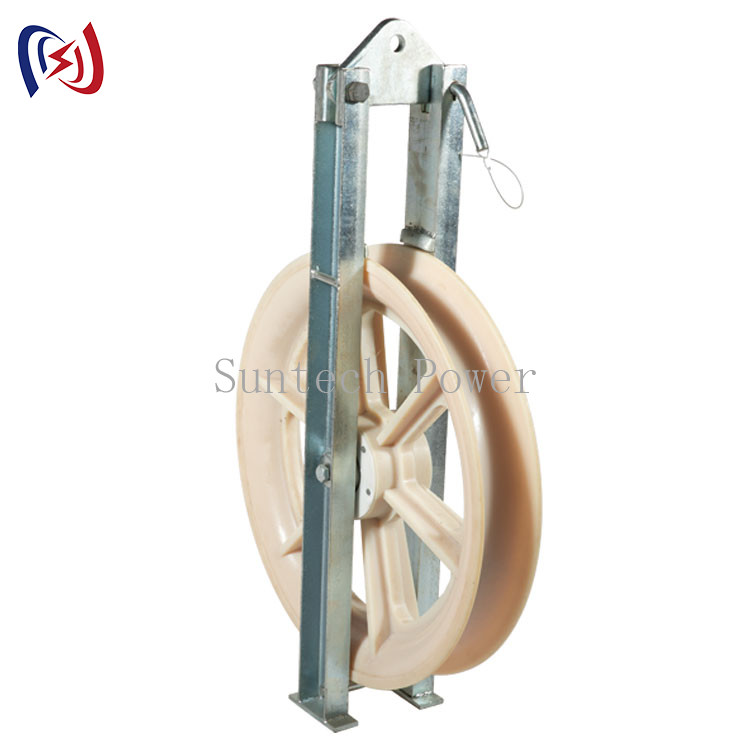

Transmission Line Bundled Triple Conductor Pulley Block 660mm With Cast Steel Sheave
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.
We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.
Application:
Widely used in overhead power line construction. Used to release conductors. It can be passed byconnectors, swivel joints.
A block and tackle system which combined with many pulleys is often in conjunction with a winch, mast or other lifting equipments
and it is usually used in construction and installation work like lifting tower, stringing, hoisting works. It can be also used in lifting
and hoisting works of dock, shipyard, warehouse and so on.
Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
10122 | SHS660 | 3 | 40 | 100 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
10123 | SHW660 | 5 | 60 | 150 | |
10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
10125 | SHSLN660 | 3 | 40 | 86 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
10126 | SHWLN660 | 5 | 60 | 120 | |
10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
10128/10128A | SHWQN660 | 5 | 60 | 110 | |
10130 | SHQ660A | 7 | 75 | 190 |
Middle :cast steel sheave Conductor : MC nylon sheave |
