Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | SHG |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Get the lastest price |
Packaging Details: | Exported Cases and Containers |
Delivery Time: | 7-10 days after payment |
Payment Terms: | L/C, T/T,, Western Union |
Supply Ability: | 1000pcs per month |
Sheave: | Aluminum Alloy And Nylon | Type: | Skyward And Hook |
---|---|---|---|
Max: | 2T | Model Name: | Stringing Blocks |
Apply: | Overhead Line | Application: | Site Work |
High Light: | 2t Stringing Blocks,2t Overhead Line Stringing Blocks,Skyward Hooked Stringing Blocks |

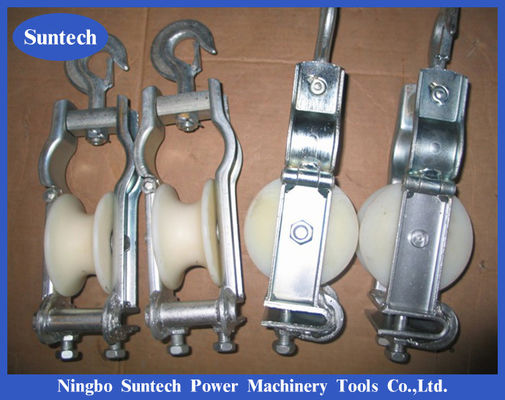

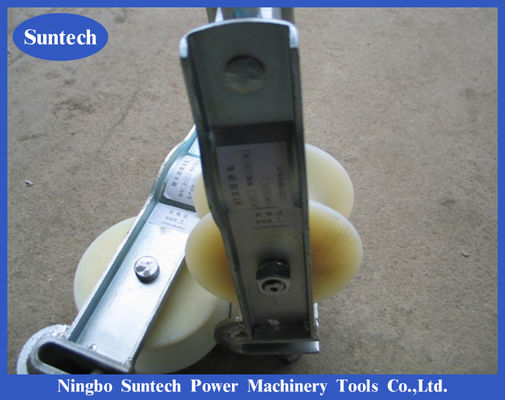

Dual-Use Sitting and Hanging Type Wire Rope Conductor Pulley Stringing Block
They have are used to support conductors,OPGW,ADSS, communicatio lines. The sheave of the pulley blocks are made from higth strength nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel. All kinds of pulley blocks can be manufactured according
to the customers's requirements. Product can be used in hanging type stringing block or skyward stringing block.
Item number | Model | Rated load (kN) | Outside diameter×width (mm) | Weight (kg) | Remark |
10261 | SHG-0.5 | 5 | φ80x50 | 2.1 | Aluminium sheave |
10263 | SHG-1 | 10 | φ160x40 | 3.2 | |
10264 | SHG-2 | 20 | φ120x58 | 3.6 | |
10271 | SHGN-0.5 | 5 | φ80x50 | 1.9 | Nylon sheave |
10272 | SHGN/0.5 | 5 | φ120x30 | 1.8 | |
10273 | SHGN-1 | 10 | φ160x40 | 2.6 | |
10274 | SHGN-2 | 20 | φ120x58 | 3.4 |
