Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO,CE |
Model Number: | 10010L-10055L |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Get newest price |
Packaging Details: | Standard export package or as your requirement |
Delivery Time: | 5-7days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs per month |
Name: | Aluminum Pulley Sheave | Material: | Aluminum |
---|---|---|---|
Performance: | Durable, Corrosion Resistant | Size: | 80-1160mm |
Weight: | 0.4-50kg | Feature: | High Load And Light |
High Light: | Rubber Lined Conductor Stringing Blocks,Aluminum Sheave Stringing Blocks,1160mm Conductor Stringing Blocks |

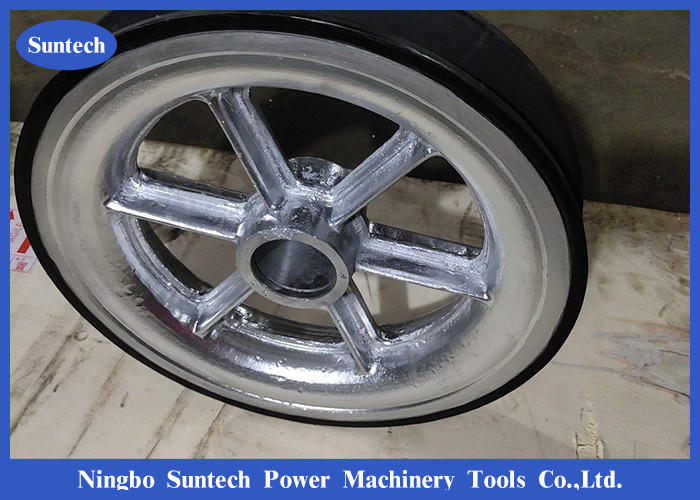

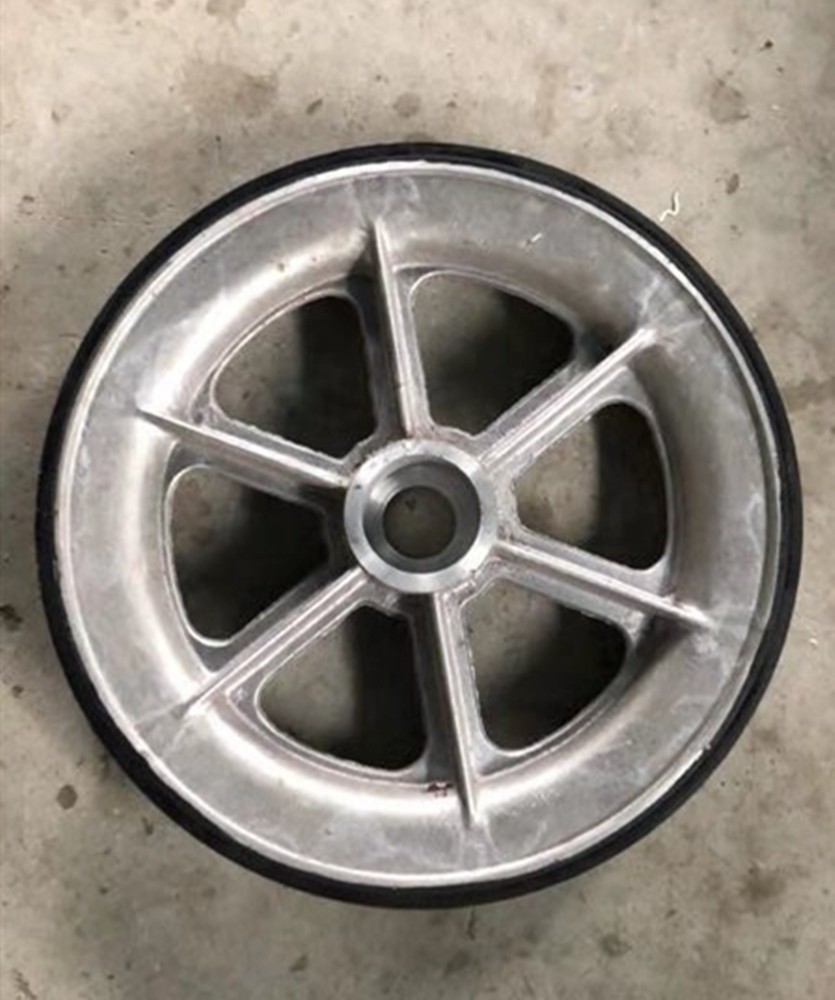

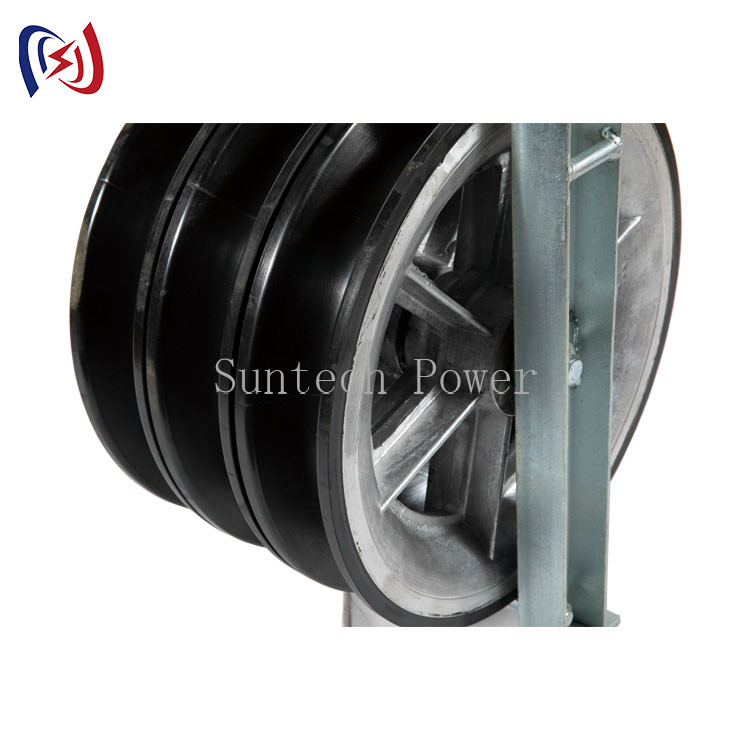

Transmission Line Aluminum Sheave Rubber Lined Conductor Stringing Blocks

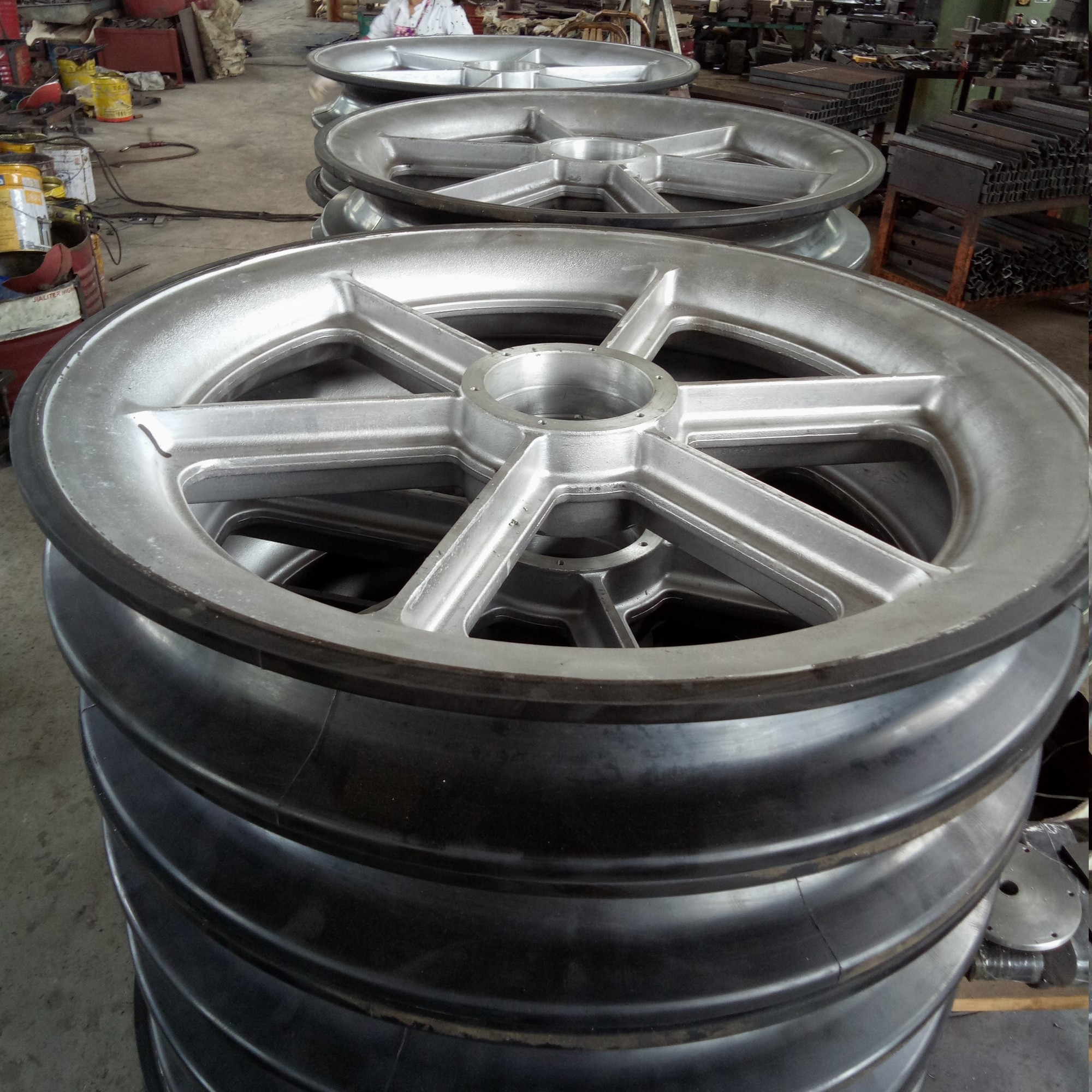

Aluminum Pulleys & Sheaves is the latest products developed by us,which is mainly used in large hoist as the passive ture,
to lighten the weight of itself and prolong the longevity of cable.
Features:
(1) Light weight: reducing dead weight at the end of a boom, which provides more greater stability and lifting capability.
(2) Improved wire rope life: self-lubricating, hardness lower than steel rope.
(3) Improved the property of crane ,cable , little or non maintenance.
Specifications
Item number | Model |
Diameter(mm) |
Width(mm) |
Blank weigh(kg) |
10010L | 80*50 | 80 | 50 | 0.2 |
10011L | 120*35 | 120 | 35 | 0.3 |
10012L | 120*58 | 120 | 58 | 0.5 |
10013L | 120*80 | 120 | 80 | 0.6 |
10014L | 120*130 | 120 | 130 | 0.7 |
10015L | 120*200 | 120 | 200 | 1.2 |
10016L | 140*160 | 140 | 160 | 0.9 |
10017L | 140*210 | 140 | 210 | 1.1 |
10018L | 160*40 | 160 | 40 | 0.5 |
10020L | 160*230 | 160 | 230 | 1.7 |
10021L | 200*40 | 200 | 40 | 0.6 |
10022L | 200*60 | 200 | 60 | 0.8 |
10024L | 250*60 | 250 | 60 | 1.2 |
10026L | 270*60 | 270 | 60 | 1.6 |
10027L | 320*60 | 320 | 60 | 1.9 |
10028L | 320*80 | 320 | 80 | 2.2 |
10029L | 408*80 | 408 | 80 | 4.1 |
10050L | 508*75 | 508 | 75 | 6.0 |
10051L | 508*100 | 508 | 100 | 7.0 |
10052L | 660*100 | 660 | 100 | 10.0 |
10055L | 822*110 | 822 | 110 | 18.0 |
FAQ:
1. Can we ask for free samples?
Yes,we can send one small sample in nature color to confirm the material and texture,but freight collect.
2. What's your MOQ,can you accept small order?
Yes,we can accept trial orders.
3. Do you inspect the product? How?
Yes,each step of production and finished products will be carried out inspection by QC before shipping.100% qualified products handing to you.
4. What's your payment term?
We aceept T/T,Western Union,MoneyGram,etc.
5. Can you accept customized?
Yes,the style,size and texture,all can be customized as your require.
