11KN 33KV Porcelain Pin Type Insulator For Overhead Transmission Line

11KN 33KV Porcelain Pin Type Insulator For Overhead Transmission Line

  • 11KN 33KV Porcelain Pin Type Insulator For Overhead Transmission Line
  • 11KN 33KV Porcelain Pin Type Insulator For Overhead Transmission Line
11KN 33KV Porcelain Pin Type Insulator For Overhead Transmission Line
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: Pin Type Insulators
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Get the lastest price
Packaging Details: Exported Wooden Case
Delivery Time: 15-25 days after deposit
Payment Terms: L/C, T/T,, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Product Name: Porcelain Pin Insulator Material: Porcelain
Tensile Strength: 11KN Rated Voltage: 33KV
Application: Low Voltage Site: Transmission Overhead Line
High Light:

33KV Pin Type Insulator

,

11KN Pin Type Insulator

,

Porcelain Pin Insulator 33KV

33KV High Quality Porcelain Material Pin Type Insulator



Insulators are a special type of insulation control that can play an important role in overhead transmission lines. In the early years, insulators were mostly used for telephone poles. They were slowly developed at the end of high-type high-voltage wire connection towers. A lot of disk-shaped insulators were hung on it. It was designed to increase the creepage distance. Insulators should not fail due to various electromechanical stresses caused by changes in environmental and electrical load conditions, otherwise the insulators will not have a significant effect and will damage the use and operating life of the entire line.

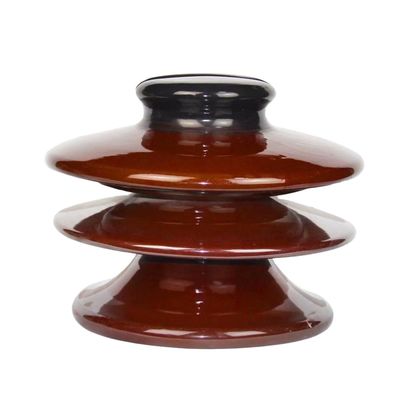

11KN 33KV Porcelain Pin Type Insulator For Overhead Transmission Line 0

Porcelain surface generally painted white glaze, brown glaze, according to the need to draw other glaze. The surface of iron cap and steel foot is all hot-dip galvanized. The push-pull type elastic locking pin of ball-type connection has two types: w-type and r-type, both of which are made of tin bronze, brass and austenitic stainless steel. Grooved cylindrical and hunchback cotter pins, the former having a hot zinc surface and the latter made of brass. The elastic locking pin, cylinder pin and other parts are supplied with complete sets of products.

Insulator according to the connection points ball type and trough type two kinds.

The same strength grade of regular and fouling resistance type insulator, using the same size ball and socket connections, can guarantee the swap.



Packaging & Delivery

Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 25 35 To be negotiated

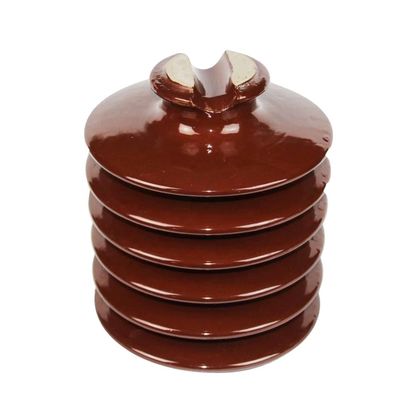

11KN 33KV Porcelain Pin Type Insulator For Overhead Transmission Line 1
