Galvanised Steel Tubular 25m Lattice Telecom Tower

Galvanised Steel Tubular 25m Lattice Telecom Tower

  • Galvanised Steel Tubular 25m Lattice Telecom Tower
  • Galvanised Steel Tubular 25m Lattice Telecom Tower
Galvanised Steel Tubular 25m Lattice Telecom Tower
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Telecom Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the newest prices
Packaging Details: Exported Containers
Delivery Time: 25-30 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Telecom Steel Tower Material: Steel Q235B/Q345B/Q420
Surface Treatment: Hot Dip Galvanised Usage: Telecommunication Tower
Application: Transmission Line Tower Lifetime: Over 30 Yeas, According To Installing Environment
High Light:

25m Lattice Telecom Tower

,

Tubular Lattice Telecom Tower

,

Tubular Telecommunication Telecom Tower

Galvanised Steel Tubular Tower 25m Lattice Telecom Mast ASTM JIS EN Material



The steel tubular tower structure has relative technical and economic advantages, and is suitable for

transmission towers that bear large loads.



Specifications:

Height 0-200 meters
Wind speed 0-320 km/hr (3s gust)
Foundation type Independent foundation/Raft foundation/Pile foundation
Geological condition Soft ground/ Mountain ground/ Other
Shape Triangular / Square
Connection type Bolts/Nut
Design code ANSI/TIA-EIA-222-G
Material grade Q235/345
Deflection <1/1000 or as client's requirement
Design load As per client's requirement
Design life 30/50/100 years
Quality system ISO 9001:2008



Steel tubular tower is a traditional superior product of our factory. Especially the self developed multi-station

flange processing system has significantly improved the precision of geometric tolerance for each work piece.

Thanks to such a process, the 190m high Huangpu large crossing steel tube tower was appraised as a national

quality project. Our factory is supplied with advanced equipment such as 2400-ton bending machines, line

cutting machines, stitch welding machines, and CNC plasma cutting machines. With these equipment, it is

capable to produce equal-diameter tubes and cone-shaped tubes in polygon and round shape. The CNC

stitch welding machine can realize one-time moulding of stitch welding for steel tube and the welding line

can achieve double-size moulding through single welding. Our factory has been highly affirmed for its production

capacity and product quality.



Steel tubular tower members withstand low wind pressure, large cross-section bending rigidity, simple

structure, and clear force transmission, which can give full play to the material's bearing performance. On

the one hand, it can reduce the weight of the tower and reduce the foundation force; on the other hand,

it can help to increase extremes. Ability to resist natural disasters under conditions. When the strength and

stability calculation requirements are met, the use of a steel pipe tower with a relatively small wind pressure

body shape coefficient can significantly reduce the wind load on the tower body.



Voltage: Power transmission equipment/electric transmission line Angle Iron tower steel tubular tower

Voltage grade:35KV/66KV/110KV/220KV/330KV/500KV/750KV/800KV/1000KV

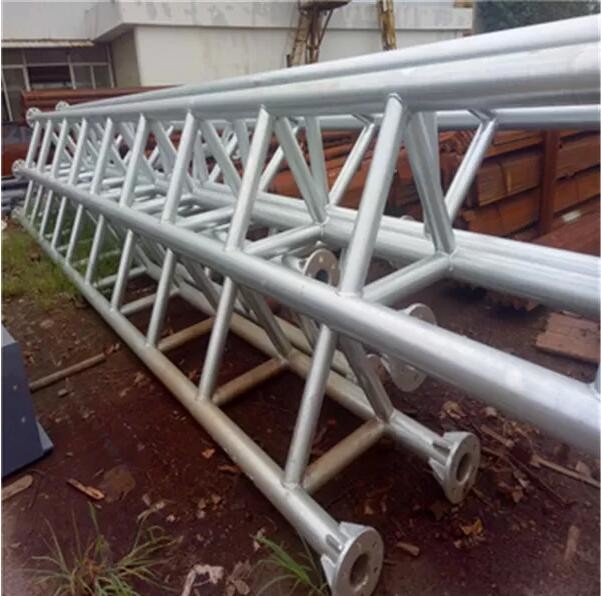

Galvanised Steel Tubular 25m Lattice Telecom Tower 0

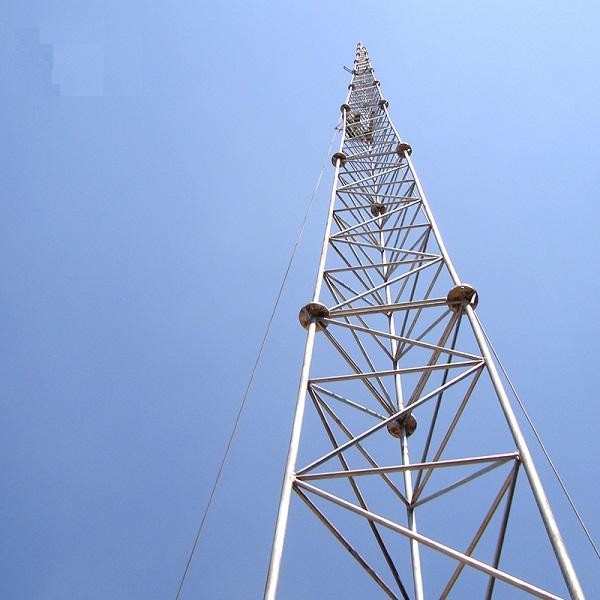

Galvanised Steel Tubular 25m Lattice Telecom Tower 1
