Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | Telecommunication Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Containers |
Delivery Time: | 30-35 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50000 Metric Ton/Metric Tons Per Year |
Product Name: | Lattice Tower | Type: | 3 Legged |
---|---|---|---|
Usage: | Mobile Signal | Height: | Customized |
Surface Coating: | Hot Dip Galvanization | Material: | Steel Q235B/Q345B/Q420 |
High Light: | Q420 Steel Tubular Tower,Q345B Steel Tubular Tower,Q235B Steel Telecommunication Tower |

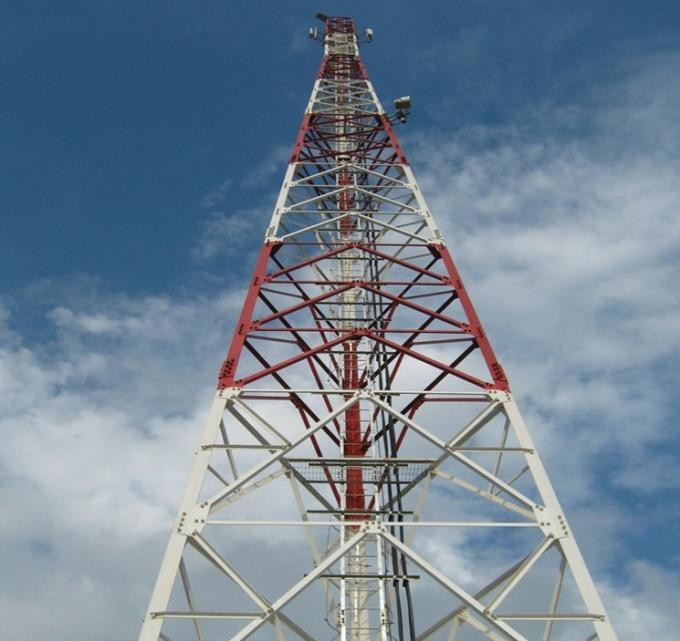

3 Legged Telecommunication Lattice Electrical Tubular Steel Tower

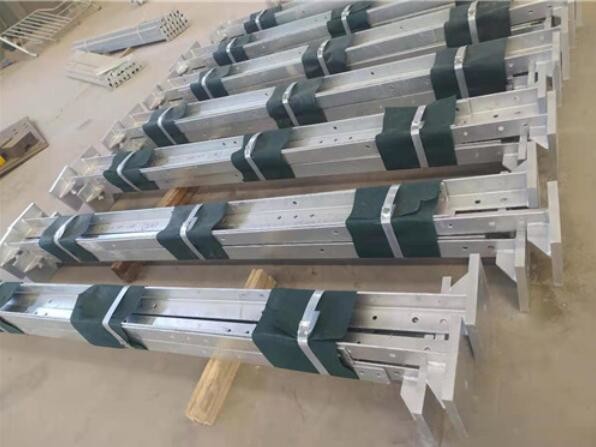

Self supporting tower usually is 3leg tower, and its material is steel pipe or angle steel. As for the
connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features:
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.
For more products
Monopole tower
Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance,
covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the
construction. Tower body adopt more reasonable section, which is connected through high strength
bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.
Guyed Tower
Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire.
Guyed tower is a common type of communication tower which is economical and practical. It is lighter and
cheaper than the others. It is very suitable for the geographical wide areas.
Type | Telecom Tower,Lattice Tower,Straight Pole ,Suspension Pole,etc. |
Suit for | Telecommunication, Broadcasting, etc |
Shape | Multi-pyramidal,Columniform, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc) |
Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52, and others equivalent steel material |
Standard | ISO 9001:2008 |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles | Slip joint , flange connected |
Wall Thickness | 2~30mm |
Height | From 9 meter to 100 meter |
Length of per section | Within 14m once forming without slip joint. |
Welding | flaw testing.Internal and external double welding makes the welding good Welding Standard :AWS ( American Welding Society ) D 1.1 |
Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard |
Base plate | Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement. |
Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
Production Process | Rew material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages→Delivery |
Contact Person: Peter
Tel: 86-13958364836
