Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO9001 |
Model Number: | Lattice Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Containers |
Delivery Time: | 25-30 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5000 Ton Per Month |
Product Name: | Lattice Steel Tower | Voltage Grade: | 10-750kv |
---|---|---|---|
Parts: | Steel Tower Bolts And Nuts | Function: | As A Frame Base Structure |
Usage: | Electric Power Line Transmission | Material: | 10-750kv |
High Light: | Q245 Pylon Transmission Tower,Q355 Pylon Transmission Tower,Q245 Angle Steel Tower |

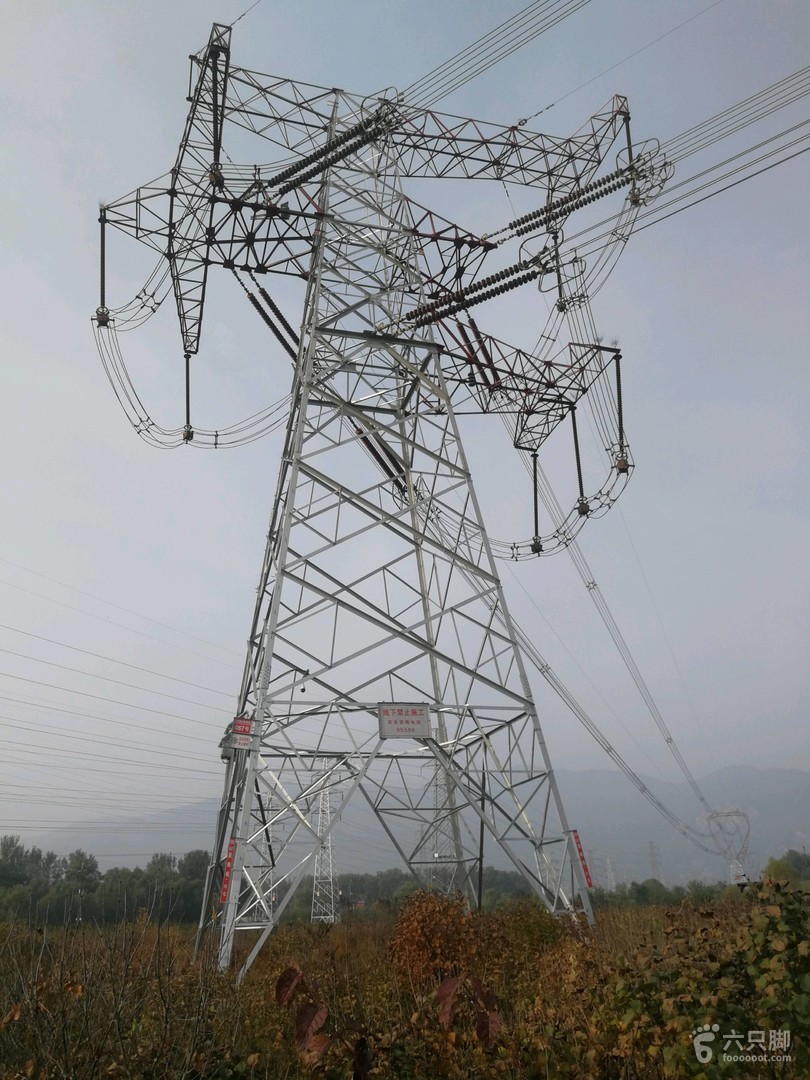

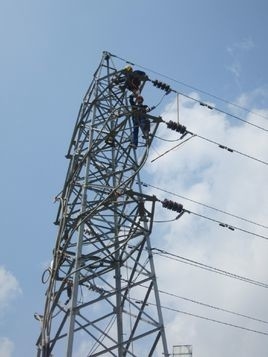

Q245/Q355 Electric Power Tower Angualr Steel Lattice Pylon Transmission Tower
Transmission lines tower are either monopolar or bipolar systems. With bipolar systems, a conductor arrangement with one conductor on each side of the tower is used. On some schemes, the ground conductor is used as electrode line or ground return. In this case, it had to be installed with insulators equipped with surge arrestors on the pylons in order to prevent electrochemical corrosion of the pylons. For single-pole Suntech transmission with ground return, towers with only one conductor can be used. In many cases, however, the towers are designed for later conversion to a two-pole system. In these cases, often conductors on both sides of the tower are installed for mechanical reasons. Until the second pole is needed, it is either used as electrode line or joined in parallel with the pole in use. In the latter case, the line from the converter station to the earthing (grounding) electrode is built as underground cable, as overhead line on a separate right of way or by using the ground conductors.
Competitive Advantage:
Why Us
1. Experienced staffs replying your inquiry in 24 working hours in fluent English.
2. Customized design is available. OEM&UBM are welcomed.
3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our
well-trained and professional engineers and staff.
4.Professional factory direct :Best price and timely delivery can be assured.
5. Very convenient transportation.
6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians
to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit
our company anytime.
In the whole pole and tower manufacturing industry, experienced engineers and designers make the
Company be available of designing accurately and timely and ensuring quality, safety and easy construction.
On the basis of an excellent design team, the Company further configures software of PLS-Tower,
AutoCAD, BOCAD and other CAD and updates the software in real time to ensure the software is the latest.
Supported by both domestic engineering company and Quito tower design center, could provide technical
consultant and design service within our scope of work. For Quito tower design center, most of the engineers
are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will
reduce the weight, and avoid the replacement on the profiles to save the working time.
Project management—Your Suntech project manager oversees all the details necessary to ensure
your project delivers as specified. What’s more, he/she communicates with you every step of the way.
Height | From 10M-100M or according to client’s requirement | |||||
Suit for | Electric Power Transmission and Distribution | |||||
Shape | Polygonal or Conical | |||||
Material | Normally Q235B/A36,Yeild Strength≥235MPa | |||||
Q345B/A572,Yeild Strength≥345MPa | ||||||
As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 | ||||||
Power Capacity | 10kV to 500kV | |||||
Tolerance of the dimension | According to client’s requirement | |||||
Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement | |||||
Joint of Poles | Slip joint, flanged connected | |||||
Standard | ISO9001:2008 | |||||
Length of per section | Within 13M once forming | |||||
Welding Standard | AWS(American Welding Society)D 1.1 | |||||
Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages | |||||
Packages | Packing with plastic paper or according to client’s requirement | |||||
Life Period | More than 30 years, it is according to installing environment |
