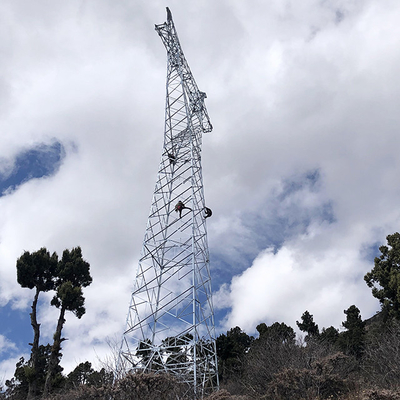

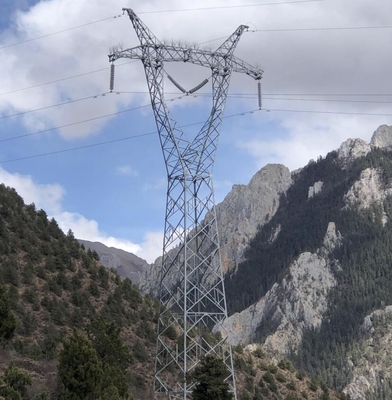

4 Legged High Voltage Galvanized Steel Lattice Transmission Tower

4 Legged High Voltage Galvanized Steel Lattice Transmission Tower

  • 4 Legged High Voltage Galvanized Steel Lattice Transmission Tower
  • 4 Legged High Voltage Galvanized Steel Lattice Transmission Tower
4 Legged High Voltage Galvanized Steel Lattice Transmission Tower
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Transmission Line Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the lastest price
Packaging Details: Exported Containers
Delivery Time: 35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 90000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Material: Steel Q345/Q245 Product Name: Angel Lattice Galvanized Transmission Line Tower
Voltage Capacity: 10KV-700KV Usage: Transmission Line
Lifetime: More Than 30 Years Application: Construction Works
High Light:

Galvanized Steel Lattice Transmission Tower

,

High Voltage Lattice Transmission Tower

,

4 Legged High Voltage Tower

4 Legged High Voltage Steel Power Tower Angel Lattice Galvanized Transmission Line Tower



Towers may be self-supporting and capable of resisting all forces due to conductor loads, unbalanced conductors, wind and ice in any direction. Such towers often have approximately square bases and usually four points of contact with the ground.

A semi-flexible tower is designed so that it can use overhead grounding wires to transfer mechanical load to adjacent structures, if a phase conductor breaks and the structure is subject to unbalanced loads. This type is useful at extra-high voltages, where phase conductors are bundled (two or more wires per phase). It is unlikely for all of them to break at once, barring a catastrophic crash or storm.

A guyed mast has a very small footprint and relies on guy wires in tension to support the structure and any unbalanced tension load from the conductors. A guyed tower can be made in a V shape, which saves weight and cost.



We are leading Chinese Tower manufacturer which have 10 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 20 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.



Transmission Electric Power Angle Steel Tower
Material Steel Q235 / Q345 / Q420
Voltage Grade 10 kV - 500 kV
Welding CO2 welding or submerged arc auto methods
Standard: AWSD1.1
Surface Treatment Hot Dipping Galvanized
Standard: ASTM123
Tension Strength (MPa) 360 MPa - 630 MPa
Certificate ISO9001:2008
Production Capacity 50,000 Metric Tons per Year
Method of marking of the members Hydraulic Press Stamping
Wind Pressure 5-180 KM/H
Life Time More than 30 years
Quality Control Each member will be checked by our QC team to ensure all members are qualified before delivery.



4 Legged High Voltage Galvanized Steel Lattice Transmission Tower 0
