IEC420 GB3804 Lightweight Indoor 12KV Load Break Switch

IEC420 GB3804 Lightweight Indoor 12KV Load Break Switch

  • IEC420 GB3804 Lightweight Indoor 12KV Load Break Switch
  • IEC420 GB3804 Lightweight Indoor 12KV Load Break Switch
  • IEC420 GB3804 Lightweight Indoor 12KV Load Break Switch
  • IEC420 GB3804 Lightweight Indoor 12KV Load Break Switch
IEC420 GB3804 Lightweight Indoor 12KV Load Break Switch
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: FN5-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get The Newest Price
Packaging Details: Exported Wooden Case
Delivery Time: 25-30 days after Payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Name: AC Hv Load Break Switch Altitude: Under 1000M
Ambient Temperature: -25℃-+40℃ Usage: High Voltage
High Light:

12KV Load Break Switch

,

GB3804 Load Break Switch

,

IEC420 Indoor Load Break Switch

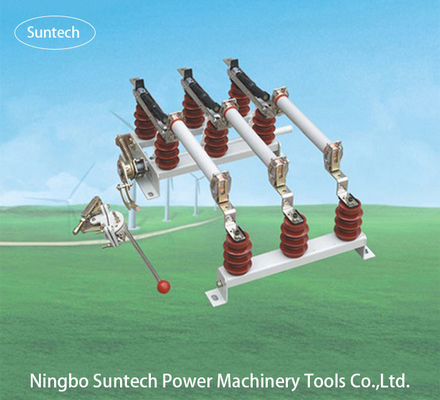

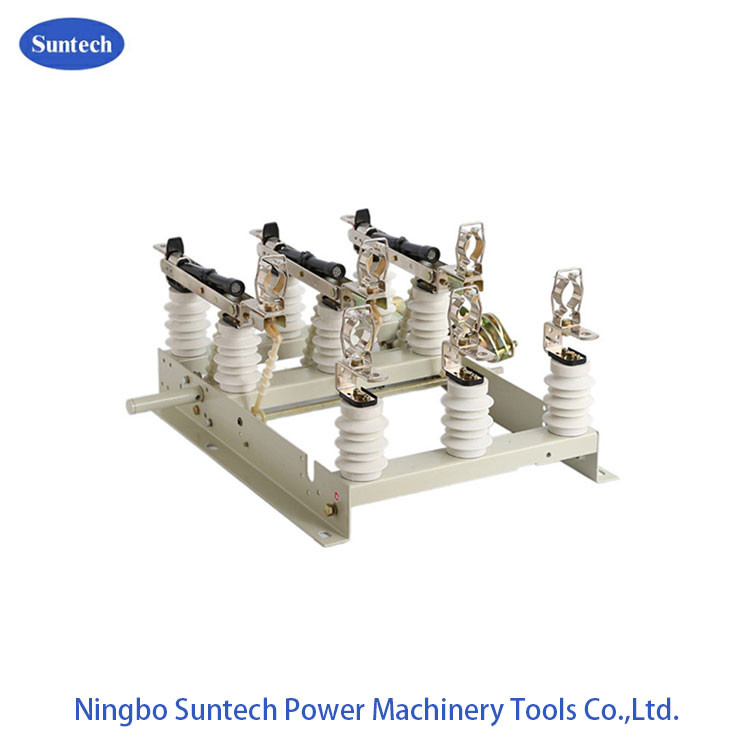

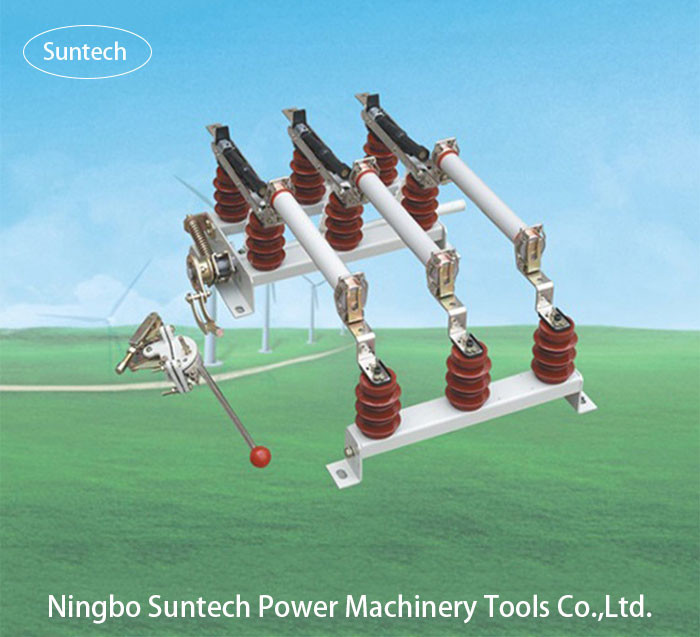

Light Weight Indoor AC High Voltage 12KV Load Break Switch



FN5- 12R(L) model indoor AC HV load break switch-fuse combination apparatus is developed and designed based on international technology and national power supply requirement, it passed all type tests and trial-operation inspections. The apparatus conforms to IEC420: AC LOAD BREAK SWITCH AND FUSE COMBINATION APPARATUS(1990 EDITION) and GB3804: 3-63KV AC HV LOAD BREAK SWITCH VOLUME AND LIGHT WEIGHT. Compared to international product it keeps up with technical level with small volume and light weight. It is applicable in ring main unit and prefabricated substations as well as 12kv line and power distribution system. The product realizes three working positions: power making. power breaking and earth. It applies to power system of rated voltage 6- 12kv, 50/60HZ breaking load current ober load current and short-circuit curent.



Technical Data

Rated voltage KV 1min frequency Voltage KV Rated Current A 4S thermal current A Dynamic current (peak)KA Rated breaking current A Short circuit close current KA
12 42 400 12.5 31.5 400 31.5
48 630 20 50 630 50



Standard

1. IEC420: AC LOAD BREAK SWITCH AND FUSE COMBINATION APPARATUS(1990 EDITION)

2. GB3804: 3-63KV AC HV LOAD BREAK SWITCH VOLUME AND LIGHT WEIGHT.

Ambient condition

1. The altitude: under 1000M.

2. The ambient temperature: -25℃-+40℃.

3. The relative humidity of air: monthly≤90%, daily≤95%.

4. Ampitude: Earthquake degree 8.

5. Aplication occasions should free from fire, inflammables, explosives,corrosives and severe vibration.

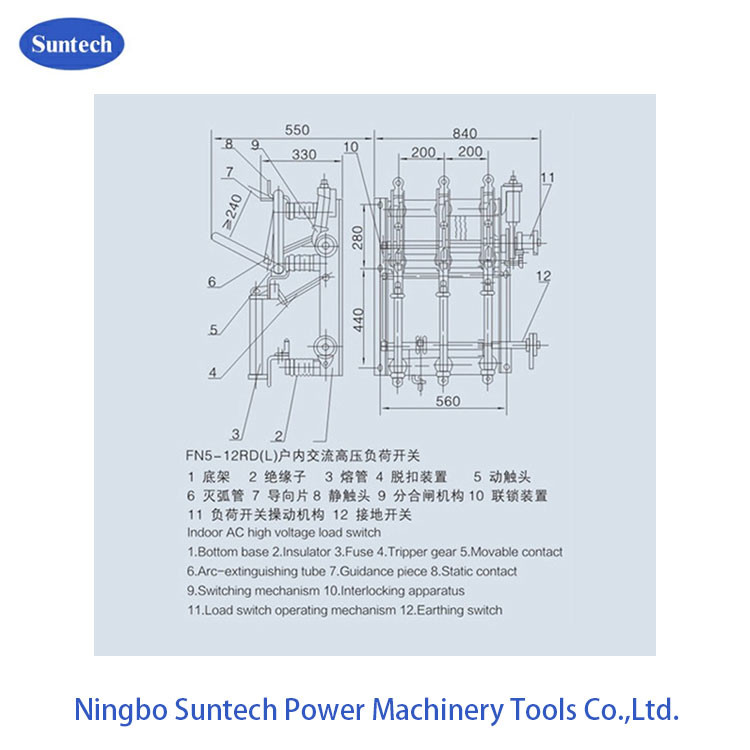

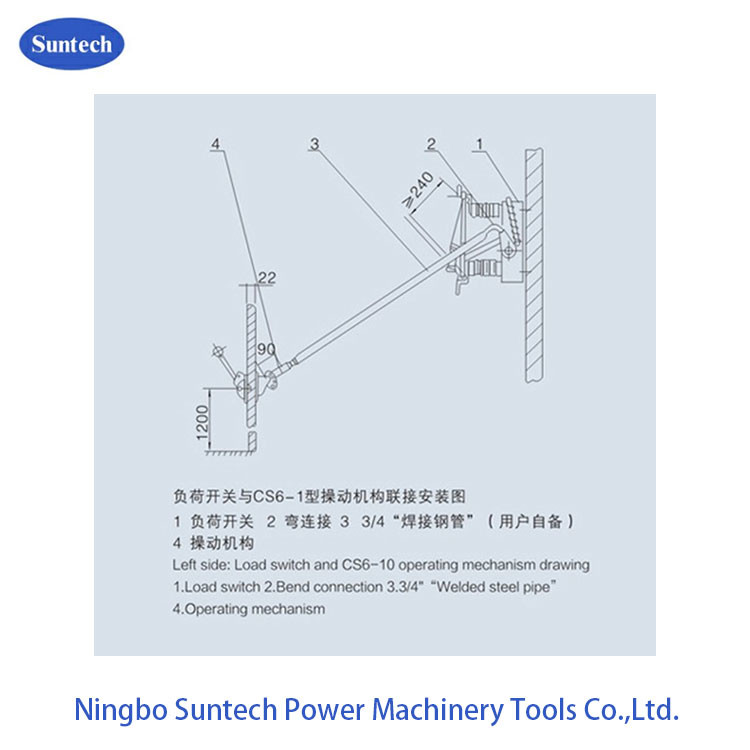

IEC420 GB3804 Lightweight Indoor 12KV Load Break Switch 0

IEC420 GB3804 Lightweight Indoor 12KV Load Break Switch 1



IEC420 GB3804 Lightweight Indoor 12KV Load Break Switch 2
