Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | GW9-15/600 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Get the newest price |
Packaging Details: | Exported Box and Carton |
Delivery Time: | 30-45 days after Payment |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 6000pcs per month |
Max. Current: | 600A | Max. Voltage:: | 15KV |
---|---|---|---|
Material: | Porcelain | Color: | Brown |
Standard: | IEC-60265, IEC-129 | Application: | High And Low Voltage |
High Light: | 15KV Isolate Switch,600A Isolate Switch,15KV Electrical Isolator Switch |

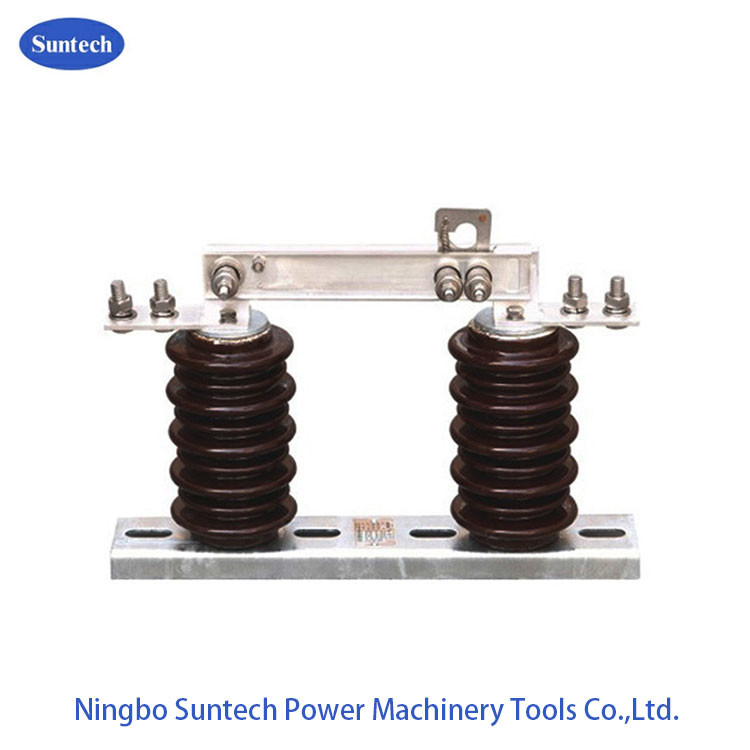

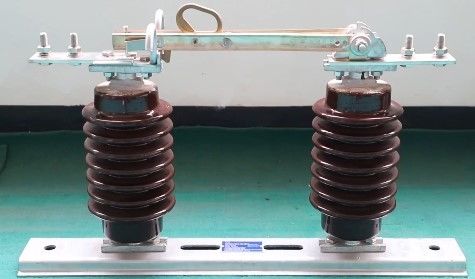

15KV 600A single phase Disconnecting Standard Type Porcelain Isolate Switch
Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.
Summary:
Outdoor disconnect switch used in 15KV, 27KV and 38KV power distribution system, with current from 200A to 630A, and it used as switching on and switch off at the voltage without load.
Technical Performance
1. Rated Voltage:15kV
2. Rated Frequency:50Hz
3. Rated Current:600A
4. Power Frequency Withstand Voltage:38kV
5. Lightning Impulse Withstand Voltage:95kV
6. Rated Short-time Withstand Current:25kA
7. Creepage Distance:360mm
Contact Person: Peter
Tel: 86-13958364836
