Aluminium Alloy Electric Cable Clamps For 35KV Overhead Power Line

Aluminium Alloy Electric Cable Clamps For 35KV Overhead Power Line

  • Aluminium Alloy Electric Cable Clamps For 35KV Overhead Power Line
  • Aluminium Alloy Electric Cable Clamps For 35KV Overhead Power Line
Aluminium Alloy Electric Cable Clamps For 35KV Overhead Power Line
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001
Model Number: NLL
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Get newest price
Packaging Details: Exported Wooden Cases and containers
Delivery Time: 20-30days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 days after payment
Contact Now
Detailed Product Description
Material: Aluminium Alloy Feature: High-strength Aluminium Alloy
Application: Aerial Line Up To 35KV Treatment: Galvanised
High Light:

Aluminium Alloy Overhead Power Line Accessories

,

35KV Power Line Electric Cable Clamps

,

35KV Power Line Accessories

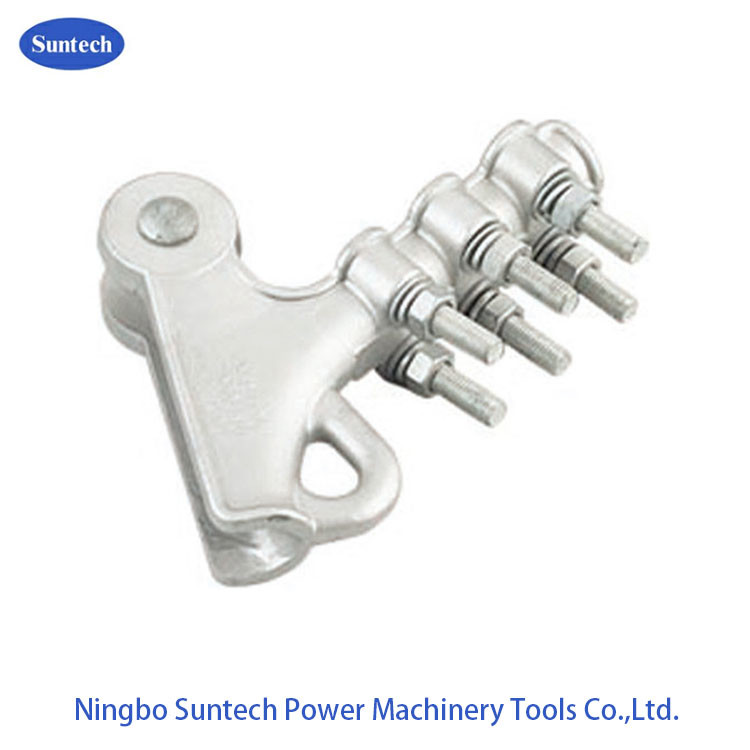

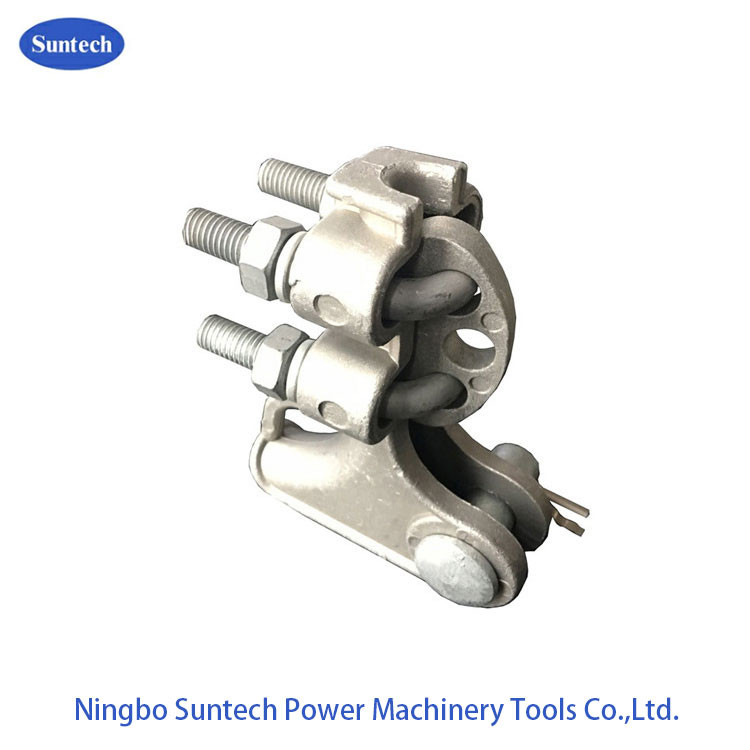

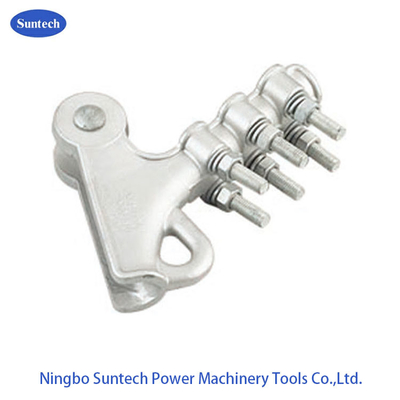

NLL Aluminium Alloy Overhead Power Line Accessories Electric Handle Cable Clamps



Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.



SUNTECH has been thrived on supplying the products according to the international standard such as 61952,IEC 61109,IEC 60099-4,IEC 60282-2,etc.With scientific administration,professional engineers,highly trained technicians and skilled workers,SUNTECH is capable to produce more than 2 million units of the main electics in best quality annually,almost all of its products have been made for overseas markets and well sold to USA,South Africa,Vietnam,Korea,South America,South Asia etc.Over 50 countries worldwide.Some of its products have already been granted IEC certificates and have won high reputation around world market.



In order to meet new challenge and satisfy increased customers’ demand on our products and quality,SUNTECH will consistenly keep on updating and developing more products for new and old clients. We are looking forward to your mutual cooperation and support as usual.



Model Cable Diameter (mm) Norminal Failure Load (KN) U-Bolt Number U-Bolt Size
NLL-1 5.0-10.0 40 2 M12
NLL-2 10.1-14.0 40 2 M12
NLL-3 14.1-18.0 70 3 M14
NLL-4 18.1-23.0 90 3 M14
NLL-5 23.1-29.0 100 4 M16



Application

NLL series aluminium alloy strain clamp (Bolt type) is suitable for aerial line up to 35KV, fixing aluminium wire or steel core minium wire on the strain pole, aerial insulation aluminium conductor and insulation aluminium cover are being used together action is insulation protection .



Feature
  • The body is made of high-strength aluminium alloy
  • Smooth surface long servile life
  • Easy installation
  • No waste electric energy

Insulation Cover

Performance Feature

  • Withstand voltage: >=18KV keep voltage one minute not break down .
  • Insulation resistance : >1.0x10
  • Environments temperature : -30℃-90℃
  • Weather proof performance : Have good performanced after 1008 hours artifica climate aging test
  • Arc surface design,apply to connection with the same(different )diameter wide connection scope(0.75mm2-400mm2)



Aluminium Alloy Electric Cable Clamps For 35KV Overhead Power Line 0
