Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO9001 |
Model Number: | Strain Clamp |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Wooden Cases |
Delivery Time: | 20-25 days after payment |
Payment Terms: | L/C, T/T, |
Supply Ability: | 50000pcs per month |
Productor Name: | Alloy Bolt Type Strain Clamp | Material: | Aluminium Alloy |
---|---|---|---|
Application: | High And Low Voltage | Color: | Silver |
High Light: | 220KV Overhead Line Strain Clamp,Bolt Type Strain Clamp,220KV Overhead Power Line Parts |

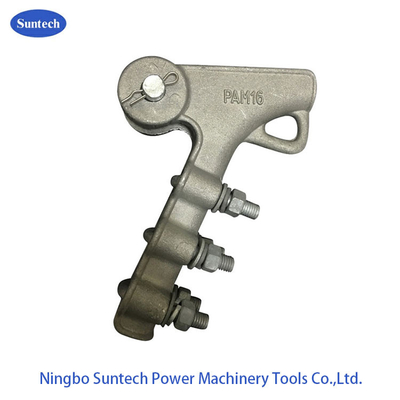

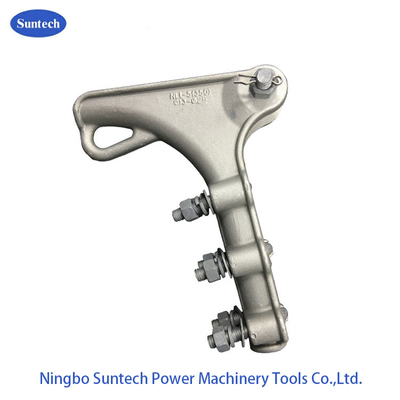

Tranmission Line NLL Series Aluminium Alloy Bolt Type Strain Clamp
Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.
As well, Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Catalog No | Applicable Conductor | C | D | U Bolt | Specified Failure Load | Weight |
(mm2) | KN | KG | ||||
NLL-1 | 5.1-10.0 | 18 | 16 | 2 x M12 | 20 | 0.9 |
NLL-2 | 10.0-14.0 | 18 | 16 | 2 x M12 | 40 | 1.1 |
NLL-3 | 14.0-18.0 | 27 | 16 | 3 x M14 | 70 | 2.2 |
NLL-4 | 18.0-23.0 | 30 | 18 | 3 x M14 | 90 | 2.8 |
NLL-5 | 23.0-29.0 | 36 | 22 | 3 x M16 | 120 | 6.5 |
Note: NLL Series are suitable for aerial line up to 220KV, fixing aluminium wire or steel core aluminium wire on the stain pole.
Contact Person: Peter
Tel: 86-13958364836
