Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO9001 |
Model Number: | pin insulator |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Wooden Cases Or Containers |
Delivery Time: | 25-30 days after payment |
Payment Terms: | L/C, T/T, |
Supply Ability: | 60000pcs per month |
Type: | Insulator | Application: | Transmission Line |
---|---|---|---|
Rate Voltage: | 11kv-36kv | Tensile Strength:: | 10kN |
Material: | Porcelain | Name: | Porcelain Insulator |
High Light: | 10KN Transmission Line Insulator,36KV Ceramic Transmission Line Insulator,10KN Medium Voltage Line Insulator |

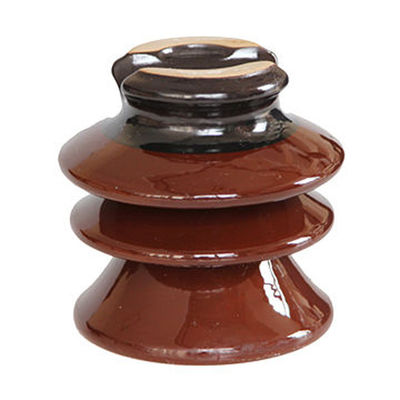

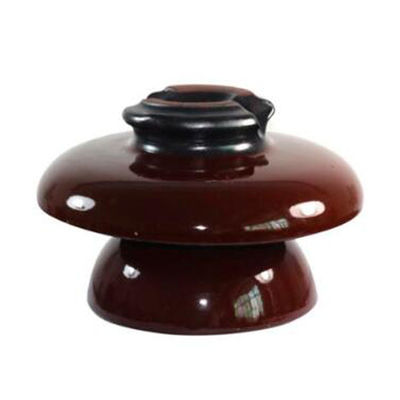

Medium High Voltage Electrical Line Ceramic Pin Post Insulators
Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.
SUNTECH has been thrived on supplying the products according to the international standard such as 61952,IEC 61109,IEC 60099-4,IEC 60282-2,etc.With scientific administration,professional engineers,highly trained technicians and skilled workers,SUNTECH is capable to produce more than 2 million units of the main electics in best quality annually,almost all of its products have been made for overseas markets and well sold to USA,South Africa,Vietnam,Korea,South America,South Asia etc.Over 50 countries worldwide.Some of its products have already been granted IEC certificates and have won high reputation around world market.
Port:Ningbo Port, Shanghai Port
Quantity(Pieces) | 1 - 200 | 201 - 2000 | >2000 |
Est. Time(days) | 45 | 50 | To be negotiated |
The composite insulator is a composite structure insulator composed of organic silicon rubber synthetic materials, which is mainly composed of hardware, umbrella skirt sheath, core rod, bonding layer and equalizing ring. The umbrella cover made of silicone rubber material is used to ensure the external insulation of the product, and the high-strength epoxy lead rod provides internal insulation of the product and bears the mechanical load. This kind of composite insulator is used to support and fix the bus bar and the live conductor. The specially designed umbrella skirt is used to increase the creepage distance, so that there is sufficient distance and insulation between the live conductor or between the conductor and the earth. It is in the transmission line It plays a major role in ensuring the use and operating life of the entire line. The company’s composite insulators adopt a new process of integral moulding of high-quality silicone rubber umbrella sleeves and integral crimping of core rods and hardware ends. It has superior mechanical properties, good pollution flashover resistance, excellent electrical corrosion resistance, and good aging resistance. High operating efficiency, light weight, and high reliability.
