Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | pin insulator |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Wooden Case |
Delivery Time: | 25-30 days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50000pcs per month |
Type: | Insulator | Material: | Porcelain / Ceramic |
---|---|---|---|
Usage: | Transmission Line Power | Rate Voltage: | 33KV |
Tensile Strength:: | 10kN | Application: | High Voltage |
High Light: | P-33-Y Transmission Line Insulator,33KV Transmission Line Insulator,P-33-Y Power Line Ceramic Insulators |

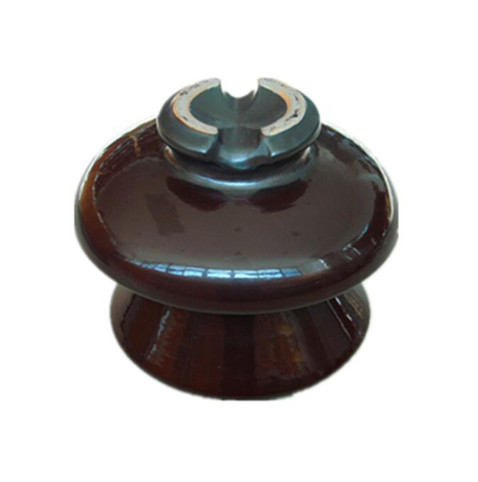

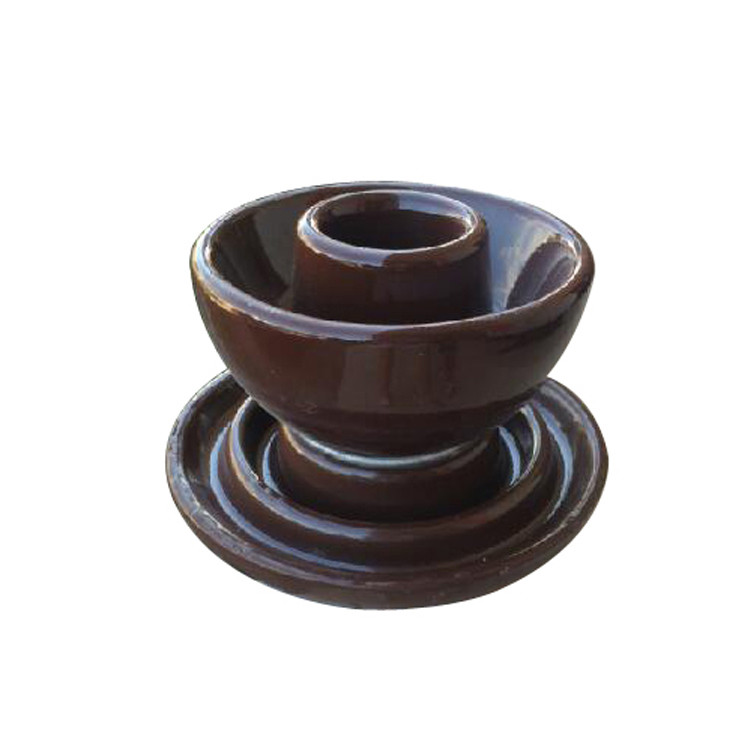

High Voltage Electrical Ceramic P-33-Y Pin Post Insulator
Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.
SUNTECH has been thrived on supplying the products according to the international standard such as 61952,IEC 61109,IEC 60099-4,IEC 60282-2,etc.With scientific administration,professional engineers,highly trained technicians and skilled workers,SUNTECH is capable to produce more than 2 million units of the main electics in best quality annually,almost all of its products have been made for overseas markets and well sold to USA,South Africa,Vietnam,Korea,South America,South Asia etc.Over 50 countries worldwide.Some of its products have already been granted IEC certificates and have won high reputation around world market.
Technical Data
Type: P-33-Y
Standard Applied: IEC 383-1
Main Dimensions D: 283mm
H:205mm
Creepage distance: 580mm
Flashover Voltage 1 min. Power Frequency, Dry: 110KV
Flashover Voltage 1 min. Power Frequency, Wet: 85KV
Withstand Voltage 1min. Power Frequency, Dry:100KV
Withstand Voltage 1min. Power Frequency, Wet:80KV
Cantilever Strength (Min.) 10KN
Power Frequency Puncture Voltage: 200KV
Material: Porcelain
