Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO AND CE |
Model Number: | SLE |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Get the lastest price |
Packaging Details: | Exported Packages |
Delivery Time: | 2-5 workdays after deposit |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100pcs per day |
Product Name: | Cable Mesh Sock Grip | Suit: | OPGW, ADSS |
---|---|---|---|
Load: | 15kn | Model: | SLE |
Length: | 1.4m | Usage: | OPGW Site |
High Light: | 15kN Optical Fiber Cable Tools,ADSS Optical Fiber Cable Tools,1.4m Length OPGW Stringing Tools |

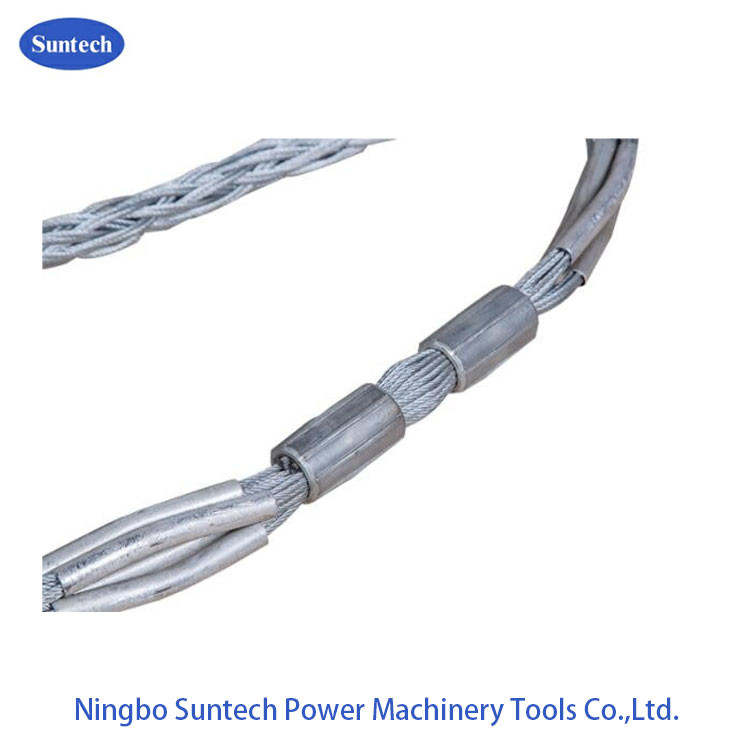

Optical Fiber Cable Mesh Socket , OPGEW Cable Pulling Gripper Cable Mesh Sock
Cable Mesh Sock Grip Technical Data
Optical Fiber Cable Mesh Socket , OPGEW Cable Pulling Gripper Cable Mesh Sock
OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable
Item number | Model | Applicable groud wire diameter(mm) | Load(kN) | |
17141 | 17141s | SLE(S)-1 | 7-11 | 10 |
17142 | 17142s | SLE(S)-1.5 | 11-15 | 15 |
17143 | 17143s | SLE(S)-2 | 15-18 | 20 |
17144 | 17144s | SLE(S)-2.5 | 18-22 | 25 |
Applicable cable mm | Rated load (kN) | Length (m) |
φ10~25 | 10 | 2 |
(uses :to ADSS .OPGW construction)
Item Number | Model | Diameter of Suitable Cable (mm) | Rated Load (kN) |
21361 | SLW16 | Φ12~16 | 8 |
21362 | SLW20 | Φ16~20 | 10 |
21363 | SLW25 | Φ20~25 | 12 |
21364 | SLW37 | Φ25~37 | 18 |
21365 | SLW50 | Φ37~50 | 28 |
21366 | SLW60 | Φ50~60 | 15 |
21367 | SLW80 | Φ60~80 | 20 |
21368 | SLW100 | Φ80~100 | 25 |
21369 | SLW120 | Φ100~120 | 30 |
21370 | SLW150 | Φ120~150 | 30 |
OPGW Construction Mecsh Cable Sock Grips Application
This mesh cable gripper is used for the construction of APGW and ADSS,ADSS means all-dielectric self-suppoting optical fiber cable, OPGW refers to the optical power ground wire.
Operation Method:

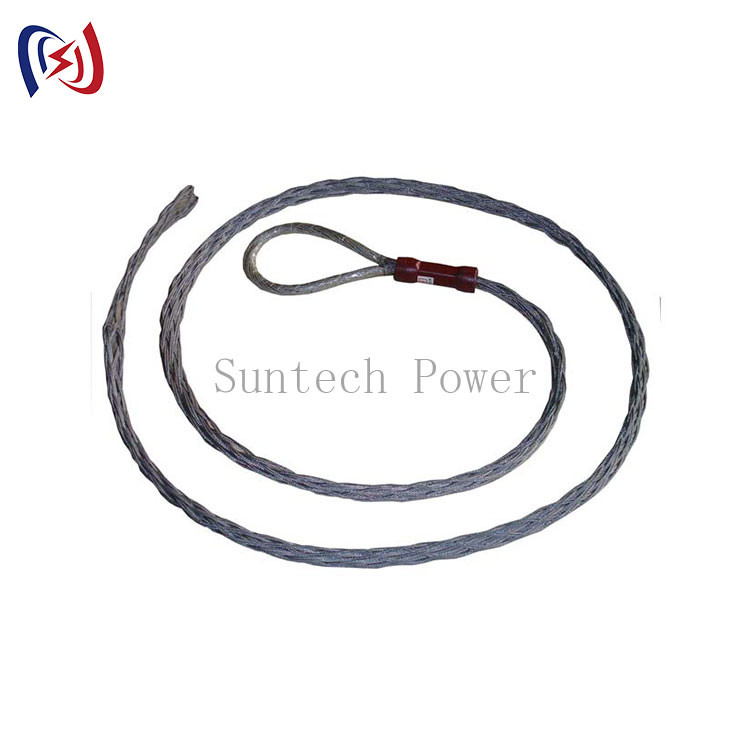

OPGW Construction Mesh Cable Sock Grips Single Thimble Cable Mesh Sock Grip
1. Start the lacing from the eye end or anchoring end of the cable grip.
2.Thread the lace from through the first two loops of the split and pull.
3. Don not pull the lace too tight at this stage, leave a space between adjoin-ing loop roughly equal to the width.
4. As you continue the length, pull the open side of the grip, as wide apart as required.
5. Try to achieve an even and net lace-up as this assists with the strength of the grip when pulling.
6. Finally tie the end of the lace, once or twice round the end of the grip, twisting the end together securely, Excess lace can be cut off.
Wire rope cable grip for following outdoor cable;
1, Telecom cable
2, Fiber cable
3, Coaxial cable
4, Feeder cable
5, Hybrid cable
6, Corrugated cable
7, Smooth cable
8, Braid cable
