| Product Name: | Cable Blower Set | Maximum Oil Pressure (MPa): | 5 |
|---|---|---|---|
| Hydraulic Oil Flow (L/min): | 10 | Gasoline Engine (HP/rpm): | 6/1800 |
| Length Of Rubber Hose (m): | 5 | Site: | Telecom Cable |
| High Light: | 700N Fiber Optic Cable Blowing Machine,80m/min Fiber Optic Cable Blowing Machine,Telecom OFC Blowing Machine |
||

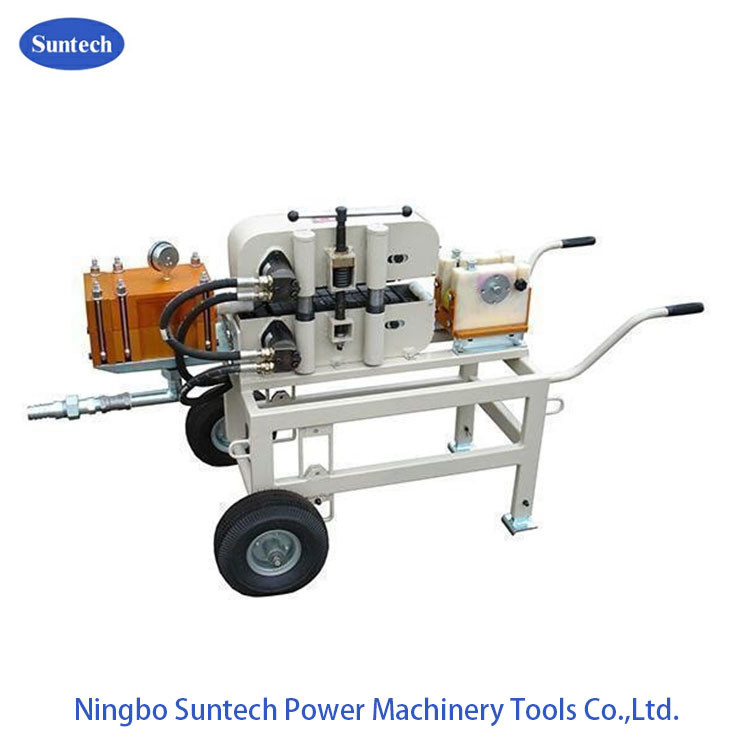

Cable Blower Set Optical Fiber Cable Blowing Machine CLJ60S For Telecom
This CLJ60S cable blower set possesses the item number of 20401. It is extensively used for the construction of long-distance communication cable.
For blowing once, the length of cable generally ranges from 1000 to 2000 meters.

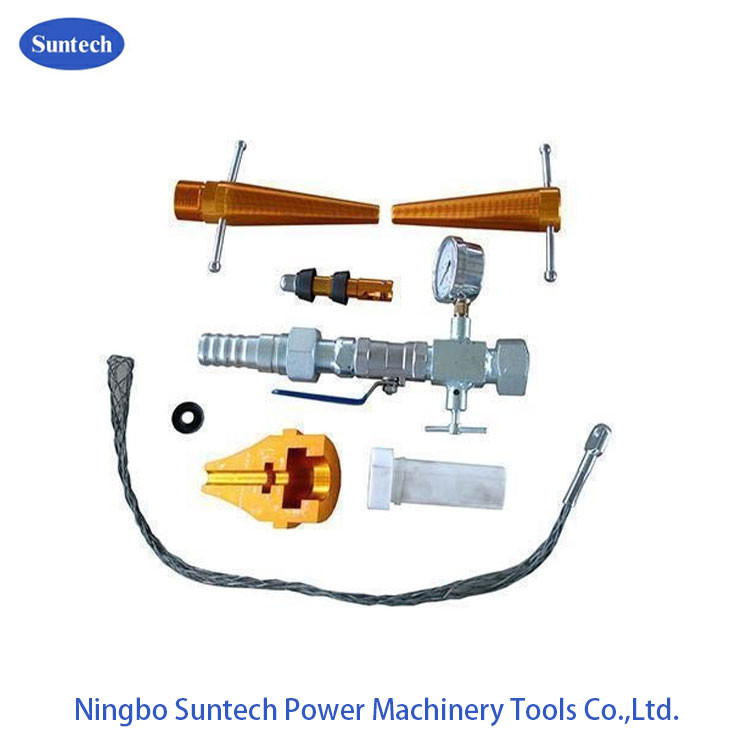

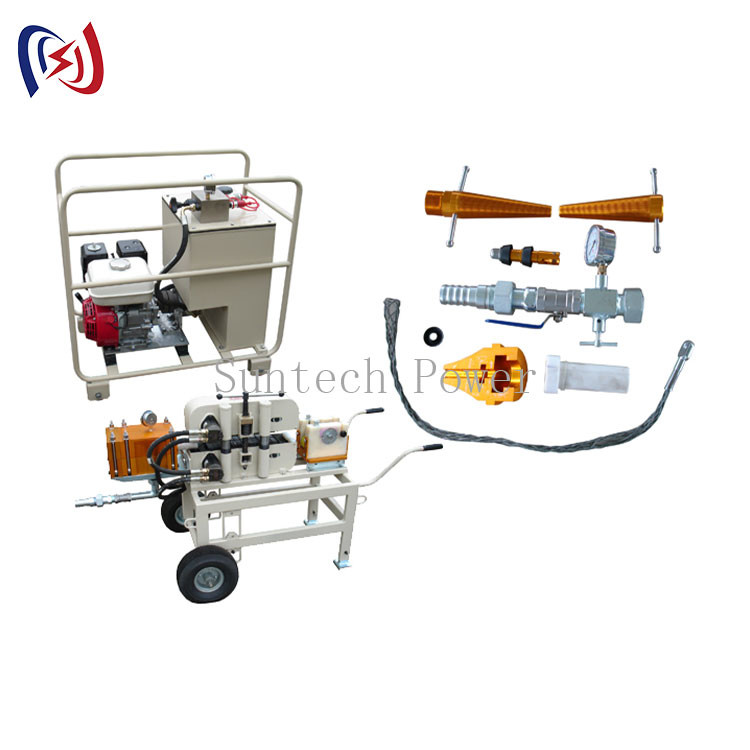

The complete set is mainly composed of the cable blower, hydraulic pump station, airproof piston, cable seal ring, the sealing ring for plastic pipe, and other parts.
The air compressor which provides the set with compressed air should be purchased additionally by our users.
Other basic configurations of our cable blower set include a set of GDJ150 pipeline sealing detection device,
as well as a set of related sealing elements according to the specification of silicon core pipe and outer diameter of cable that our clients can designate.
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.
We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All can
accept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,
and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can
customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Technical Parameter of Cable Blowing Machine
| Item Number | 20401 |
| Maximum Conveying Force (n) | 700 (consecutive adjustable ) |
| Conveyor Speed (m/min) | 8-80 (consecutive adjustable ) |
| Diameter of Applicable Cable (mm) | Φ10-24.3 |
| Diameter of Applicable Silicon Core Pipe (outer diameter /inner diameter) (mm) | Φ26/Φ32, Φ28/Φ34, Φ33/Φ40, Φ38/Φ46, Φ42/Φ50 |
| Overall Dimension (mm): | 1390× 700× 850 |
| Weight (kg) | 125 |
| Air Displacement of the Matched Air Compressor (m3/min) | Upwards of 10m3/min |
| Air Pressure of the Matched Air Compressor (MPa) | Upwards 1MPa |

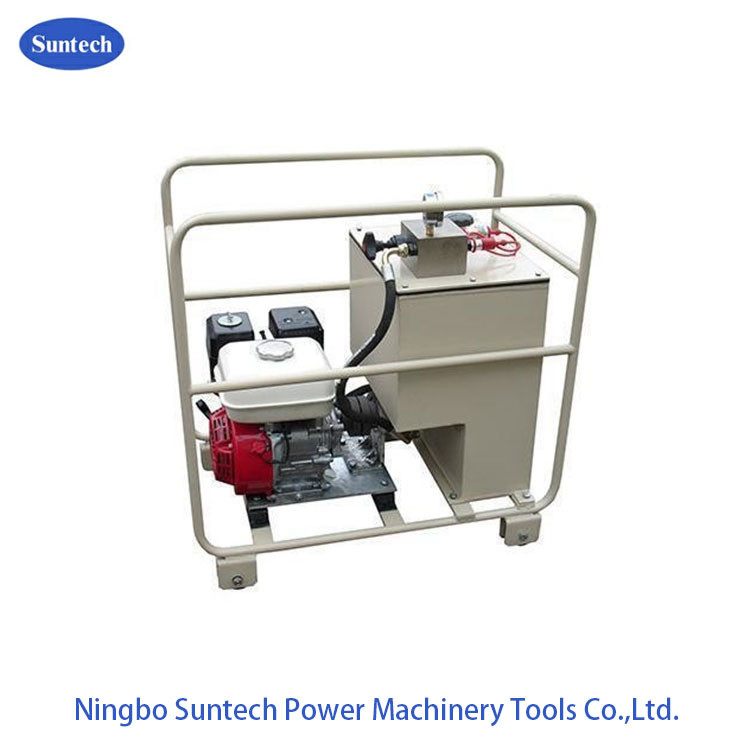

Detailed Data of Hydraulic Pump Station
| Maximum Oil Pressure (MPa) | 15 |
| Hydraulic Oil Flow (L/min) | 10 |
| Gasoline Engine (HP/rpm) | 6/1800 |
| Length of Rubber Hose (m) | 5 |
| Dimension (mm) | 780× 470× 780 |
| Weight (kg) | 87.5 |
