Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO,CE |
Model Number: | ST-350 |
Minimum Order Quantity: | 2 Sets |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Wooden Case |
Delivery Time: | 30-35 days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20000pcs per month |
Use: | Trailer Parts | Parts: | Trailer Plugs |
---|---|---|---|
Max Payload:: | 750kg | Size: | 700*260*200mm |
Wheel: | 260*50mm Solid Rubber Wheel | Bracket:: | Weld-on Or Bolt-on |
N.W.: | 11.50kg | Hardware: | U Bolt Not Included |
High Light: | 750kg Trailer Jockey Wheel,250mm Travel Trailer Jockey Wheel,750kg Payload Trailer Spare Parts |

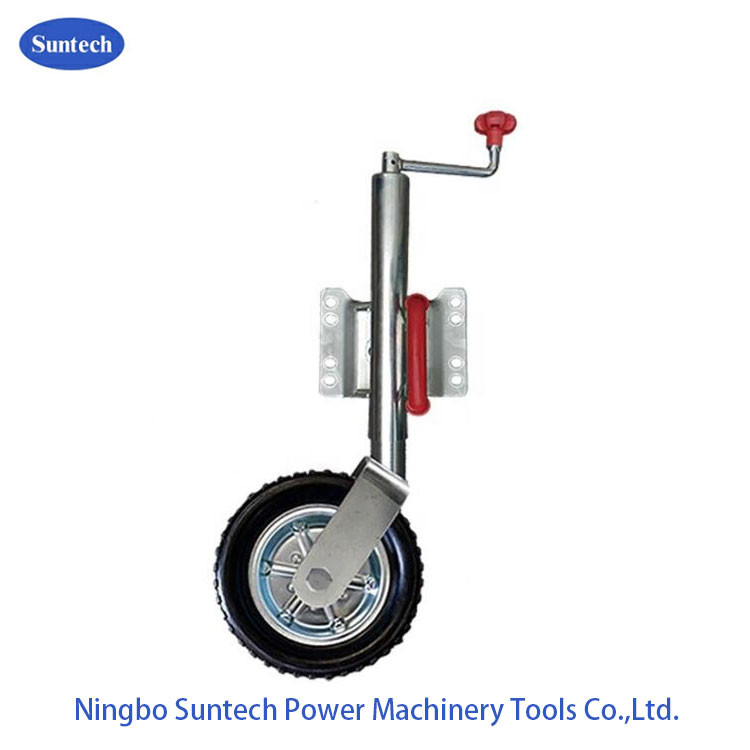

Australian type 750kg 10" Solid Steel Rim Rubber Trailer Jockey wheel
Features:
- Jockey wheel is used to lift or adjust the trailer to suit towing parts.
- Clear zinc handle has good rust resistance and suitable operation.
- The handle is fixed with jockey wheel by a Spring-pin for safety use and nice look.
- Zinc plated on both outer/ inner tube.
- Swing up style and Easy Release Handle for easy operation.

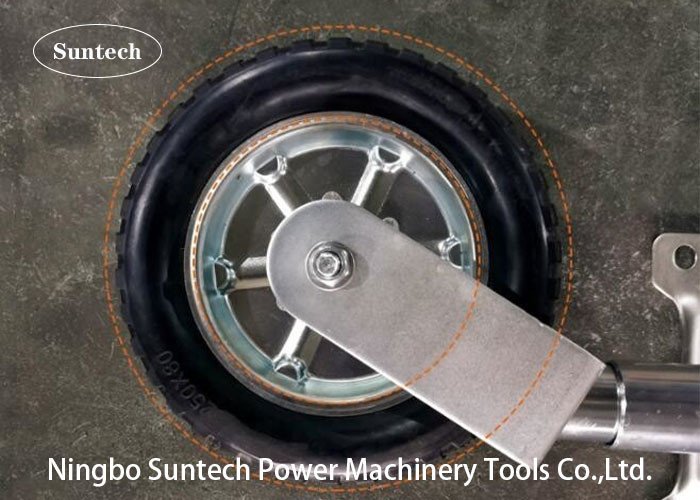

- 10" Steel Rim Solid Rubber Wheel.
Specs:
- Mounting bracket height
- Retracted 420mm
- Extended 670mm
Body height:
- Retracted 700mm
- Extended: 950mm
- Total lift: 250mm
- Outer tube dia.: Φ51mm
- Inner tube dia.: Φ43mm
- Travel: 250mm
- Handle radius: 135mm
- Lift capacity: 750kg
- Wheel dimension: 260*55mm (10x4" solid steel rim rubber wheel)
P/N | Capacity | Travel |
Out./Inn.tube size (mm) |
Bracket height |
Body height |
N.W (kg) |
Packing (Qty per crate) |
Foot (mm) |
Bracket style |
Coating |
ST350B10Z | 750kg | 250mm | Φ51 / Φ43 | 420mm | 700mm | 9.20 | 80EA per crate | 260*102 rubebr wheel | Bolt-on swivel plate | Zinc |
03) How to make sure the correct sizie of the Jack stands
Here is some important points to make sure you buy the correct size of Jack to fit your lovely Trailer or equipment.
Capacity | contain Static capcacity/ lift capacity |
Travel | the length of the Jack remove in vertical direction (or call that the lenght of the screw can move) |
Bracket height | measure from the center of the bracket to the ground(foot),should notice the retracted and extended height |
Body height | measure form the top of jack to the ground (foot),should notice the retracted and extended height |
Salt spray testing | standard requirement of anti-corrosive. the units is: hour |
Life Cycle | means how many times you can use this Jack |
