Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO,CE |
Model Number: | Pilot Rope |
Minimum Order Quantity: | 200m |
---|---|
Price: | Negotiation |
Packaging Details: | Steel Reels |
Delivery Time: | 10-15 days after payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 30000 meter per day |
Name: | Cable Wire Rope | Type: | Galvanized |
---|---|---|---|
Application: | Transmission Line Stringing | Usage: | For Transmission Line |
Diameter: | 8-30mm | Item: | Anti-twisting Braided Steel Wire Rope |
High Light: | 20mm Galvanized Wire Rope,Ungalvanized Braided Steel Pilot Rope,20mm Pilot Rope |
High Strength Galvanized Wire Rope , Ungalvanized Braided Steel Pilot Rope For Construction Site
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc
Quick details:
1. Transmission Line Stringing Accessories
2. Anti twist Galvanized Steel Wire Rope 6 Squares 12 Strands
3. Normal Diameter: 20mm
4. Breakage load: 250kN
5. Size available: 9~30mm
6. Length: 1000m

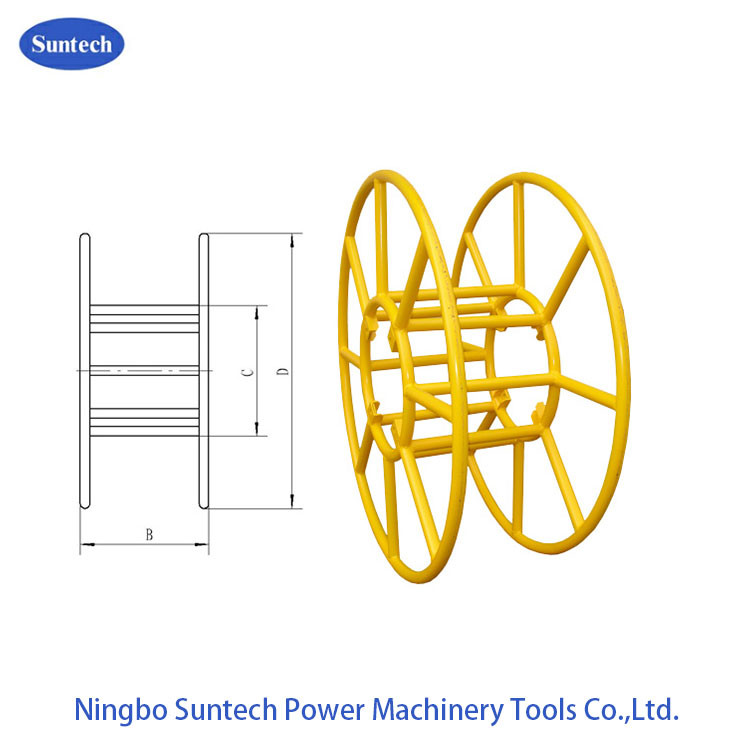

7. Reel diameter: 1400mm
Description:
Galvanized Steel Anti Twist Braid Rope / Anti Twist Wire Rope for Transmission Line Stringing
Anti twist braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
Data Sheet
Item no. | Normal Diameter (mm) | Structure | Breakage tension(kN) | Standard Length (m) |
Diameter of spool (mm) |
Total weight (kgs) |
YL9-12x19W | 9 | 12 Strands | 55 | 1000 | 850 | 294 |
YL10-12x19W | 10 | 12 Strands | 55 | 1000 | 850 | |
YL11-12x19W | 11 | 12 Strands | 80 | 1000 | 1000 | 454 |
YL13-12x19W | 13 | 12 Strands | 120 | 1000 | 1100 | 642 |
YL16-12x19W | 16 | 12 Strands | 158 | 1000 | 1250 | 886 |
YL18-12x19W | 18 | 12 Strands | 210 | 1000 | 1400 | 1154 |
YL20-12x29Fi | 20 | 12 Strands | 250 | 1000 | 1400 | 1394 |
YL22-12X29Fi | 22 | 12 Strands | 320 | 1000 | 1400 | 1258 |
YL24-12x29Fi | 24 | 12 Strands | 360 | 800 | 1440 | 1474 |
YL28-12x29Fi | 28 | 12 Strands | 480 | 500 | 1600 | |
YL30-12x29Fi | 30 | 12 Strands | 540 | 500 | 1600 | |
YL20-18x19W | 20 | 18 Strands | 300 | 1000 | 1440 | 1368 |
YL22-18X29Fi | 22 | 18 Strands | 389 | 800 | 1440 | |
YL24-18x29Fi | 24 | 18 Strands | 440 | 800 | 1440 | |
YL28-18x29Fi | 28 | 18 Strands | 580 | 500 | 1600 | 1655 |
YL30-18x29Fi | 30 | 18 Strands | 658 | 500 | 1600 | 1900 |
