Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO and CE |
| Model Number: | SHL |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Exported Cases |
| Delivery Time: | 7 days after payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000pcs per month |
| Material: | Aluminum And Nylon | Name: | Cable Pulling Roller |
|---|---|---|---|
| Range: | 150mm | Structure: | Steel Frame Supportor |
| Weight: | 3.3-8.5kg | Capacity: | 5KN |
| High Light: | Aluminum Sheave Cable Pulling Roller,Nylon Sheave Cable Pulling Roller,Shock Resistant Underground Cable Pulling Tools |
||
Straight line bridge roller, straight line roller, nylon ground roller.12KN Nylon Material Electrical Cable Pulling Tools Highly Shock Resistant

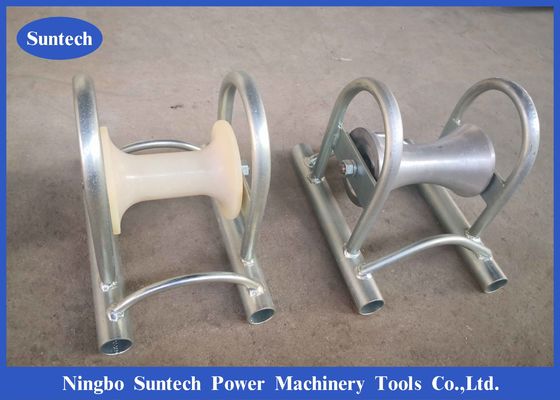

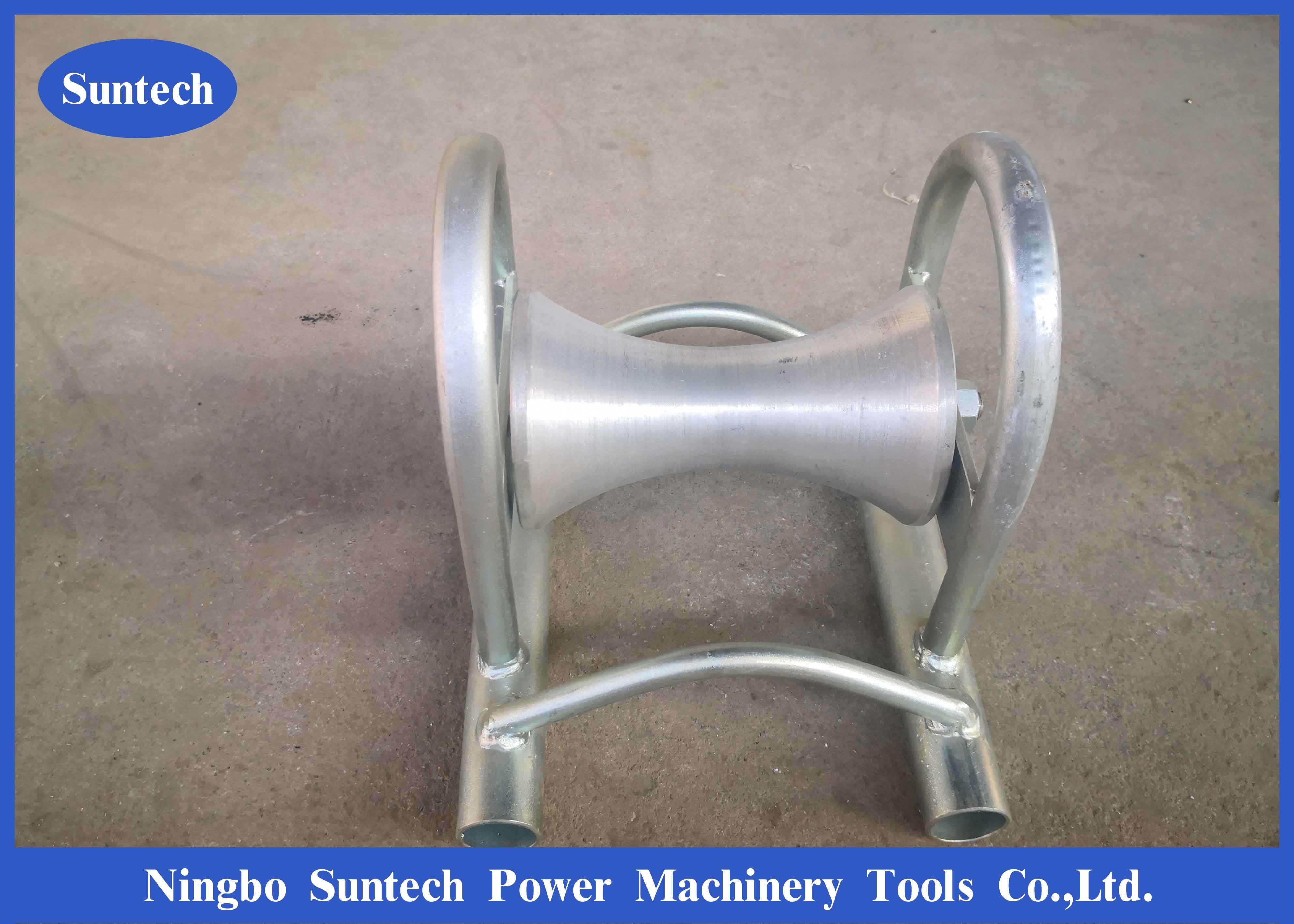

1. Ground Cable Roller, aluminium Abrasion resistant aluminium rollers, galvanized steel tube frame dust- and soil proof ball bearings,large ground clearance;
2. Ground Cable Roller, synthetic Non-aging and weatherproof, extreme light weight, highly shock-resistant
stackable, large ground clearance, for cables up to Ø 100 mm.
3. Per customer's special demands, our Plant can meet for you totally.
Technical Data
Cable Ground Roller Cable Pulley Straight Line Type Cable Pulley
| Product NO. | Type NO. | Rated Load( KN) | Range (mm) | specifications(mm) | weight(kg) |
| 80435 | SHLG-1002 | 12 | ≤Φ150 | 160*165 | 4.8 |
| 80436 | SHLG-1002N | 12 | ≤Φ150 | 160*165 | 4.5 |
| 80437 | SHLG-10021 | 12 | ≤Φ150 | 140*160 | 4.8 |
| 80438 | SHLG-10021N | 12 | ≤Φ150 | 140*160 | 4.5 |
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Contact Person: Peter
Tel: 86-13958364836
