Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Cable Pulling Rollers |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Get the lastest price |
| Packaging Details: | Exported Wooden Case |
| Delivery Time: | 7-9days after payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs per month |
| Features: | With Bearing | Product Name: | Cable Roller Wheels |
|---|---|---|---|
| Application: | Pulling Wires | Usage: | Gound Construction |
| Sizes: | 180*200mm | Material: | Nylon |
| High Light: | Pulley Block Nylon Roller Wheels,200mm Nylon Roller Wheels,ISO Nylon Cable Pulling Roller |
||

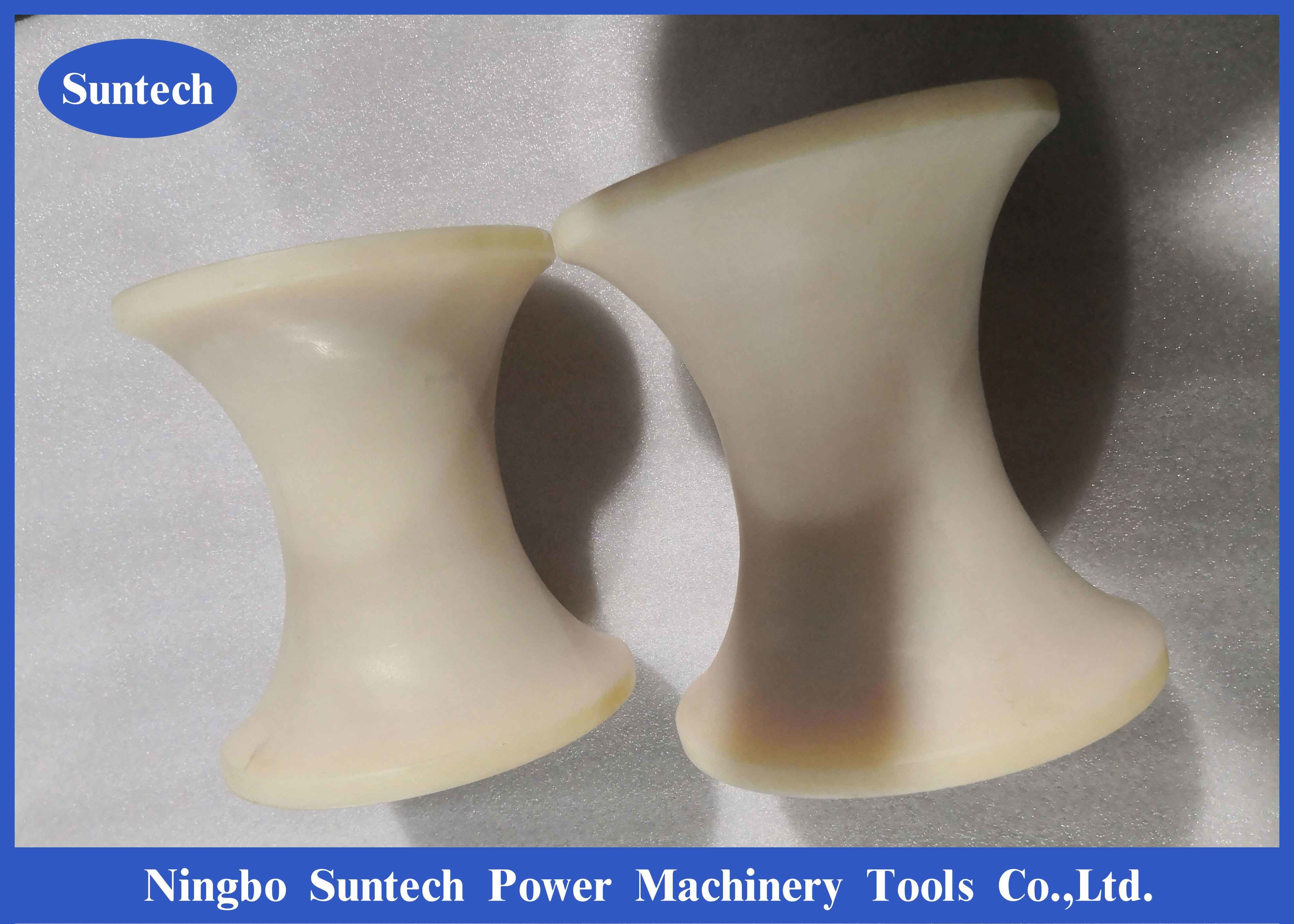

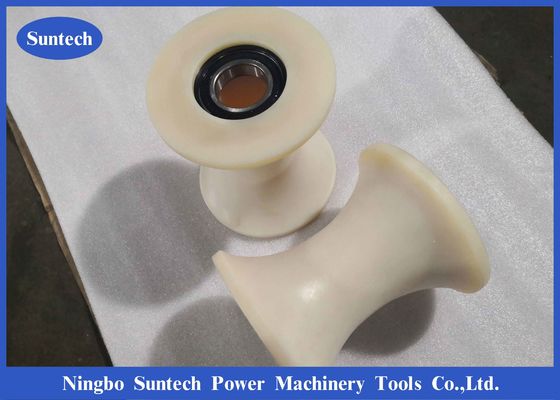

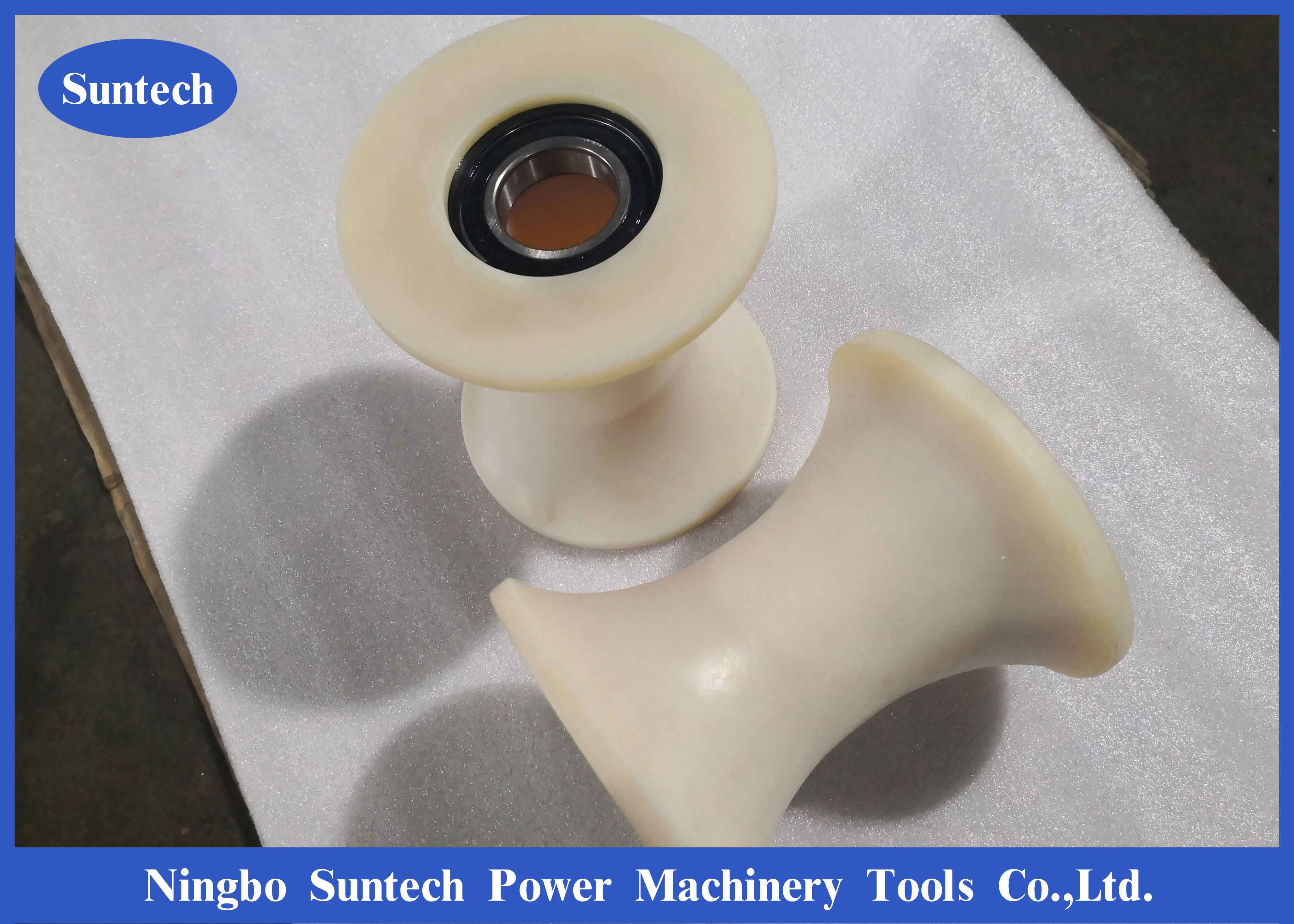

Pulling Wires Nylon Cable Roller Wheels For Pulley Block In Ground Construction
Features:
(1) Light weight: reducing dead weight at the end of a boom, which provides more greater stability and lifting capability.
(2) Improved wire rope life: self-lubricating, hardness lower than steel rope.
(3) Wear resistance: 8.8 times of steel, 8.3 times of copper.
(4) Improved the property of crane ,cable , little or non maintenance.
(5) Corrosive resistance
| Item number | Model |
Diameter(mm) |
Width(mm) |
Blank weigh(kg) |
| 10010 | 80*50 | 80 | 50 | 0.2 |
| 10011 | 120*35 | 120 | 35 | 0.3 |
| 10012 | 120*60 | 120 | 60 | 0.5 |
| 10013 | 120*80 | 120 | 80 | 0.6 |
| 10014 | 120*130 | 120 | 130 | 0.7 |
| 10015 | 120*200 | 120 | 200 | 1.2 |
| 10016 | 140*160 | 140 | 160 | 0.9 |
| 10017 | 140*210 | 140 | 210 | 1.1 |
| 10018 | 160*40 | 160 | 40 | 0.5 |
| 10019 | 160*85 | 160 | 85 | 1.1 |
| 10020 | 160*230 | 160 | 230 | 1.7 |
| 10021 | 200*40 | 200 | 40 | 0.6 |
| 10022 | 200*60 | 200 | 60 | 0.8 |
| 10023 | 200*80 | 200 | 80 | 1.0 |
| 10024 | 250*60 | 250 | 60 | 1.2 |
| 10025 | 250*80 | 250 | 80 | 1.5 |
| 10026 | 270*60 | 270 | 60 | 1.6 |
| 10027 | 320*60 | 320 | 60 | 1.9 |
| 10028 | 320*80 | 320 | 80 | 2.2 |
| 10029 | 408*80 | 408 | 80 | 4.1 |
| 10030 | 408*100 | 408 | 100 | 4.8 |
| 10031 | 408*120 | 408 | 120 | 5.8 |
| 10050 | 508*75 | 508 | 75 | 6.0 |
| 10051 | 508*100 | 508 | 100 | 7.0 |
| 10052 | 660*100 | 660 | 100 | 10.0 |
| 10053 | 660*110 | 660 | 110 | 12.5 |
| 10054 | 750*110 | 750 | 110 | 15.0 |
| 10055 | 822*110 | 822 | 110 | 18.0 |
| 10056 | 916*110 | 916 | 110 | 22.0 |
| 10057 | 916*125 | 916 | 125 | 25.0 |
| 10058 | 1040*125 | 1040 | 125 | 32.0 |
| 10059 | 1160*150 | 1160 | 150 | 41.0 |
| 10060 | 1160*130 | 1160 | 130 | 39.0 |
