| Name: | Ground Anchor | Material: | Steel |
|---|---|---|---|
| Capacity: | 5T | Color: | Red Or Others |
| Valid Length: | 1.8m | Weight: | 30kg |
| High Light: | Power Line Traction Construction Ground Anchor,Tower Erection Construction Ground Anchor,5T Steel Ground Anchor |
||
Construction Power Line Traction Lifting Floor Ground Anchor Tower Erection Tools
Application

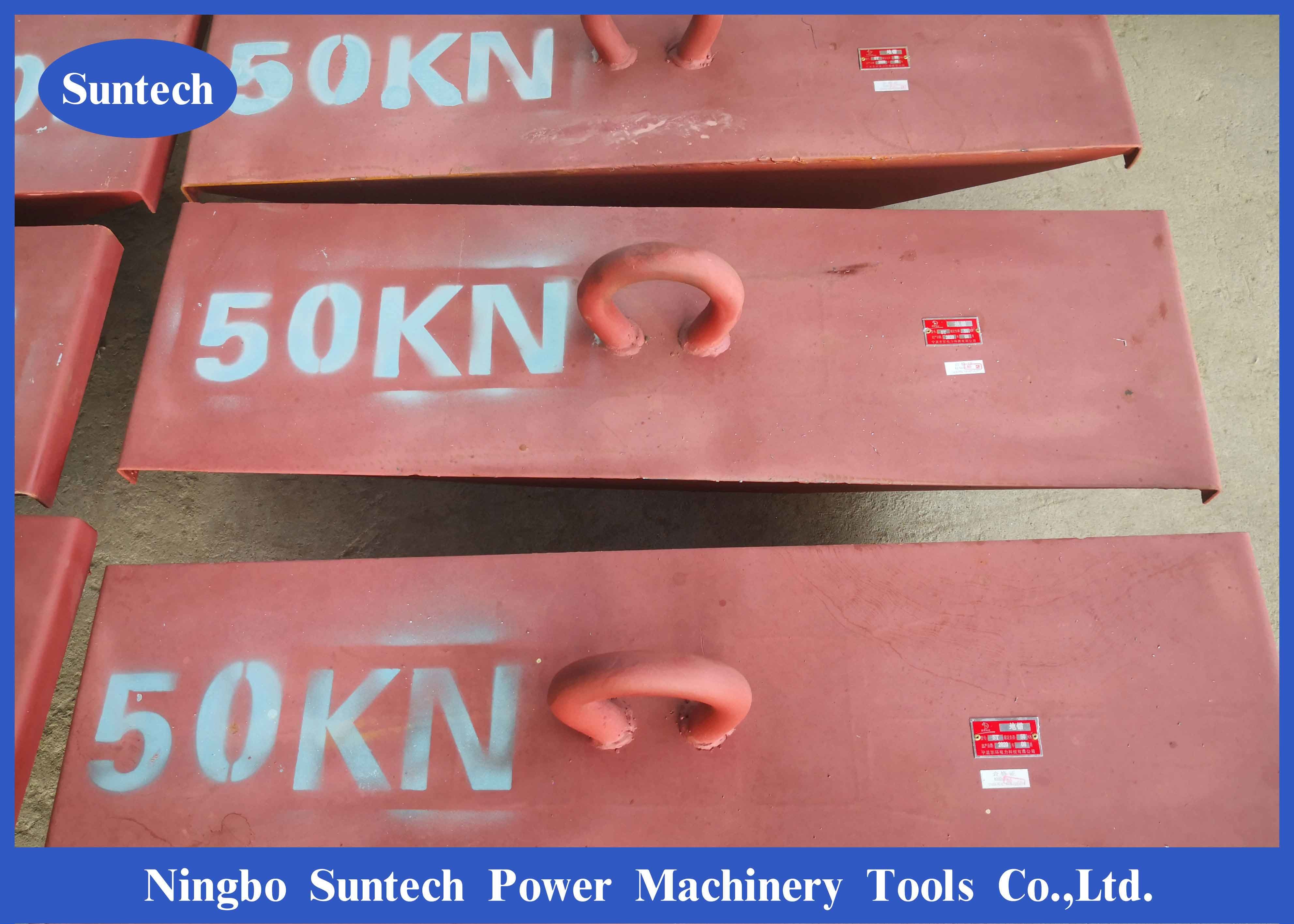

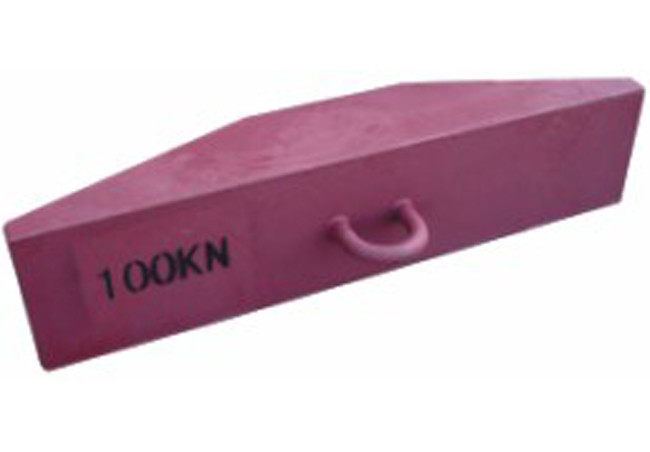

This ground anchor is applied to fixing and fastening the winches, conductor pullers, conductor tensioners, blocks and temporary pulling ropes in line construction. The anchor is of welded structure of steel plate with corrosion-resistant primer on its surface, and it is durable in its quality. Bury the anchor under the ground in appropriate depth and make it well tamped, lead the steel rope which fixed on it to its direction upon the ground.
Usage
Excavate ground anchors pit according to the required depth. Put the anchor in the ground anchors pit.Anchor the anchor rope and the ground anchor,and oblique to the elicitation. When the fill is tamped,it can be used.
| Item number | Model | Allowable | Valid depth(m) | Main size(mm) | Weight(kg) | |||
| pull(KN) | A | B | C | d | ||||
| 2120 | SDM3 | 30 | 1.8 | 800 | 250 | 150 | Φ25 | 22.5 |
| 2121 | SDM5 | 50 | 1.8 | 900 | 270 | 180 | Φ28 | 30 |
| 2122 | SDM10 | 100 | 2 | 1200 | 290 | 220 | Φ36 | 55 |
| 2123 | SDM16 | 160 | 2.5 | 1500 | 500 | 258 | / | 105 |
