Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO,CE |
Model Number: | LS |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Containers |
Delivery Time: | 5-7days after payment |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 300pcs per month |
Name: | 12 T Cable Reel Trailer | Using: | Cable Laying |
---|---|---|---|
Load: | 3 ~ 12T | Color: | Red , Green , Yellow |
Size: | Customized | Apply: | Power Construction |
High Light: | 12T Bearing Capacity Cable Drum Trailer,ISO Customized Cable Drum Trailer,3000KG Green Cable Reel Trailer |

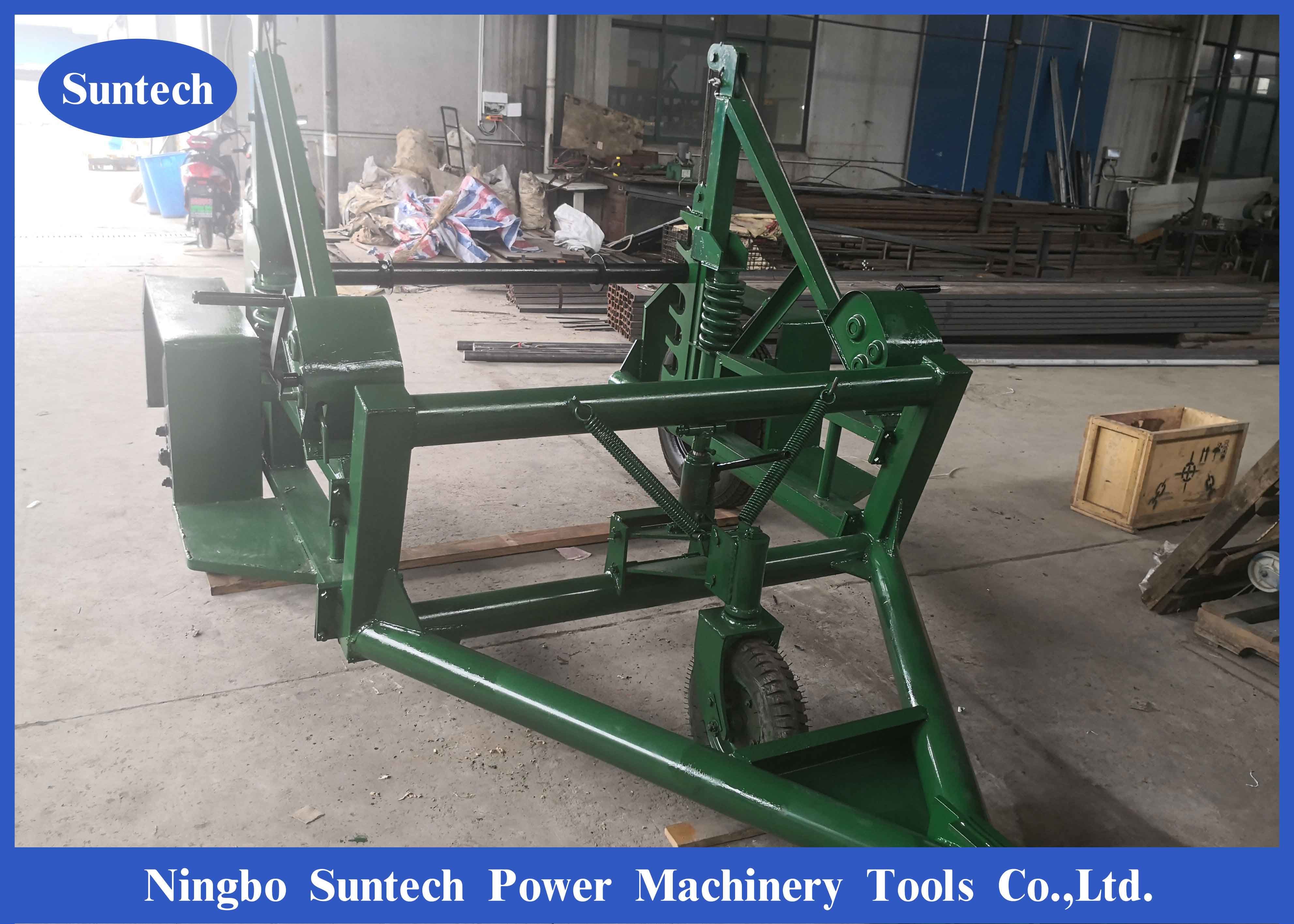

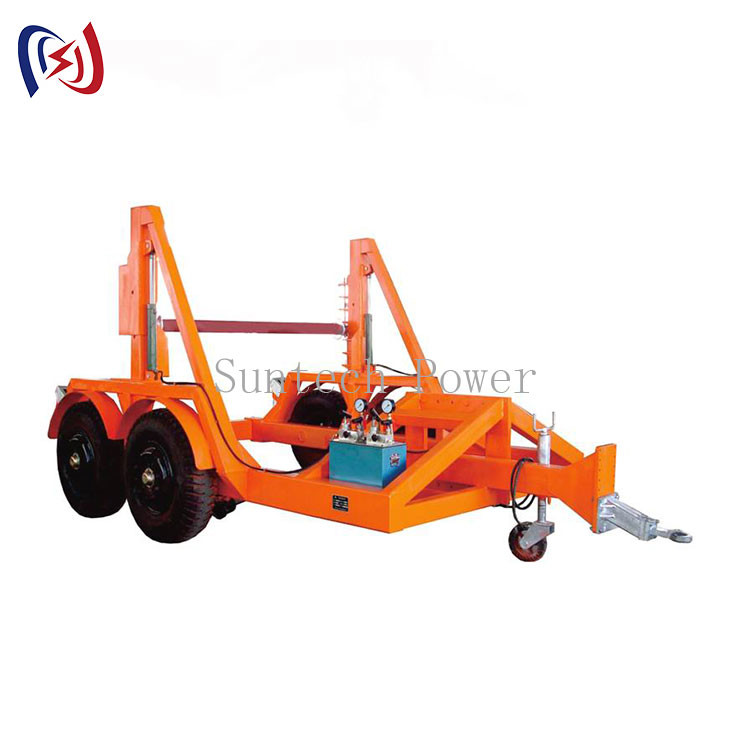

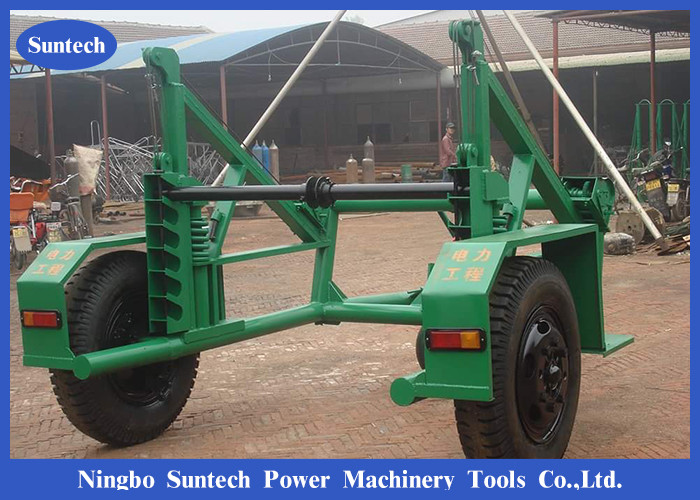

Customized Cable Drum Trailer , High Load Bearing Capacity Cable Reel Trailer
12 Ton Cable Drum Carrier, Cable Reel Trailer With Axis Bar for Cable Laying
Model | Rated Load | Weight(kg) | Applicable coil diameter(mm) | Applicable coil width(mm) | Overall dimensions(mm) |
LS-12T | 12T | 3000 | ≤3500 | ≤1850 | 4300×3400×2800 |
Usage:
Artificial rock winch to a minimum so that the rear position in the loading and unloading, the axis of the bar penetration reels (I plant to configure the axis bar), the draw cable trailer rear axle bar insurers will advance after a card. Down Insurance (steel fiber), the left and right of a person shaking stable machine handle (handle force 15 kg per capita) so that the wire coil rises by moving stable machine with automatic brake to ensure construction safety.
Consignment Method:
The front end of the trailer there is a cable connection can be directly connected to car ownership, so checked behind tractor.
Feature:
Mechanical gear technology, the use of more light.
Cable drum trailer, cable reel trailer,Technical Data:
Model | Max Load | Weight | Max Lifting Height | Inside Wide | length | Wide | High |
(T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
LS-3T | 3 | 600 | 1550 | 1400 | 3700 | 2200 | 1800 |
LS -5T | 5 | 900 | 1750 | 1650 | 4000 | 2700 | 2180 |
LS -8T | 8 | 1200 | 1900 | 1950 | 4200 | 3200 | 2300 |
LS -10T | 10 | 1500 | 2000 | 2000 | 4300 | 3400 | 2400 |
LS -12T | 12 | 2600 | 2000 | 2000 | 4300 | 3400 | 2400 |
Cable Drum Trailer Advantage:
1. Able to carry high loads
2. Take First-Class Quality as Target and First-class Service.
3. With a high load-bearing capacity
4. As Responsibility, To Succeed By Scientific Management.
5. Stable performance and durable
6. Customer in Heart, Quality in Hand, Technology in the Lead
