Ground Pulling Cable Laying Roller R55 for Well Edge Manhole

Ground Pulling Cable Laying Roller R55 for Well Edge Manhole

  • Ground Pulling Cable Laying Roller R55 for Well Edge Manhole
Ground Pulling Cable Laying Roller R55 for Well Edge Manhole
Product Details:
Place of Origin: Ningbo China
Brand Name: Suntech
Certification: ISO and CE
Model Number: SHH1N Nylon or Steel
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get the lastest price
Packaging Details: Exported Wooden Boxes and pallets
Delivery Time: In Stock
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Name: Well Cable Roller Apply: Cable Pulling Ground
Item: 21282 Wheel Size: 160*80mm
Bottom Size: 110mm Weight: 6.2kg
High Light:

Ground Pulling Cable Laying Roller

,

Well Edge Cable Laying Roller

,

R55 Cable Pulling Roller

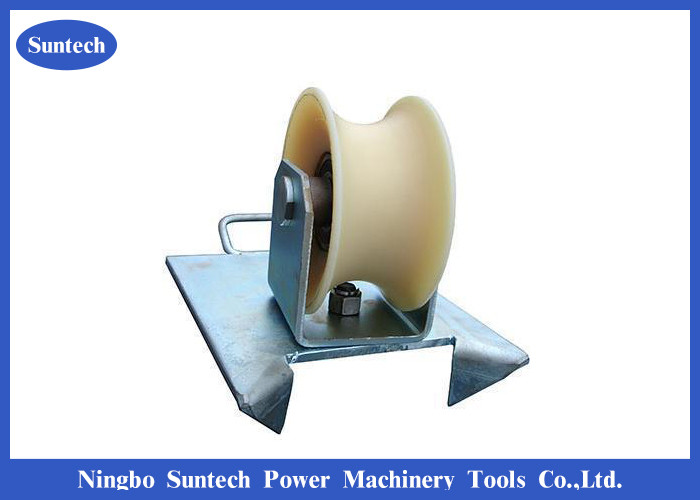

Ground Cable Laying Roller, Well Edge Manhole Cable Pulley Tools For Pulling



Pithead roller, steel plate cable roller,Edge mount manhole lead in cable roller, it is used to protect the cable (Maximum diameter 120mm) and pulling th erope. Leaning against the side of pithead directly while using.

The frame can be paint spraying or highlg galvanzied, roller can be alumium or nylon roller, if you have some questions on the roller sizes, you can let us know, we have more specificaiton in Plant, in the roller has the veryy smooth bearing ,which can make the whole set durable, and keep the long lift time application, to reduce the friction while pulling the rope in the best situation.



Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.



Technical Data Edge Mount Manhole Lead In Cable Roller,Pithead Roller With Nylon Wheel:
Model SHH1L,SHH1N, is made of aluminum and nylom, R55 radius of curvature, weight light.
Product NO. 80463 80464
Model NO. SHH1L SHH1N
Wheel Aluminum Nylon
Radius of curvature (mm) R55 R55
Weight (kg) 5.8 4.8



Ground Pulling Cable Laying Roller R55 for Well Edge Manhole 0
