Place of Origin: | Ningbo China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | QHS |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Get the newest price |
Packaging Details: | Exported Wooden Case |
Delivery Time: | 7 days after deposit |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 900 sets per month |
Name: | Hoisting Block | Type: | Dual-sheave |
---|---|---|---|
Feature: | Both Side Opening | Load Rated: | 5T |
Rope Dia: | <=15.5mm | Warranty: | One Year |
High Light: | dual sheave hoist pulley block and tackle,50kn hoist pulley block and tackle,hoist pulley block and tackle 50kn |

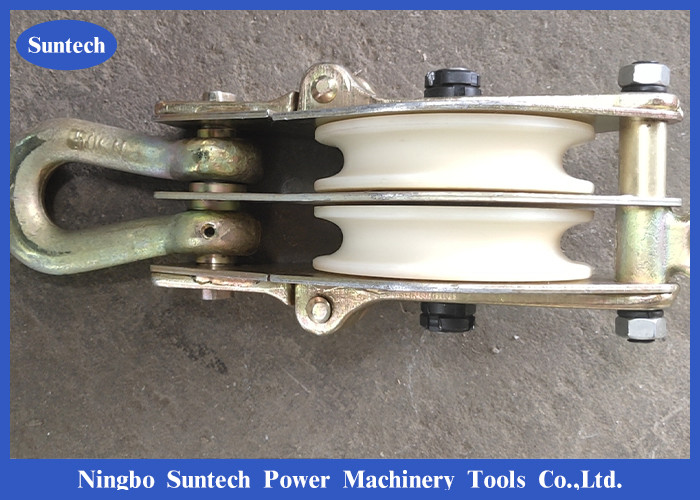

QHS Model 50KN Dual-Sheave Hoisting Tackle with Both Side Opening Iron Hoisitng Block
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,
inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,ect.
Hoisting Tackle(Both Side Opening With Dual-Sheave)
Item number | Model | Rated load (kN) |
(MM) Roller Dia×width |
Rope Diameter (mm) |
Weight (kg) |
11281 | QHS2-3 | 30 | Φ120×35 | ≤Φ10 | 6.3 |
11282 | QHS2-5 | 50 | Φ150×39 | ≤Φ11 | 11.0 |
11283 | QHS2-8 | 80 | Φ166×40 | ≤Φ13 | 16.0 |
11284 | QHS2-10 | 100 | Φ166×40 | ≤Φ13 | 18.0 |
Quick Information:
1. Suntech Brand
2. 50KN rated load
3. Model QHS2-5
4. Type Both side opening Sheave
5. Suitable for <=11mm steel wire rope
6. Diameter roller is 150*39mm
Double Sheave Hoisitng Tackle Configuration:
User:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.

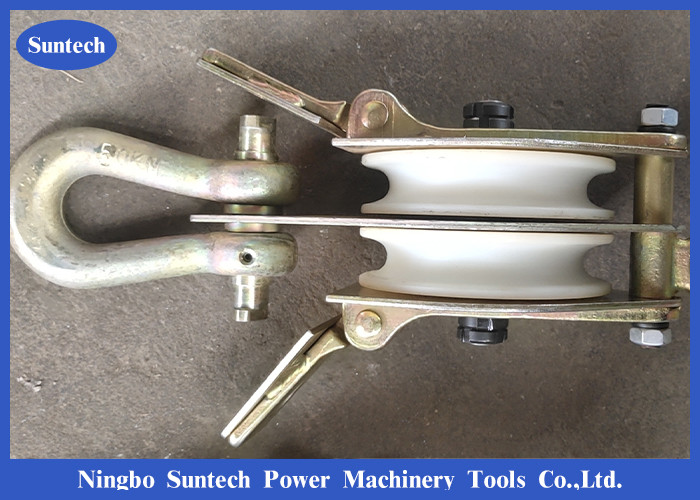

Features:Loading and unloading steel wire rope conveniently with double side opening.
Specification:Hook or ring type is need indicated when customer place order.
